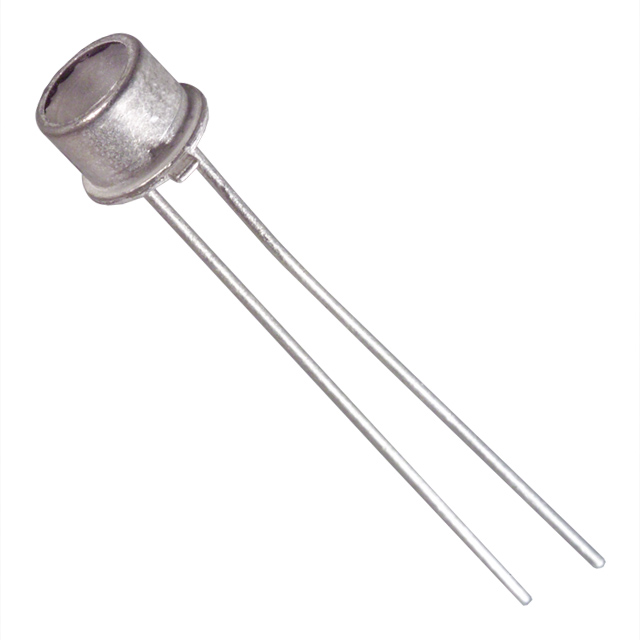

The F5E series are 880nm LEDs in a wide angle, TO-46 package.
F5E2 Maximum Ratings
Parameter
Symbol
Rating
Unit
Operating Temperature
TOPR
-65 to +125
°C
Storage Temperature
TSTG
-65 to +150
°C
Soldering Temperature (Iron)(3,4,5 and 6)
TSOL-I
240 for 5 sec
°C
Soldering Temperature (Flow)(3,4 and 6)
TSOL-F
260 for 10 sec
°C
Continuous Forward Current
IF
100
mA
Forward Current (pw, 10s; 100Hz)
IF
3
A
Forward Current (pw, 1s; 200Hz)
IF
10
A
Reverse Voltage
VR
3
V
Power Dissipation (TA = 25°C)(1)
PD
170
mW
Power Dissipation (TC = 25°C)(2)
PD
1.3
W
F5E2 Features
• Good optical to mechanical alignment • Mechanically and wavelength matched to the TO-18 series phototransistor • Hermetically sealed package • High irradiance level
F5E3 Parameters
Technical/Catalog Information
F5E3
Vendor
Fairchild Optoelectronics Group
Category
Optoelectronics
Voltage - Forward (Vf) Typ
1.3V
Current - DC Forward (If)
100mA
Wavelength
880nm
Viewing Angle
80°
Radiant Intensity (Ie) Min @ If
-
Mounting Type
Through Hole
Package / Case
TO-46
Orientation
Top View
Packaging
-
Other Names
F5E3 F5E3
F5E3 General Description
The F5E series are 880nm LEDs in a wide angle, TO-46 package.
F5E3 Maximum Ratings
Parameter
Symbol
Rating
Unit
Operating Temperature
TOPR
-65 to +125
°C
Storage Temperature
TSTG
-65 to +150
°C
Soldering Temperature (Iron)(3,4,5 and 6)
TSOL-I
240 for 5 sec
°C
Soldering Temperature (Flow)(3,4 and 6)
TSOL-F
260 for 10 sec
°C
Continuous Forward Current
IF
100
mA
Forward Current (pw, 10s; 100Hz)
IF
3
A
Forward Current (pw, 1s; 200Hz)
IF
10
A
Reverse Voltage
VR
3
V
Power Dissipation (TA = 25°C)(1)
PD
170
mW
Power Dissipation (TC = 25°C)(2)
PD
1.3
W
F5E3 Features
• Good optical to mechanical alignment • Mechanically and wavelength matched to the TO-18 series phototransistor • Hermetically sealed package • High irradiance level
