MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:. D/C:06+
FDU7030BL, FDU8580, FDU8586 Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: .
D/C: 06+
Description: MOSFET N-CH 20V 35A I-PAK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FDU7030BL
File Size: 129805 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDU044AN03L
File Size: 305497 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDU044AN03L
File Size: 305497 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | FDU7030BL |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 14A |
| Rds On (Max) @ Id, Vgs | 9.5 mOhm @ 14A, 10V |
| Input Capacitance (Ciss) @ Vds | 1425pF @ 15V |
| Power - Max | 1.3W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 20nC @ 5V |
| Package / Case | IPak, TO-251, DPak, VPak (3 straight leads + tab) |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDU7030BL FDU7030BL |
This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS( ON) , fast switching speed and extremely low RDS(ON) in a small package.
|
Symbol |
Parameter |
Ratings |
Units | |
|
VDSS VGSS |
Drain-Source Voltage Gate-Source Voltage |
30 ±20 56 14 100 60 2.8 1.3 55 to +175 |
V V | |
|
ID |
Continuous Drain Current @TC=25°C @TA=25°C Pulsed |
(Note 3) |
A | |
|
PD |
Power Dissipation @TC=25°C @TA=25°C @TA=25°C |
(Note 3) (Note 1a) (Note 1b) |
W | |
|
TJ, TSTG |
Operating and Storage Temperature Range |
°C | ||

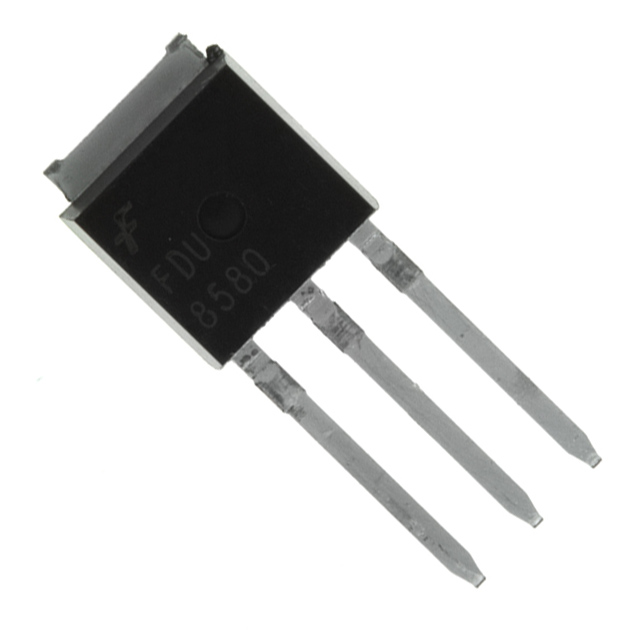

| Technical/Catalog Information | FDU8580 |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25° C | 35A |
| Rds On (Max) @ Id, Vgs | 9 mOhm @ 35A, 10V |
| Input Capacitance (Ciss) @ Vds | 1445pF @ 10V |
| Power - Max | 49.5W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 27nC @ 10V |
| Package / Case | IPak, TO-251, DPak, VPak (3 straight leads + tab) |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDU8580 FDU8580 |
| Technical/Catalog Information | FDU8586 |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25° C | 35A |
| Rds On (Max) @ Id, Vgs | 5.5 mOhm @ 35A, 10V |
| Input Capacitance (Ciss) @ Vds | 2480pF @ 10V |
| Power - Max | 77W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 48nC @ 10V |
| Package / Case | IPak, TO-251, DPak, VPak (3 straight leads + tab) |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDU8586 FDU8586 |
