FDU8780F071, FDU8782, FDU8796

Table of contents:
Info of FDU8780F071
Info of FDU8782
Info of FDU8796

FDU8780F071, FDU8782, FDU8796 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:TO- D/C:TO-

FDU8780F071, FDU8782, FDU8796 Datasheet download

Five Points

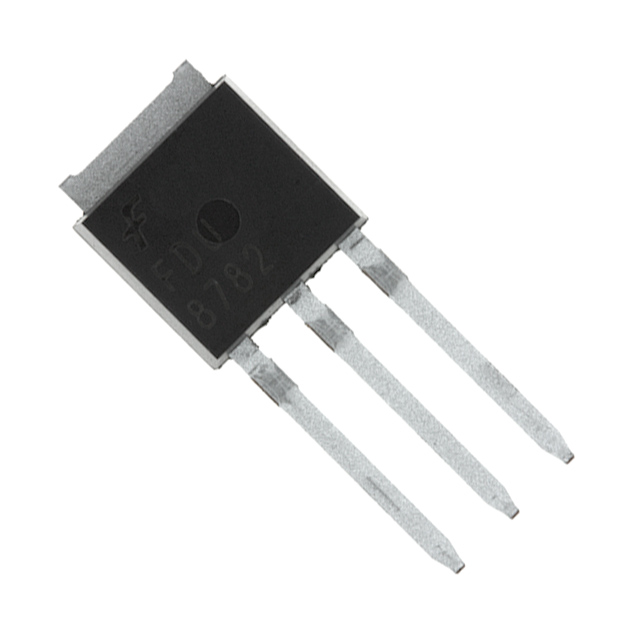

Part Number: FDU8782

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: TO-

D/C: TO-

Description: MOSFET N-CHAN 25V 35A I-PAK

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDU8782 Parameters

Technical/Catalog Information	FDU8782
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25° C	35A
Rds On (Max) @ Id, Vgs	11 mOhm @ 35A, 10V
Input Capacitance (Ciss) @ Vds	1220pF @ 13V
Power - Max	50W
Packaging	Tube
Gate Charge (Qg) @ Vgs	25nC @ 10V
Package / Case	IPak, TO-251, DPak, VPak (3 straight leads + tab)
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDU8782 FDU8782

FDU8796 Parameters

Technical/Catalog Information	FDU8796
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25° C	35A
Rds On (Max) @ Id, Vgs	5.7 mOhm @ 35A, 10V
Input Capacitance (Ciss) @ Vds	2610pF @ 13V
Power - Max	88W
Packaging	Tube
Gate Charge (Qg) @ Vgs	52nC @ 10V
Package / Case	IPak, TO-251, DPak, VPak (3 straight leads + tab)
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDU8796 FDU8796

FDU8796 General Description

This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low r_DS(on) and fast switching speed.

FDU8796 Maximum Ratings

Symbol	Parameter	Ratings	Units
V_DS	Drain to Source Voltage	25	V
V_GS	Gate to Source Voltage	±20	V
I_D	Drain Current -Continuous (Package Limited)	35	A
	-Continuous (Die Limited)	98
	-Pulsed 1	305
E_AS	Single Pulse Avalanche Energy 2	91	mJ
P_D	Power Dissipation	88	W
T_J,T_STG	Operating and Storage Temperature	-55 to 175	°C

FDU8796 Features

` Max r_DS(on) = 5.7m at V_GS = 10V, I_D = 35A
` Max r_DS(on) = 8.0m at V_GS = 4.5V, I_D = 35A
` Low gate charge: Qg(10) = 37nC(Typ), V_GS = 10V
` Low gate resistance
` Avalanche rated and 100% tested
` RoHS Compliant

FDU8796 Typical Application

· Vcore DC-DC for Desktop Computers and Servers
· VRM for Intermediate Bus Architecture
