MFG:Fairchild Semiconductor (VA) Category:Integrated Circuits (ICs) Package Cooled:SOP D/C:08+
FHP3130IM8, FHP3131, FHP3131IS6X Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor (VA)
Package Cooled: SOP
D/C: 08+
Description: IC AMP VFA R-R 2.5-12V SOT23-6
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FHP3130IM8X
File Size: 873516 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FHP3130
File Size: 65536 KB
Manufacturer: FAIRCHILD
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FHP3130
File Size: 65536 KB
Manufacturer: FAIRCHILD
Download : Click here to Download
The FHP3131 is a high-performance, voltage-feedback amplifier that consumes only 0.4mA of supply current while providing 70MHz of bandwidth and 50V/?s slew rate. The FHP3131 is designed to operate from 2.5V to 12V (?6V) supplies. The common mode voltage range extends below the negative rail and the output provides rail-to-rail performance.
The FHP3131 is fabricated on a complementary bipolar process. The combination of low power, rail-to-rail performance,low-voltage operation, and tiny package options make this amplifier well suited for many general-purpose, high-speed applications.
For power-sensitive applications, the FHP3131 offers unparalleled dynamic performance. It also offers a shutdown feature to lower the supply current draw below 30?A. The FHP3131 is available in space-saving 6-lead SOT23 or MicroPak? packages and operates from -40?C to +85?C.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FHP3131IL6X | Full Production | RoHS Compliant | $0.414 | MicroPak | 6 | TAPE REEL | Line 1: PT | |

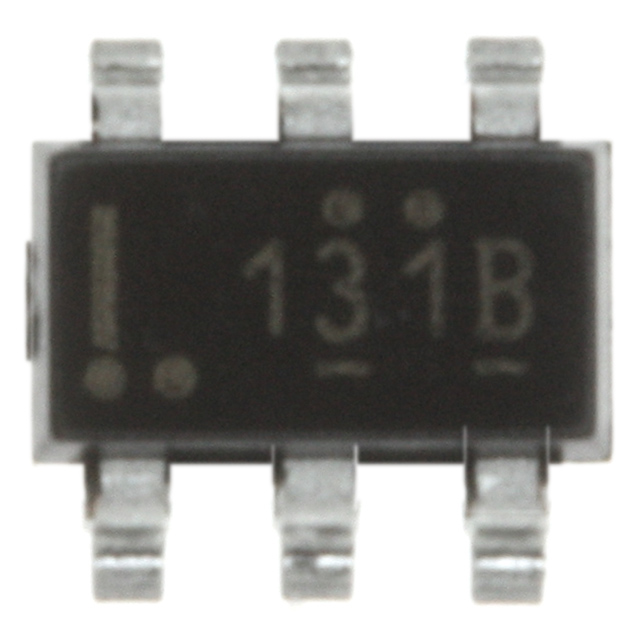

| FHP3131IS6X | Not recommended for new designs | RoHS Compliant | N/A | SOT-23 | 6 | TAPE REEL | Line 1: &E&E&Y (Binary Calendar Year Coding) Line 2: &O&E131&C Line 3: &.&O&E&V |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FHP3131 is available. Click here for more information . |
| Technical/Catalog Information | FHP3131IS6X |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Integrated Circuits (ICs) |
| Packaging | Cut Tape (CT) |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 1 - Single |
| Package / Case | SOT-23-6 |
| Slew Rate | 45 V/s |
| Gain Bandwidth Product | - |
| Current - Supply | 400A |
| Current - Output / Channel | 35mA |
| Voltage - Supply, Single/Dual (±) | 2.5 V ~ 12 V, ±1.25 V ~ 6 V |
| Output Type | Rail-to-Rail |
| -3db Bandwidth | 70MHz |
| Current - Input Bias | 1.4A |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input Offset | 1000V |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FHP3131IS6X FHP3131IS6X FHP3131IS6XCT ND FHP3131IS6XCTND FHP3131IS6XCT |
