FJY4005R, FJY4006R, FJY4007R

FJY4005R, FJY4006R, FJY4007R Selling Leads, Datasheet

MFG:Fairchild Semiconductor  Category:Discrete Semiconductor Products  Package Cooled:SOT-523F  D/C:2010+

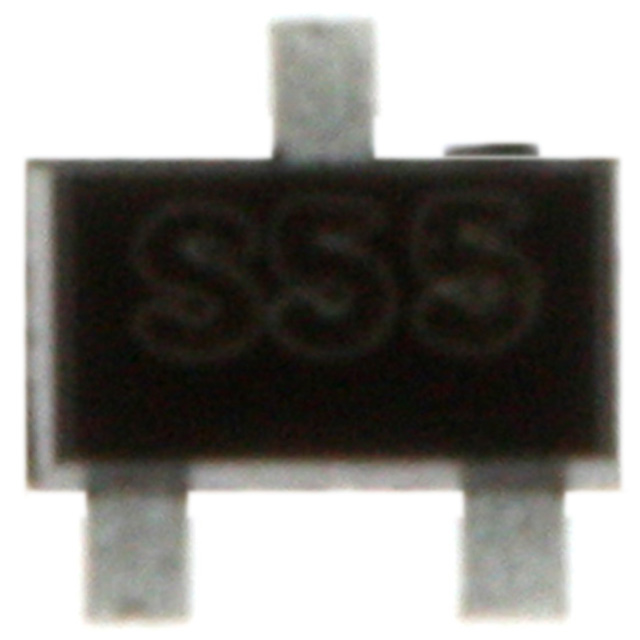

FJY4005R Picture

FJY4005R, FJY4006R, FJY4007R Datasheet download

Five Points

Part Number: FJY4005R

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: SOT-523F

D/C: 2010+

Description: TRANS PNP 50V 100MA SOT-523F






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

FJY4005R Suppliers

More FJY4005R Suppliers

Select All

  • FJY4002R

  • D/C: 03+&   Adddate: 2024-03-29
  • Inquire Now
  • orientelec   China
    Contact: Ms.Jessica Ren   MSN:jessica@orientelec.cn
    Tel: 86-10-62103873/62101821
    Fax: 86-10-62102720
    (5)

About FJYF2906

PDF/DataSheet Download

Datasheet: FJYF2906

File Size: 144760 KB

Manufacturer: FAIRCHILD [Fairchild Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

FJY4006R Suppliers

More FJY4006R Suppliers

Select All

  • FJY4002R

  • D/C: 03+&   Adddate: 2024-03-29
  • Inquire Now
  • orientelec   China
    Contact: Ms.Jessica Ren   MSN:jessica@orientelec.cn
    Tel: 86-10-62103873/62101821
    Fax: 86-10-62102720
    (5)

About FJYF2906

PDF/DataSheet Download

Datasheet: FJYF2906

File Size: 144760 KB

Manufacturer: FAIRCHILD [Fairchild Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

FJY4007R Suppliers

More FJY4007R Suppliers

Select All

  • FJY4002R

  • D/C: 03+&   Adddate: 2024-03-29
  • Inquire Now
  • orientelec   China
    Contact: Ms.Jessica Ren   MSN:jessica@orientelec.cn
    Tel: 86-10-62103873/62101821
    Fax: 86-10-62102720
    (5)

About FJYF2906

PDF/DataSheet Download

Datasheet: FJYF2906

File Size: 144760 KB

Manufacturer: FAIRCHILD [Fairchild Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

FJY4005R Parameters

Technical/Catalog InformationFJY4005R
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypePNP - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)100mA
Power - Max200mW
Resistor - Base (R1) (Ohms)4.7K
Resistor - Emitter Base (R2) (Ohms)10K
Vce Saturation (Max) @ Ib, Ic300mV @ 500A, 10mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce30 @ 5mA, 5V
Frequency - Transition200MHz
Mounting TypeSurface Mount
Package / CaseSOT-523F
PackagingTape & Reel (TR)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FJY4005R
FJY4005R
FJY4005RTR ND
FJY4005RTRND
FJY4005RTR

FJY4006R Parameters

Technical/Catalog InformationFJY4006R
VendorFairchild Semiconductor (VA)
CategoryDiscrete Semiconductor Products
Transistor TypePNP - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)100mA
Power - Max200mW
Resistor - Base (R1) (Ohms)10K
Resistor - Emitter Base (R2) (Ohms)47K
Vce Saturation (Max) @ Ib, Ic300mV @ 500A, 10mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce68 @ 5mA, 5V
Frequency - Transition200MHz
Mounting TypeSurface Mount
Package / CaseSOT-523F
PackagingCut Tape (CT)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FJY4006R
FJY4006R
FJY4006RCT ND
FJY4006RCTND
FJY4006RCT

FJY4007R Parameters

Technical/Catalog InformationFJY4007R
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypePNP - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)100mA
Power - Max200mW
Resistor - Base (R1) (Ohms)22K
Resistor - Emitter Base (R2) (Ohms)47K
Vce Saturation (Max) @ Ib, Ic300mV @ 500A, 10mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce68 @ 5mA, 5V
Frequency - Transition200MHz
Mounting TypeSurface Mount
Package / CaseSOT-523F
PackagingTape & Reel (TR)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FJY4007R
FJY4007R
FJY4007RTR ND
FJY4007RTRND
FJY4007RTR
