FPAB30BH60, FPAB30PH60, FPAL10SH60

FPAB30BH60, FPAB30PH60, FPAL10SH60 Selling Leads, Datasheet

MFG:Fairchild Semiconductor  Category:Integrated Circuits (ICs)  Package Cooled:MODULO  D/C:06+

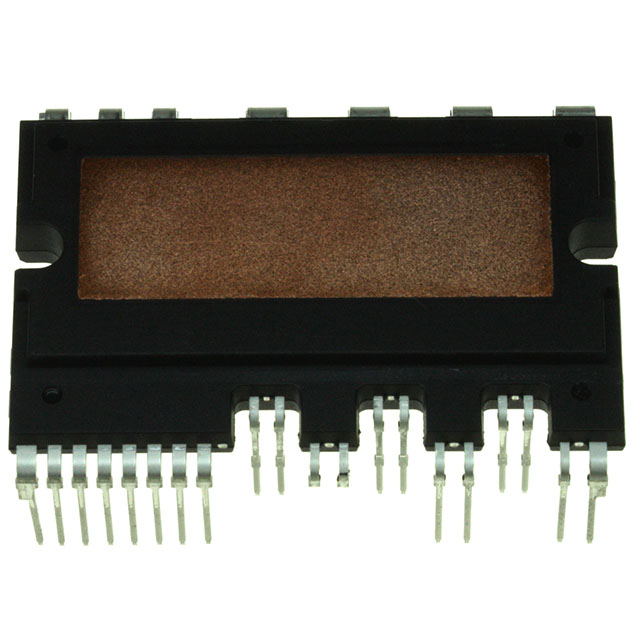

FPAB30BH60 Picture

FPAB30BH60, FPAB30PH60, FPAL10SH60 Datasheet download

Five Points

Part Number: FPAB30BH60

Category: Integrated Circuits (ICs)

MFG: Fairchild Semiconductor

Package Cooled: MODULO

D/C: 06+

Description: MODULE SPM FOR FRONT END SPM27-I






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

FPAB30BH60 Suppliers

More FPAB30BH60 Suppliers

Select All

About FPAL10SH60

PDF/DataSheet Download

Datasheet: FPAL10SH60

File Size: 375881 KB

Manufacturer: FAIRCHILD [Fairchild Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

FPAB30PH60 Suppliers

More FPAB30PH60 Suppliers

Select All

About FPAL10SH60

PDF/DataSheet Download

Datasheet: FPAL10SH60

File Size: 375881 KB

Manufacturer: FAIRCHILD [Fairchild Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

FPAL10SH60 Suppliers

More FPAL10SH60 Suppliers

Select All

About FPAL10SH60

PDF/DataSheet Download

Datasheet: FPAL10SH60

File Size: 375881 KB

Manufacturer: FAIRCHILD [Fairchild Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

FPAB30BH60 Parameters

Technical/Catalog InformationFPAB30BH60
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
ApplicationsAC Motor Driver
Number of Outputs1
Voltage - Supply-
Voltage - Load-
Current - Output-
Operating Temperature-20°C ~ 100°C
Package / CaseSPM27IA
PackagingTube
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FPAB30BH60
FPAB30BH60

FPAL10SH60 General Description

FPAL10SH60 is an advanced smart power module (SPM) that Fairchild has newly developed and designed to providevery compact and low cost, yet high performance ac motor drives mainly targeting high speed low-power inverterdriven application like washing machines. It combines optimized circuit protection and drive matched to low-loss IGBTs. Highly effective short-circuit current detection/ protection is realized through the use of advanced currentsensing IGBT chips that allow continuous monitoring of the IGBTs current. System reliability is further enhanced by the built-in over-temperature and integrated under-voltage lock-out protection. The high speed built-in HVIC provides opto-coupler-less IGBT gate driving capability that further reduce the overall size of the inverter system design. In addition the incorporated HVIC facilitates the use of singlesupply drive topology enabling the FPAL10SH60 to be driven by only one drive supply voltage without negative bias.

FPAL10SH60 Maximum Ratings

Item
Symbol
Condition
Rating
Unit
Supply Voltage
VDC
Applied to DC - Link
450
V
Supply Voltage (Surge)
VPN(Surge)
Applied between P- N
500
V
Collector-Emitter Voltage
VCES

600
V
Each IGBT Collector Current
± IC
TC = 25°C (Note Fig. 4)
10
A
Each IGBT Collector Current (Peak)
± ICP
TC = 25°C (Note Fig. 4)
20
A
Collector Dissipation
PC
TC = 25°C per One Chip
43
W
Operating Junction Temperature
TJ
(Note 1)
-55 ~ 150
°C

FPAL10SH60 Features

• UL Certified No. E209204
• 600V-10A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
• Single-grounded power supply due to built-in HVIC
• Typical switching frequency of 15kHz
• Built-in thermistor for over-temperature monitoring
• Inverter power rating of 0.4kW / 100~253 Vac
• Isolation rating of 2500Vrms/min.
• Very low leakage current due to using ceramic substrate
• Adjustable current protection level by varying series resistor value with sense-IGBTs

FPAL10SH60 Typical Application

• AC 100V ~ 253V three-phase inverter drive for small power (0.4kW) ac motor drives
• Home appliances applications requiring high switching frequency operation like washing machines drive system
• Application ratings:
- Power : 0.4 kW / 100~253 Vac
- Switching frequency : Typical 15kHz (PWM Control)
- 100% load current : 3.0A (Irms)
- 150% load current : 4.5A (Irms) for 1 minute

FPAL10SH60 Connection Diagram
