MFG:Sharp Microelectronics Category:Sensors, Transducers D/C:09+
GP2L21, GP2L22, GP2L22B Datasheet download
Category: Sensors, Transducers
MFG: Sharp Microelectronics
Package Cooled:
D/C: 09+

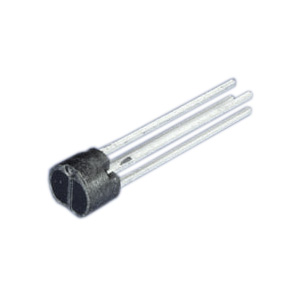

Description: PHOTOINTERRUPTER REFLEC .6MM PCB
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: GP2001-7R
File Size: 74090 KB
Manufacturer: POWER-ONE [Power-One]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: GP2L22
File Size: 48472 KB
Manufacturer: SHARP [Sharp Electrionic Components]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: GP2001-7R
File Size: 74090 KB
Manufacturer: POWER-ONE [Power-One]
Download : Click here to Download
| Technical/Catalog Information | GP2L22 |
| Vendor | Sharp Microelectronics |
| Category | Sensors, Transducers |
| Sensing Distance | 0.023" (0.6mm) |
| Sensing Method | Reflective |
| Output Type | Photodarlington |
| Voltage - Collector Emitter Breakdown (Max) | 35V |
| Current - Collector (Ic) (Max) | 50mA |
| Current - DC Forward (If) | 50mA |
| Response Time | 80s , 70s <!--70us--> |
| Operating Temperature | -25°C ~ 85°C |
| Features | High Sensitivity |
| Mounting Type | Through Hole |
| Package / Case | PCB Mount |
| Packaging | Bulk |
| RoHS Status | RoHS Non-Compliant |
| Other Names | GP2L22 GP2L22 425 1090 5 ND 42510905ND 425-1090-5 |
|
Parameter |
Symbol |
Rating |
Unit | |
| Input | Forward current |
IF |
50 |
mA |
| Reverse voltage |
VR |
6 |
V | |
| Power dissipation |
P |
75 |
mW | |
| Output | Collector-emitter voltage |
VCEO |
35 |
V |
| Emitter-collector voltage |
VECO |
6 |
V | |
| Collector current |
IC |
20 |
mA | |
| Collector power dissipation |
PC |
75 |
mW | |
|
Total power dissipation |
Ptot |
100 |
mW | |
|
Operating temperature |
Topr |
- 25 to + 85 |
°C | |
|
Storage temperature |
Tstg |
- 40 to + 100 |
°C | |
|
*1 Soldering temperature |
Tsol |
260 |
°C | |
