MFG:Sharp Microelectronics Category:Sensors, Transducers Package Cooled:sharp D/C:dc95
GP2S13, GP2S22, GP2S24 Datasheet download
Category: Sensors, Transducers
MFG: Sharp Microelectronics
Package Cooled: sharp
D/C: dc95

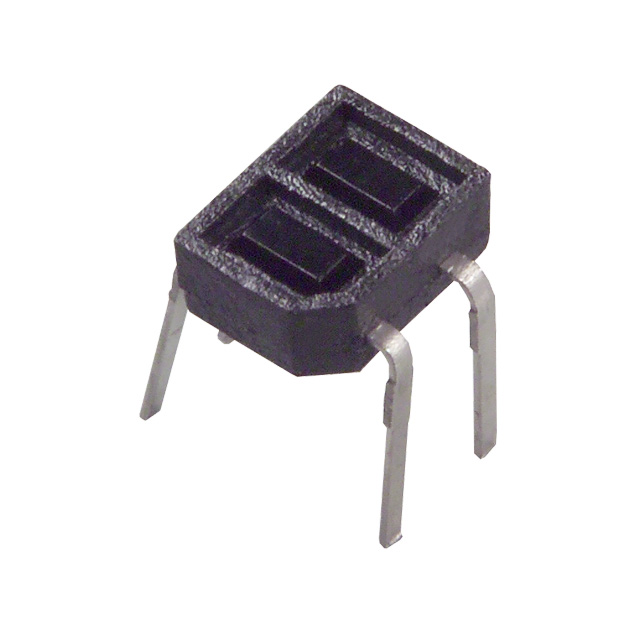

Description: PHOTOINTERRUPTER REFLEC .8MM DIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: GP2001-7R
File Size: 74090 KB
Manufacturer: POWER-ONE [Power-One]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: GP2S22
File Size: 53079 KB
Manufacturer: SHARP [Sharp Electrionic Components]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: GP2S24
File Size: 73877 KB
Manufacturer: SHARP [Sharp Electrionic Components]
Download : Click here to Download
|
Parameter |
Symbol |
Rating |
Unit | |
| Input | Forward current |
IF |
50 |
mA |
| Reverse voltage |
VR |
6 |
V | |
| Power dissipation |
P |
75 |
mW | |
| Output | Collector-emitter voltage |
VCEO |
35 |
V |
| Emitter-collector voltage |
VECO |
6 |
V | |
| Collector current |
IC |
20 |
mA | |
| Collector power dissipation |
PC |
75 |
mW | |
|
Total power dissipation |
Ptot |
100 |
mW | |
|
Operating temperature |
Topr |
- 25 to + 85 |
°C | |
|
Storage temperature |
Tstg |
- 40 to + 100 |
°C | |
|
*1 Soldering temperature |
Tsol |
260 |
°C | |
| Technical/Catalog Information | GP2S24 |
| Vendor | Sharp Microelectronics |
| Category | Sensors, Transducers |
| Sensing Distance | 0.031" (0.8mm) |
| Sensing Method | Reflective |
| Output Type | Phototransistor |
| Voltage - Collector Emitter Breakdown (Max) | 35V |
| Current - Collector (Ic) (Max) | 20mA |
| Current - DC Forward (If) | 50mA |
| Response Time | 20s , 20s <!--20us--> |
| Operating Temperature | -25°C ~ 85°C |
| Features | Compact Model |
| Mounting Type | Through Hole |
| Package / Case | PCB Mount |
| Packaging | Bulk |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | GP2S24 GP2S24 425 1093 5 ND 42510935ND 425-1093-5 |
|
Parameter |
Symbol |
Rating |
Unit | |
| Input | Forward current |
IF |
50 |
mA |
| Reverse voltage |
VR |
6 |
V | |
| Power dissipation |
P |
75 |
mW | |
| Output | Collector-emitter voltage |
VCEO |
35 |
V |
| Emitter-collector voltage |
VECO |
6 |
V | |
| Collector current |
IC |
20 |
mA | |
| Collector power dissipation |
PC |
75 |
mW | |
|
Total power dissipation |
Ptot |
100 |
mW | |
|
Operating temperature |
Topr |
- 25 to + 85 |
°C | |
|
Storage temperature |
Tstg |
- 40 to + 100 |
°C | |
|
*2 Soldering temperature |
Tsol |
260 |
°C | |
