GP2S60A, GP2S700HCP, GP2W0001YP

Table of contents:
Info of GP2S60A
Info of GP2S700HCP
Info of GP2W0001YP

GP2S60A, GP2S700HCP, GP2W0001YP Selling Leads, Datasheet

MFG:Sharp Microelectronics Category:Sensors, Transducers Package Cooled:SMD D/C:09+

GP2S60A, GP2S700HCP, GP2W0001YP Datasheet download

Five Points

Part Number: GP2S700HCP

Category: Sensors, Transducers

MFG: Sharp Microelectronics

Package Cooled: SMD

D/C: 09+

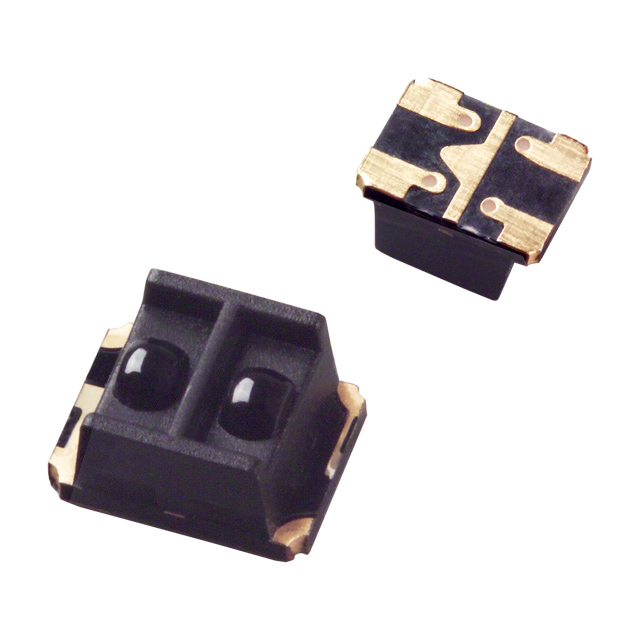

Description: PHOTOINTERRUPTER REFLEC 3MM SMD

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

GP2S60A Parameters

Technical/Catalog Information	GP2S60A
Vendor	Sharp Microelectronics
Category	Sensors, Transducers
Sensing Distance	0.028" (0.7mm)
Sensing Method	Reflective
Output Type	Phototransistor
Voltage - Collector Emitter Breakdown (Max)	35V
Current - Collector (Ic) (Max)	20mA
Current - DC Forward (If)	50mA
Response Time	20s , 20s <!--20us-->
Operating Temperature	-25°C ~ 85°C
Features	Compact Model
Mounting Type	Surface Mount, Gull Wing
Package / Case	4-SMD
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	GP2S60A GP2S60A

GP2S700HCP Parameters

Technical/Catalog Information	GP2S700HCP
Vendor	Sharp Microelectronics
Category	Sensors, Transducers
Sensing Distance	0.217" (5.5mm)
Sensing Method	Reflective
Output Type	Phototransistor
Voltage - Collector Emitter Breakdown (Max)	35V
Current - Collector (Ic) (Max)	20mA
Current - DC Forward (If)	50mA
Response Time	20s , 20s <!--20us-->
Operating Temperature	-25°C ~ 85°C
Features	Ultra Compact Model
Mounting Type	Surface Mount
Package / Case	4-SMD
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	GP2S700HCP GP2S700HCP 425 1913 2 ND 42519132ND 425-1913-2

GP2S700HCP Maximum Ratings

Parameter		Symbol	Rating	Unit
Input	Forward current	I_F	50	mA
	Reverse voltage	V_R	6	V
	Power dissipation	P_D	75	mW
Output	Collector-emitter voltage	V_CEO	35	V
	Emitter-collector voltage	V_ECO	6	V
	Collector current	I_C	20	mA
	Collector power dissipation	P_C	75	mW
Total power dissipation		P_tot	100	mW
Operating temperature		T_opr	−25 to +85	°C
Storage temperature		T_stg	−40 to +100	°C
*¹Soldering temperature		T_sol	260	°C

*1 For 5s

GP2S700HCP Features

1. Ultra compact SMD package
2. Long focal distance type (focal distance:3mm)
3. Effective detection distance:1.2 to 5.5mm

GP2S700HCP Typical Application

1. Copiers
2. Facsimiles
3. Printers

GP2W0001YP Maximum Ratings

Parameter	Symbol	Rating	Unit	NOTES
Supply voltage	V_CC	0 to 6.0	V
Forward current	I_F	50	mA
Peak forward current	I_FM	500	mA	1
Operating temperature	T_OPR	-10 to +70	°C
Storage temperature	T_STG	-20 to +85	°C
Soldering temperature	T_SOL	230	°C	2

NOTES:
1. Pulse width: 78.1 s. Duty ratio: 3/16.
2. Soldering reflow time: 5 seconds.

GP2W0001YP Features

• Built-in Photodiode
• Operating voltage 2.7 V to 5.5 V
• In circuit design, allow for the degradation of light emitting diode output that results from long continuous operation (50% degradation/5 years).
• This product shall not contain the following materials, and these materials shall not be used in the production process for this product.
CFCs
Halon
Carbon Tetrachloride
1.1.1. Trichloroethane (Methylchloroform)
Specific brominated flame retardants such as the
PBBOs and PBBs are not used in this device.
