GP2W0116YP0F, GP2W0116YPS, GP2W0118YP0F

Table of contents:
Info of GP2W0116YP0F
Info of GP2W0116YPS
Info of GP2W0118YP0F

GP2W0116YP0F, GP2W0116YPS, GP2W0118YP0F Selling Leads, Datasheet

MFG:Sharp Microelectronics Category:Sensors, Transducers Package Cooled:Standard D/C:N/A

GP2W0116YP0F, GP2W0116YPS, GP2W0118YP0F Datasheet download

Five Points

Part Number: GP2W0116YP0F

Category: Sensors, Transducers

MFG: Sharp Microelectronics

Package Cooled: Standard

D/C: N/A

Description: MODULE IRDA 115.2KBPS 7SMD

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

GP2W0116YP0F Parameters

Technical/Catalog Information	GP2W0116YP0F
Vendor	Sharp Microelectronics
Category	Sensors, Transducers
Data Rate	115.2kbs (SIR)
Supply Voltage	2 V ~ 3.6 V
Idle Current, Typ @ 25° C	90A
Link Range, Low Power	20cm
Size	7.2mm x 2.75mm x 1.85mm
Operating Temperature	-40°C ~ 85°C
Standards	IrPHY 1.2
Packaging	Tape & Reel (TR)
Orientation	Side View
Shutdown	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	GP2W0116YP0F GP2W0116YP0F 425 2059 2 ND 42520592ND 425-2059-2

GP2W0116YPS Maximum Ratings

Parameter	Symbol	Rating	Unit
Supply voltage	V_CC	0 to 6.0	V
LED Supply voltage	V_LEDA	0 to 7.0	V
^*1Peak forward current	I_FM	60	mA
Operating temperature	T_opr	−40 to +85
Storage temperature	T_stg	−40 to +85
^*2Soldering temperature	T_sol	260

*1 Pulse width 78.1s, Duty ratio:3/16
*2 For MAX. 10s

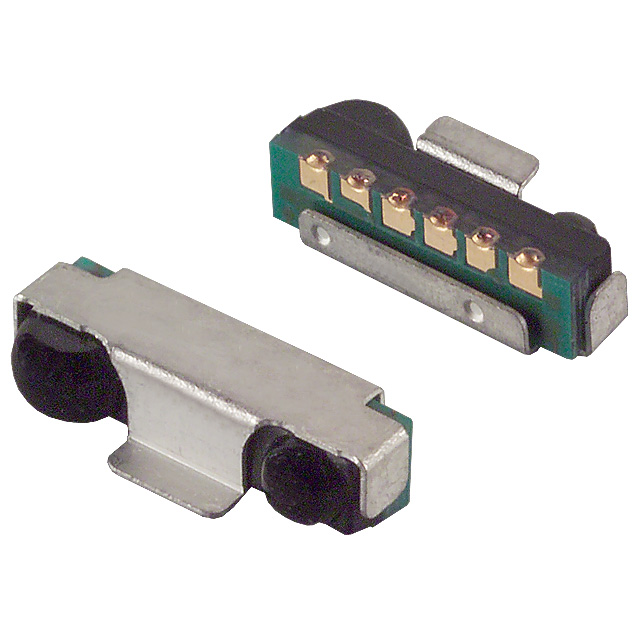

GP2W0116YPS Features

1. Compliant with IrDA1.2 low power
2. Integrated package of transmitter/receiver. (7.2*2.75*height 1.85mm)
3. General purpose
4. Low dissipation current due to shut-down function (Dissipation current at shut-down mode:Max. 0.1A)
5. Soldering reflow type
6. Shield type

GP2W0116YPS Typical Application

1. Cellular phones, PHS
2. Personal information tools

GP2W0118YP0F Parameters

Technical/Catalog Information	GP2W0118YP0F
Vendor	Sharp Microelectronics
Category	Sensors, Transducers
Data Rate	115.2kbs (SIR)
Supply Voltage	2.7 V ~ 5.5 V
Idle Current, Typ @ 25° C	-
Link Range, Low Power	20cm
Size	7.2mm x 2.75mm x 1.85mm
Operating Temperature	-40°C ~ 85°C
Standards	IrPHY 1.2
Packaging	Tape & Reel (TR)
Orientation	Top View
Shutdown	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	GP2W0118YP0F GP2W0118YP0F 425 2060 2 ND 42520602ND 425-2060-2
