MFG:Avago Technologies US Inc. Category:Isolators Package Cooled:Original Package D/C:08+/09+
HCPL0501, HCPL-0501, HCPL-0501000E Datasheet download
Category: Isolators
MFG: Avago Technologies US Inc.
Package Cooled: Original Package
D/C: 08+/09+
Description: OPTOCOUPLER T-OUT 1MBD 8-SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: HCPL0501
File Size: 587696 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HCPL-0501
File Size: 193957 KB
Manufacturer: HP [Agilent(Hewlett-Packard)]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HCP12C60
File Size: 147144 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
| Technical/Catalog Information | HCPL0501 |
| Vendor | Fairchild Optoelectronics Group |
| Category | Isolators |
| Voltage - Isolation | 2500Vrms |
| Input Type | DC |
| Output Type | Transistor with Vcc |
| Current - Output / Channel | 8mA |
| Voltage - Output | 20V |
| Vce Saturation (Max) | - |
| Current Transfer Ratio (Min) | 19% @ 16mA |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD |
| Packaging | Tube |
| Number of Circuits | 1 - Single |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | HCPL0501 HCPL0501 |

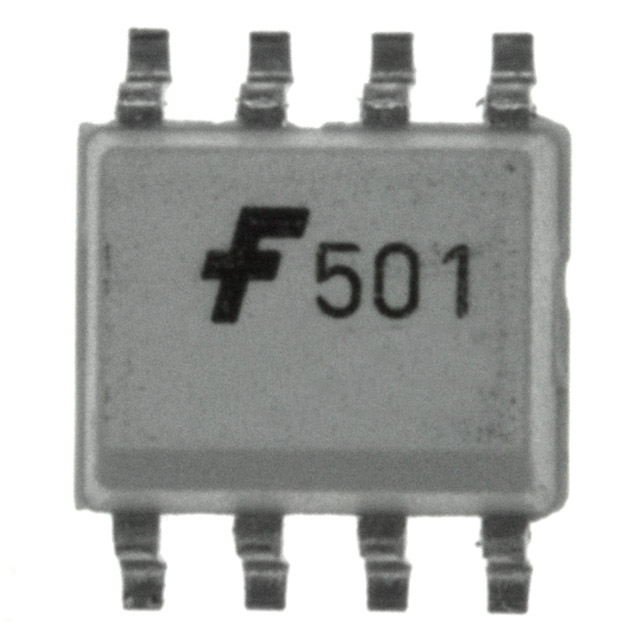

The HCPL05XX, and HCPL04XX optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor housed in a compact 8-pin small outline package.
A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototransistor optocouplers by reducing the base-collector capacitance of the input transistor. The HCPL04XX devices do not have the base bonded out to a lead for additional noise margin. The HCPL053X devices have two channels per package for optimum mounting density.
|
Parameter |
Symbol |
Value |
Units |
| Storage Temperature |
TSTG |
-40 to +125 |
|
| Operating Temperature |
TOPR |
-40 to +85 |
|
| Reflow Temperature Profile (Refer to page 9) | |||
| EMITTER | |||
| DC/Average Forward Input Current |
IF(avg) |
25 |
mA |
| Peak Forward Input Current (50% duty cycle, 1 ms P.W.) |
IF(pk) |
50 |
mA |
| Peak Transient Input Current - ([ 1 s P.W., 300 pps) |
IF(trans) |
1.0 |
A |
| Reverse Input Voltage |
VR |
5 |
V |
| Input Power Dissipation |
PD |
45 |
mW |
| DETECTOR | |||
| Average Output Current (Pin 6) |
IO(avg) |
8 |
mA |
| Peak Output Current |
IO(pk) |
16 |
mA |
| Emitter-Base Reverse Voltage (HCPL0500/HCPL0501 only) |
VEBR |
5 |
V |
| Supply Voltage |
VCC |
-0.5 to 30 |
V |
| Output Voltage |
VO |
-0.5 to 20 |
V |
| Base Current (HCPL0500/HCPL0501 only) |
IB |
5 |
mA |
| Output power dissipation |
PD |
100 |
mW |
• High speed 1 MBit/s
• 15kV/s minimum commone mode transient immunity at VCM =1500V (HCPL0453/0534)
• Open collector output
• Guaranteed performance over temperature: 0 to 70
• U.L. recognized (File # E90700)
• VDE0884 recognized (file#136616)
approval pending for HCPL0530/0531/0453
ordering option V, e.g., HCPL0500V
• BSI recognized (file# 8661, 8662) HCPL0452/0500/0501 only
• Line receivers
• Pulse transformer replacement
• Output interface to CMOS-LSTTL-TTL
• Wide bandwidth analog coupling
| Technical/Catalog Information | HCPL-0501 |
| Vendor | Avago Technologies US Inc. |
| Category | Isolators |
| Isolation Voltage | 3750Vrms |
| Input Type | DC |
| Output Type | Transistor with Vcc |
| Current - Output/Channel | 80mA |
| Voltage - Output | 15V |
| Vce Saturation (Max) | - |
| Current Transfer Ratio (Min) | 19% @ 16mA |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC |
| Packaging | Tube |
| Number of Circuits | 1 - Single |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | HCPL 0501 HCPL0501 516 1027 5 ND 51610275ND 516-1027-5 |
The HCPL-0500, HCPL-0501 and HCPL-0452 optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor housed in a compact 8-pin smalloutline package. A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototransistor optocouplers by reducing the base-collector capacitance of the input transistor.
| Parameter |
Symbol |
Value |
Units |
| Storage Temperature |
TSTG |
-55 to +125 |
°C |
| Operating Temperature |
TOPR |
-55 to +100 |
°C |
| Reflow Temperature Profile (Refer to fig. 11) | |||
| EMITTER | |||
| DC/Average Forward Input Current |
IF(avg) |
25 |
mA |
| Peak Forward Input Current (50% duty cycle, 1 ms P.W.) |
IF(pk) |
50 |
mA |
| Peak Transient Input Current - ([1 µs P.W., 300 pps) |
IF(trans) |
1.0 |
A |
| Reverse Input Voltage |
VR |
5 |
V |
| Input Power Dissipation |
PD |
45 |
mW |
| DETECTOR | |||
| Average Output Current (Pin 6) |
IO(avg) |
8 |
mA |
| Peak Output Current |
IO(pk) |
16 |
mA |
| Emitter-Base Reverse Voltage (Except HCPL-0452) |
VEBR |
5 |
V |
| Supply Voltage |
VCC |
0.5 to 30 |
V |
| Output Voltage |
VO |
0.5 to 20 |
V |
| Base Current (Except HCPL-0452) |
IB |
5 |
mA |
| Output power dissipation |
PD |
100 |
mW |
