MFG:Avago Technologies US, Inc. (VA) Category:Optoelectronics Package Cooled:SMD D/C:09+
HSMH-C150, HSMHC170, HSMH-C170 Datasheet download
Category: Optoelectronics
MFG: Avago Technologies US, Inc. (VA)
Package Cooled: SMD
D/C: 09+
Description: LED 660NM RED DIFF 0805 SMD
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: HSM101
File Size: 461411 KB
Manufacturer: DCCOM [Dc Components]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HSM101
File Size: 461411 KB
Manufacturer: DCCOM [Dc Components]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HSM101
File Size: 461411 KB
Manufacturer: DCCOM [Dc Components]
Download : Click here to Download

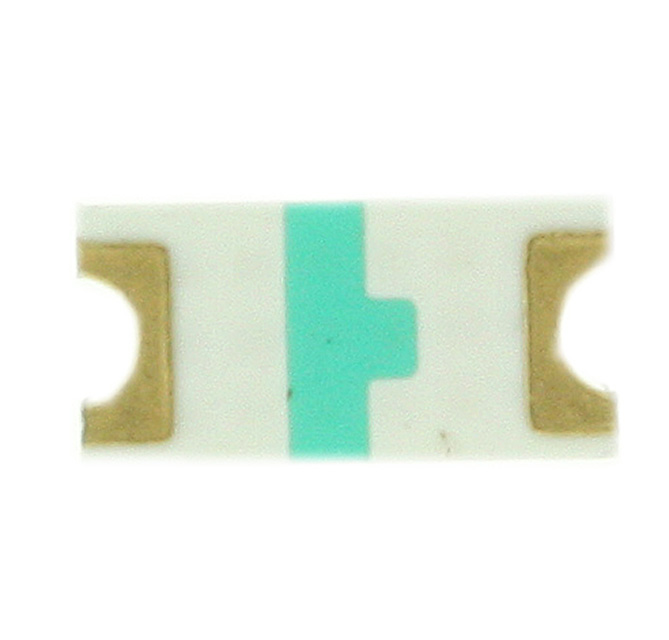

| Technical/Catalog Information | HSMH-C150 |
| Vendor | Avago Technologies US, Inc. (VA) |
| Category | Optoelectronics |
| Color | Red |
| Lens Style/Size | Rectangle, 2mm x 1.6mm |
| Millicandela Rating | 17mcd |
| Voltage - Forward (Vf) Typ | 1.8V |
| Wavelength - Dominant | 639nm |
| Wavelength - Peak | 660nm |
| Current - Test | 20mA |
| Viewing Angle | 170° |
| Lens Type | Diffused |
| Luminous Flux | 98 mlm |
| Package / Case | 1206 (3216 metric) |
| Mounting Type | Surface Mount |
| Packaging | Cut Tape (CT) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | HSMH C150 HSMHC150 516 1439 1 ND 51614391ND 516-1439-1 |
This chip LED Is designed in an industry standard package for ease of handling and use.
The HSMH-C150 has the industry standard 3.2 x 1.6 mm footprint that is excellent for all around use. This packageis compatible with IR reflow solder processes. The small size and wide viewing angle makes this LED prime choices for backlighting applications and front panel illumination especially where space is a premium.
| Technical/Catalog Information | HSMH-C170 |
| Vendor | Avago Technologies US, Inc. (VA) |
| Category | Optoelectronics |
| Color | Red |
| Lens Style/Size | Rectangle, 1.4mm x 1.25mm |
| Millicandela Rating | 17mcd |
| Voltage - Forward (Vf) Typ | 1.8V |
| Wavelength - Dominant | 639nm |
| Wavelength - Peak | 660nm |
| Current - Test | 20mA |
| Viewing Angle | 170° |
| Lens Type | Diffused |
| Luminous Flux | 98 mlm |
| Package / Case | 0805 (2012 metric) |
| Mounting Type | Surface Mount |
| Packaging | Digi-Reel? |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | HSMH C170 HSMHC170 516 1427 6 ND 51614276ND 516-1427-6 |
This chip LED is designed in an industry standard package for ease of handling and use.
The HSMH-C170 has the widely used 2.0 x 1.25 mm footprint.
This package is compatible with IR reflow solder processes. The small size and wide viewing angle makes this LED prime choices for backlighting applications and front panel illumination especially where space is a premium.
