Product Details

Description



Features:

· Low VF and high efficiency.
· HSM107S which is interconnected in series configuration is designed for protection from not only external excessive voltage but also miss-operation on electric systems.
· MPAK package is suitable for high density surface mounting and high speed assembly.




Pinout

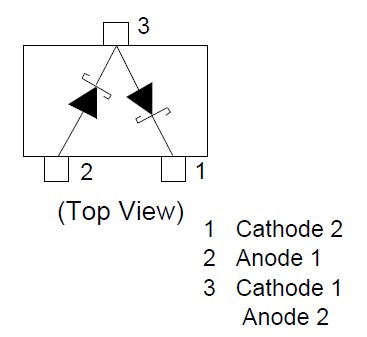

Connection Diagram




Specifications

Item
Symbol
Value
Unit
Reverse voltage
VR
8
V
Peak forward current
IFM
0.1
A
Non-Repetitive peak forward surge current
IFSM*1
0.5
A
Average forward current
IO
50
mA
Junction temperature
Tj
125
Storage temperature
Tstg
55 to +125
Notes: 1. Square wave, 10ms
