IMB10A, IMB10AT110, IMB11

Table of contents:
Info of IMB10A
Info of IMB10AT110
Info of IMB11

IMB10A, IMB10AT110, IMB11 Selling Leads, Datasheet

MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:Sot-163 D/C:09+

IMB10A, IMB10AT110, IMB11 Datasheet download

Five Points

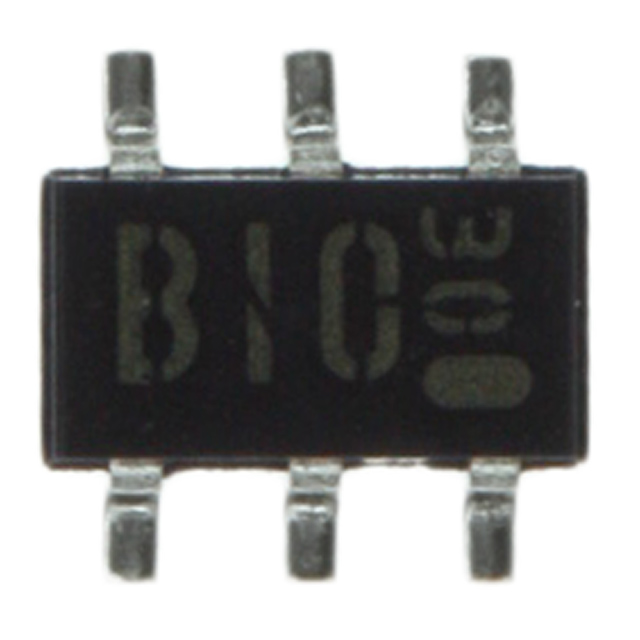

Part Number: IMB10AT110

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor(VA)

Package Cooled: Sot-163

D/C: 09+

Description: TRANS DUAL PNP 50V 100MA SOT-457

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IMB10A Maximum Ratings

Paramete		Symbo	Limits	Unit
Supply voltage		VCC	-50	V
Input voltage		VIN	-40	V
			6
Output current		IO	-100	mA
		IC (Max.)	-100
Power dissipation	EMB10, UMB10N	Pd	150(TOTAL)	mW
	IMB10A		300(TOTAL)
Junction temperature		Tj	150
Storage temperature		TSTG	-55~+150

IMB10A Features

1) Two DTA123J chips in a EMT or UMT or SMT package.
2) Mounting possible with EMT3 or UMT3 or SMT3 automatic mounting machines.
3) Transistor elements are independent, eliminating interference.
4) Mounting cost and area can be cut in half.

IMB10AT110 Parameters

Technical/Catalog Information	IMB10AT110
Vendor	Rohm Semiconductor(VA)
Category	Discrete Semiconductor Products
Transistor Type	2 PNP - Pre-Biased (Dual)
Voltage - Collector Emitter Breakdown (Max)	50V
Current - Collector (Ic) (Max)	100mA
Power - Max	300mW
Resistor - Base (R1) (Ohms)	2.2K
Resistor - Emitter Base (R2) (Ohms)	104
Vce Saturation (Max) @ Ib, Ic	300mV @ 250A, 5mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 10mA, 5V
Frequency - Transition	250MHz
Mounting Type	Surface Mount
Package / Case	SOT-457
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IMB10AT110 IMB10AT110 IMB10AT110DKR ND IMB10AT110DKRND IMB10AT110DKR
