IMX8-7, IMX8T108, IMX9

Table of contents:
Info of IMX8-7
Info of IMX8T108
Info of IMX9

IMX8-7, IMX8T108, IMX9 Selling Leads, Datasheet

MFG:Rohm Semiconductor Category:Discrete Semiconductor Products Package Cooled:SOT-163 D/C:05+

IMX8-7, IMX8T108, IMX9 Datasheet download

Five Points

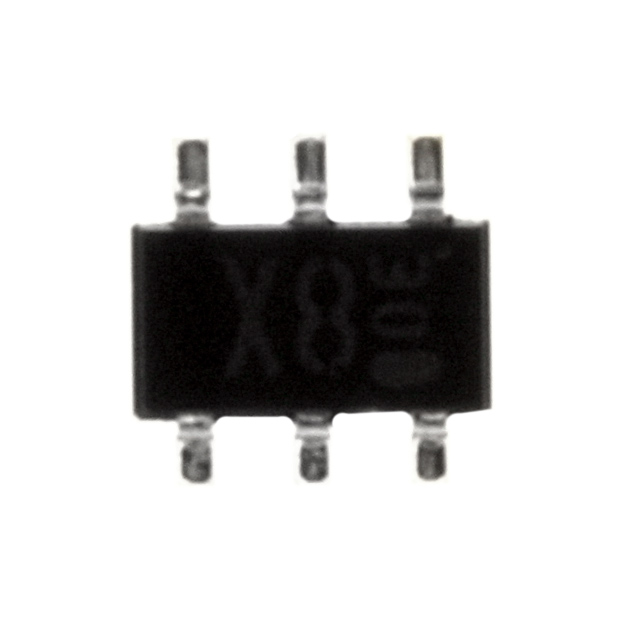

Part Number: IMX8T108

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor

Package Cooled: SOT-163

D/C: 05+

Description: TRANS DUAL NPN 120V 50MA SOT-457

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IMX8T108 Parameters

Technical/Catalog Information	IMX8T108
Vendor	Rohm Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	2 NPN (Dual)
Voltage - Collector Emitter Breakdown (Max)	120V
Current - Collector (Ic) (Max)	50mA
Power - Max	300mW
DC Current Gain (hFE) (Min) @ Ic, Vce	180 @ 2mA, 6V
Vce Saturation (Max) @ Ib, Ic	500mV @ 1mA, 10mA
Frequency - Transition	140MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Surface Mount
Package / Case	SC-74-6, SOT-457, SMT6, SSOT-6, 6-TSOP
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IMX8T108 IMX8T108 IMX8T108TR ND IMX8T108TRND IMX8T108TR

IMX9 Maximum Ratings

Parameter	Symbol	Limits	Unit
Collector-base voltage	V_CBO	25	V
Collector-emitter voltage	V_CEO	20	V
Emitter-base voltage	V_EBO	12	V
Collector current	I_C	500	mA
Power dissipation	P_c	300 (TOTAL)	mW *
Junction temperature	T_j	150	°C
Storage temperature	T_stg	−55~+150	°C

* 200mW per element must not be exceeded.

IMX9 Features

· Two 2SD2114K chips in a SMT package.
· Mounting possible with SMT3 automatic mounting machine.
· Transistor elements are independent, eliminating interference.
· Mounting cost and area can be cut in half.
