IMX8

Features: Two 2SC3906K chips in an SMT package.High breakdown voltage.PinoutSpecifications Part Number IMX8 Product Type NPN + NPN VCEO (V) 120 IC (A) 0.05 ICM (A) - PD (W) 0.3 hFE Min 180 hFE Max 820 @ IC (A) 0.002 VCE (SAT) Max (mV) 500 @ IC...

product image

IMX8 Picture
See larger image
SeekIC No. : 004374571 Detail

IMX8: Features: Two 2SC3906K chips in an SMT package.High breakdown voltage.PinoutSpecifications Part Number IMX8 Product Type NPN + NPN VCEO (V) 120 IC (A) 0.05 ICM (A) - PD...

IMX8 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IMX8
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Two 2SC3906K chips in an SMT package.
High breakdown voltage.

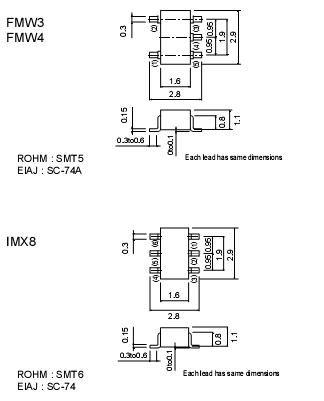

Pinout

Connection Diagram




Specifications

Part Number IMX8
Product Type NPN + NPN
VCEO (V) 120
IC (A) 0.05
ICM (A) -
PD (W) 0.3
hFE Min 180
hFE Max 820
@ IC (A) 0.002
VCE (SAT) Max (mV) 500
@ IC (A) 0.01
@ IB (mA) 1
fT Min (MHz) 140
RCE (SAT) (m) -


Parameter

Symbol

Limits

Unit

Collector-base voltage

VCBO

120

V

Collector-emitter voltage

VCEO

120

V

Emitter-base voltage

VEBO

5

V

Collector current

IC

50

mA

Power dissipation

Pc

300(TOTAL)

mW

Junction temperature

Tj

150

°C

Storage temperature

Tstg

55~+150

°C
