MFG:International Rectifier (VA) Category:Discrete Semiconductor Products Package Cooled:DIRECTFET D/C:09+
IRF6635TR1PBF, IRF6635TRPBF, IRF6636TR1 Datasheet download
Category: Discrete Semiconductor Products
MFG: International Rectifier (VA)
Package Cooled: DIRECTFET
D/C: 09+
Description: MOSFET N-CH 20V 18A DIRECTFET
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IRF034
File Size: 147521 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IRF034
File Size: 147521 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IRF034
File Size: 147521 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
| Technical/Catalog Information | IRF6635TR1PBF |
| Vendor | International Rectifier |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 32A |
| Rds On (Max) @ Id, Vgs | 1.8 mOhm @ 32A, 10V |
| Input Capacitance (Ciss) @ Vds | 5970pF @ 15V |
| Power - Max | 2.8W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 71nC @ 4.5V |
| Package / Case | DirectFET? Isometric MX |
| FET Feature | Logic Level Gate |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IRF6635TR1PBF IRF6635TR1PBF IRF6635TR1PBFTR ND IRF6635TR1PBFTRND IRF6635TR1PBFTR |
| Technical/Catalog Information | IRF6635TRPBF |
| Vendor | International Rectifier (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 32A |
| Rds On (Max) @ Id, Vgs | 1.8 mOhm @ 32A, 10V |
| Input Capacitance (Ciss) @ Vds | 5970pF @ 15V |
| Power - Max | 2.8W |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 71nC @ 4.5V |
| Package / Case | DirectFET? Isometric MX |
| FET Feature | Logic Level Gate |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IRF6635TRPBF IRF6635TRPBF IRF6635TRPBFDKR ND IRF6635TRPBFDKRND IRF6635TRPBFDKR |

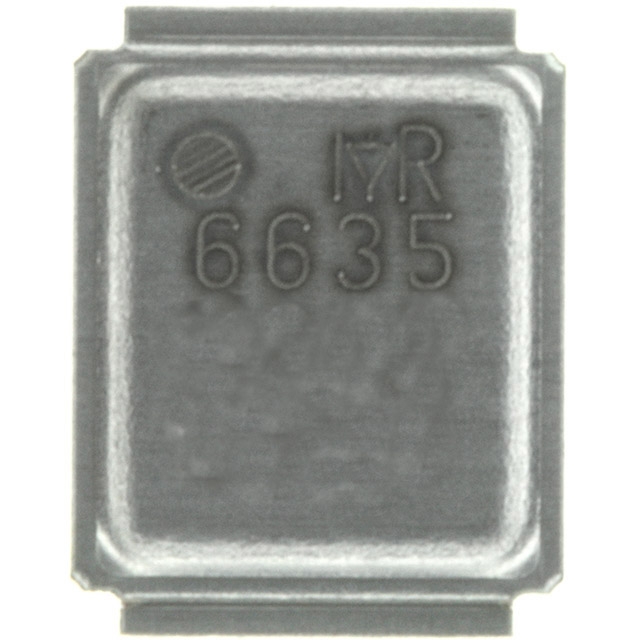

The IRF6635PbF combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of a SO-8 and only 0.7 mm profile. The DirectFET package is compatible with existing layout geometries used in power applications, PCB assembly equipment and vapor phase, infra-red or convection soldering techniques. Application note AN-1035 is followed regarding the manufacturing methods and processes. The DirectFET package allows dual sided cooling to maximize thermal transfer in power systems, improving previous best thermal resistance by 80%.
The IRF6635PbF balances industry leading on-state resistance while minimizing gate charge along with ultra low package inductance to reduce both conduction and switching losses. The reduced losses make this product ideal for high frequency/high efficiency DC-DC converters that power high current loads such as the latest generation of microprocessors. The IRF6635PbF has been optimized for parameters that are critical in synchronous buck converter!'s SyncFET sockets
|
Parameter |
Max. |
Units | |
| VDS | Drain-to-Source Voltage |
30 |
V |
| VGS | Gate-to-Source Voltage |
±20 | |
| ID @ TA = 25 | Continuous Drain Current, VGS @ 10V |
32 |
A |
| ID @ TA = 70 | Continuous Drain Current, VGS @ 10V |
25 | |
| ID @ TC = 25 | Continuous Drain Current, VGS @ 10V |
180 | |
| IDM | Pulsed Drain Current |
250 | |
| EAS | Single Pulse Avalanche Energy |
200 |
mJ |
| IAR | Avalanche Current |
25 |
A |
| Technical/Catalog Information | IRF6636TR1 |
| Vendor | International Rectifier (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25° C | 18A |
| Rds On (Max) @ Id, Vgs | 4.5 mOhm @ 18A, 10V |
| Input Capacitance (Ciss) @ Vds | 2420pF @ 10V |
| Power - Max | 2.2W |
| Packaging | Cut Tape (CT) |
| Gate Charge (Qg) @ Vgs | 27nC @ 4.5V |
| Package / Case | DirectFET? Isometric ST |
| FET Feature | Logic Level Gate |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | IRF6636TR1 IRF6636TR1 IRF6636TR1CT ND IRF6636TR1CTND IRF6636TR1CT |
