MFG:International Rectifier Category:Discrete Semiconductor Products Package Cooled:TO-247 D/C:07+
IRG4PSC71UD, IRG4PSC71UDPBF, IRG4PSH71 Datasheet download
Category: Discrete Semiconductor Products
MFG: International Rectifier
Package Cooled: TO-247
D/C: 07+

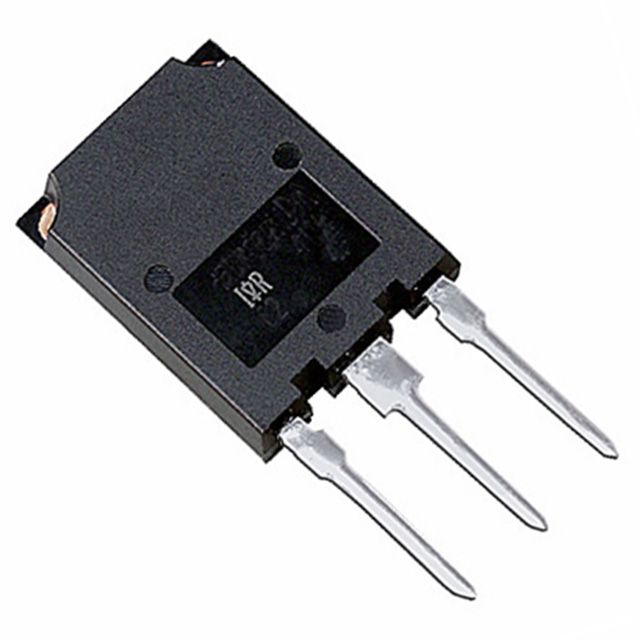

Description: IGBT W/DIODE 600V 85A SUPER247
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IRG4PSC71UD
File Size: 259784 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IRG4BAC50S
File Size: 138592 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IRG4PSH71
File Size: 150053 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
| Technical/Catalog Information | IRG4PSC71UD |
| Vendor | International Rectifier |
| Category | Discrete Semiconductor Products |
| Input Type | Standard |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 85A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 60A |
| Power - Max | 350W |
| Mounting Type | Through Hole |
| Package / Case | Super-247-3 (Straight Leads) |
| Packaging | Bag |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | IRG4PSC71UD IRG4PSC71UD |
|
Parameter |
Max. |
Units | |
|
VCES |
Collector-to-Emitter Voltage |
600 |
V |
|
IC @ TC = 25 |
Continuous Collector Current |
85 |
A |
|
IC @ TC = 100 |
Continuous Collector Current |
60 | |
|
ICM |
Pulsed Collector Current |
200 | |
|
ILM |
Clamped Inductive Load Current |
200 | |
| IF @ TC = 100 | Diode Continuous Forward Current |
60 | |
| IFM | Diode Maximum Forward Current |
350 | |
|
VGE |
Gate-to-Emitter Voltage |
±20 |
V |
|
PD @ TC = 25 |
Maximum Power Dissipation |
350 |
W |
|
PD @ TC = 100 |
Maximum Power Dissipation |
140 | |
|
TJ TSTG |
Operating Junction and Storage Temperature Range |
-55 to + 150 |
|
| Soldering Temperature, for 10 seconds |
300 (0.063 in. (1.6mm) from case |
| Technical/Catalog Information | IRG4PSC71UDPBF |
| Vendor | International Rectifier |
| Category | Discrete Semiconductor Products |
| Input Type | Standard |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 85A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 60A |
| Power - Max | 350W |
| Mounting Type | Through Hole |
| Package / Case | Super-247-3 (Straight Leads) |
| Packaging | Bag |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IRG4PSC71UDPBF IRG4PSC71UDPBF |
