IRGP4072, IRGP4072DPBF, IRGP4085

Table of contents:
Info of IRGP4072
Info of IRGP4072DPBF
Info of IRGP4085

IRGP4072, IRGP4072DPBF, IRGP4085 Selling Leads, Datasheet

MFG:International Rectifier Category:Discrete Semiconductor Products Package Cooled:TO-3P D/C:06+

IRGP4072, IRGP4072DPBF, IRGP4085 Datasheet download

Five Points

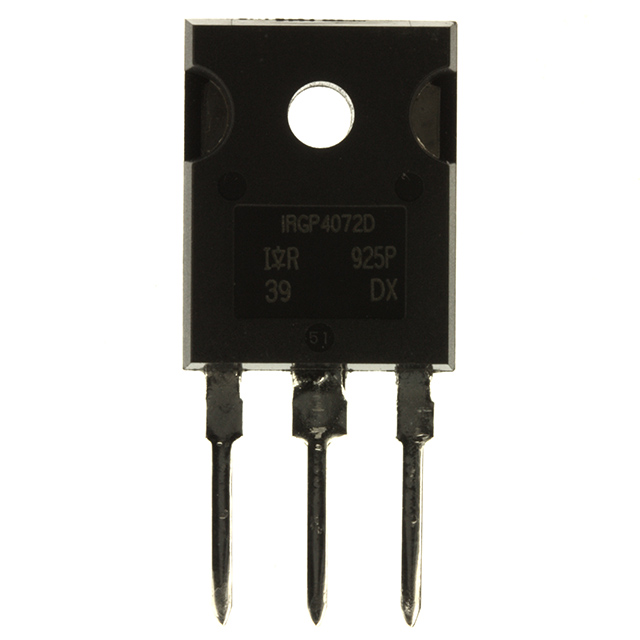

Part Number: IRGP4072DPBF

Category: Discrete Semiconductor Products

MFG: International Rectifier

Package Cooled: TO-3P

D/C: 06+

Description: IGBT 300V 70A W/DIODE TO-247AC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IRGP4072DPBF Parameters

Technical/Catalog Information	IRGP4072DPBF
Vendor	International Rectifier
Category	Discrete Semiconductor Products
Input Type	Standard
Voltage - Collector Emitter Breakdown (Max)	300V
Current - Collector (Ic) (Max)	70A
Vce(on) (Max) @ Vge, Ic	1.7V @ 15V, 40A
Power - Max	180W
Mounting Type	Through Hole
Package / Case	TO-247AC
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IRGP4072DPBF IRGP4072DPBF

IRGP4072DPBF Maximum Ratings

	Parameter	Max.	Units
V_CES	Collector-to-Emitter Voltage	300	V
I_C @ T_C = 25	Continuous Collector Current	70	A
I_C@ T_C = 100	Continuous Collector Current	40
I_CM	Pulse Collector Current	120
I_LM	Clamped Inductive Load Current	120
I_F @ T_C= 25	Diode Continous Forward Current	70
I_F @ TC = 100	Diode Continous Forward Current	40
I_FM	Diode Maximum Forward Current	120
V_GE	Continuous Gate-to-Emitter Voltage	±20	V
V_GE	Transient Gate-to-Emitter Voltage	±30	V
P_D @ T_C = 25	Maximum Power Dissipation	180	W
P_D @ T_C = 100	Maximum Power Dissipation	71	W
T_JT_STG	Operating Junction and Storage Temperature Range	-55 to +150
	Soldering Temperature, for 10 sec.	300 (0.063 in. (1.6mm) from case)
	Mounting Torque, 6-32 or M3 Screw	10 lbf`in (1.1 N`m)

IRGP4072DPBF Features

• Low V_{CE (ON)} Trench IGBT Technology
• Low switching losses
• Maximum Junction temperature 150
• Square RBSOA
• 100% of the parts tested for clamped inductive load
• Ultra fast soft Recovery Co-Pak Diode
• Tight parameter distribution
• Lead Free Package

IRGP4072DPBF Typical Application

• Uninterruptible Power Supplies
• Battery operated vehicles
• Welding
• Solar converters and inverters
