IRS2110PBF, IRS2110SPBF, IRS2110STRPBF

IRS2110PBF, IRS2110SPBF, IRS2110STRPBF Selling Leads, Datasheet

MFG:International Rectifier (VA)  Category:Integrated Circuits (ICs)  Package Cooled:DIP  D/C:06+

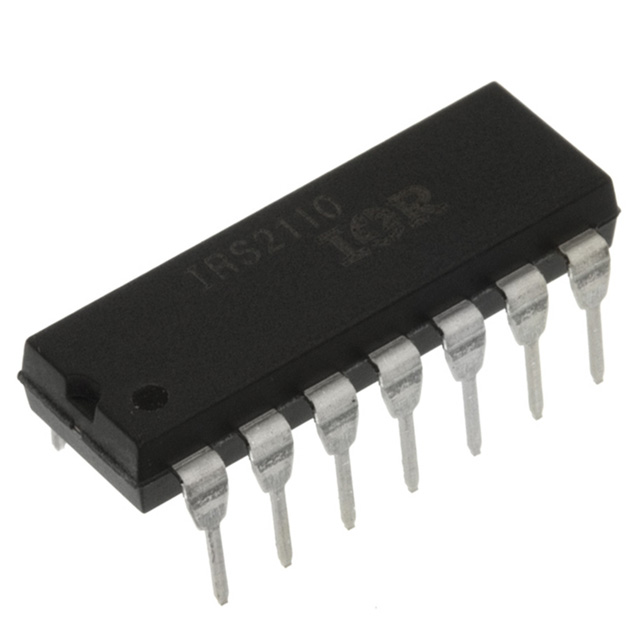

IRS2110PBF Picture

IRS2110PBF, IRS2110SPBF, IRS2110STRPBF Datasheet download

Five Points

Part Number: IRS2110PBF

Category: Integrated Circuits (ICs)

MFG: International Rectifier (VA)

Package Cooled: DIP

D/C: 06+

Description: IC DRIVER HIGH/LOW SIDE 16-SOIC

Price Break

1
25
100
250
500
1000
2500
10000

Unit Price

4.32000
2.95640
2.35150
2.20320
2.10816
2.02608
1.92960
1.80000

Extended Price

4.32
73.91
235.15
550.80
1054.08
2026.08
4824.00
18000.00

(All prices are in USD) Prices for reference only
Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

IRS2110PBF Suppliers

More IRS2110PBF Suppliers

Select All

  • IRS2110PBF

  • Vendor: IR D/C: 10+& Qty: 10000 Note: our new and original stock in China  Adddate: 2024-03-28
  • Inquire Now
  • shanghhai xinshen   China
    Contact: Mr.Mrliu   MSN:ldstar8@msn.com
    Tel: 0086-0755-18955684138
    Fax: 0086-0755-22142437
    (22)
  • IRS2001PBF

  • Vendor: IR D/C: 10+& Qty: 10000 Note: our new and original stock in China  Adddate: 2024-03-28
  • Inquire Now
  • shanghhai xinshen   China
    Contact: Mr.Mrliu   MSN:ldstar8@msn.com
    Tel: 0086-0755-18955684138
    Fax: 0086-0755-22142437
    (22)
  • IRS2003PBF

  • Vendor: IR D/C: 10+& Qty: 10000 Note: our new and original stock in China  Adddate: 2024-03-28
  • Inquire Now
  • shanghhai xinshen   China
    Contact: Mr.Mrliu   MSN:ldstar8@msn.com
    Tel: 0086-0755-18955684138
    Fax: 0086-0755-22142437
    (22)

About IRS20124S

PDF/DataSheet Download

Datasheet: IRS20124S

File Size: 223917 KB

Manufacturer: IRF [International Rectifier]

Download : Click here to Download

Related PDF Download

Related Part Number

IRS2110SPBF Suppliers

More IRS2110SPBF Suppliers

Select All

  • IRS2001PBF

  • Vendor: IR D/C: 10+& Qty: 10000 Note: our new and original stock in China  Adddate: 2024-03-28
  • Inquire Now
  • shanghhai xinshen   China
    Contact: Mr.Mrliu   MSN:ldstar8@msn.com
    Tel: 0086-0755-18955684138
    Fax: 0086-0755-22142437
    (22)
  • IRS2003PBF

  • Vendor: IR D/C: 10+& Qty: 10000 Note: our new and original stock in China  Adddate: 2024-03-28
  • Inquire Now
  • shanghhai xinshen   China
    Contact: Mr.Mrliu   MSN:ldstar8@msn.com
    Tel: 0086-0755-18955684138
    Fax: 0086-0755-22142437
    (22)

About IRS20124S

PDF/DataSheet Download

Datasheet: IRS20124S

File Size: 223917 KB

Manufacturer: IRF [International Rectifier]

Download : Click here to Download

Related PDF Download

Related Part Number

IRS2110STRPBF Suppliers

More IRS2110STRPBF Suppliers

Select All

  • IRS2001PBF

  • Vendor: IR D/C: 10+& Qty: 10000 Note: our new and original stock in China  Adddate: 2024-03-28
  • Inquire Now
  • shanghhai xinshen   China
    Contact: Mr.Mrliu   MSN:ldstar8@msn.com
    Tel: 0086-0755-18955684138
    Fax: 0086-0755-22142437
    (22)
  • IRS2003PBF

  • Vendor: IR D/C: 10+& Qty: 10000 Note: our new and original stock in China  Adddate: 2024-03-28
  • Inquire Now
  • shanghhai xinshen   China
    Contact: Mr.Mrliu   MSN:ldstar8@msn.com
    Tel: 0086-0755-18955684138
    Fax: 0086-0755-22142437
    (22)
  • IRS2004PBF

  • Vendor: IR D/C: 10+& Qty: 10000 Note: our new and original stock in China  Adddate: 2024-03-28
  • Inquire Now
  • shanghhai xinshen   China
    Contact: Mr.Mrliu   MSN:ldstar8@msn.com
    Tel: 0086-0755-18955684138
    Fax: 0086-0755-22142437
    (22)

About IRS20124S

PDF/DataSheet Download

Datasheet: IRS20124S

File Size: 223917 KB

Manufacturer: IRF [International Rectifier]

Download : Click here to Download

Related PDF Download

Related Part Number

IRS2110PBF Parameters

Technical/Catalog InformationIRS2110PBF
VendorInternational Rectifier
CategoryIntegrated Circuits (ICs)
ConfigurationHigh and Low Side, Independent
Voltage - Supply10 V ~ 20 V
Current - Peak2.5A
Delay Time130ns
Package / Case14-DIP (300 mil)
PackagingTube
Number of Outputs2
Input TypeNon-Inverting
Number of Configurations1
Operating Temperature-40°C ~ 125°C
High Side Voltage - Max (Bootstrap)500V
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IRS2110PBF
IRS2110PBF

IRS2110PBF General Description

The IRS2110/IRS2113 are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 500 V or 600 V.

IRS2110PBF Maximum Ratings

Symbol Definition Min. Max. Units
VB High side floating supply voltage (IRS2110)
(IRS2113)
-0.3
-0.3
520 (Note 1)
620 (Note 1)
V
VS
VHO
High side floating supply offset voltage
High side floating output voltage
VB - 20
VS - 0.3
VB + 0.3
VB + 0.3
VCC
VLO
VDD
Low side fixed supply voltage
Low side output voltage
Logic supply voltage
-0.3
-0.3
-0.3
20 (Note 1)
VCC + 0.3
VSS+20 (Note 1)
VSS
VIN
Logic supply offset voltage
Logic input voltage (HIN, LIN, & SD)
VCC - 20
VSS - 0.3
VCC + 0.3
VDD + 0.3
dVs/dt Allowable offset supply voltage transient (Fig. 2) - 50 V/ns
PD Package power dissipation @ TA +25 (14 lead DIP)
(16 lead SOIC)
-
-
1.6
1.25
W
RTHJA Thermal resistance, junction to ambient (14 lead DIP)
(16 lead SOIC)
-
-
75
100
/W
TJ
TS
TL
Junction temperature
Storage temperature
Lead temperature (soldering, 10 seconds)
-
-55
-
150
150
300


Note 1: All supplies are fully tested at 25 V, and an internal 20 V clamp exists for each supply.

IRS2110PBF Features

• Floating channel designed for bootstrap operation
• Fully operational to +500 V or +600 V
• Tolerant to negative transient voltage, dV/dt immune
• Gate drive supply range from 10 V to 20 V
• Undervoltage lockout for both channels
• 3.3 V logic compatible
• Separate logic supply range from 3.3 V to 20 V
• Logic and power ground ±5V offset
• CMOS Schmitt-triggered inputs with pull-down
• Cycle by cycle edge-triggered shutdown logic
• Matched propagation delay for both channels
• Outputs in phase with inputs

IRS2110SPBF Parameters

Technical/Catalog InformationIRS2110SPBF
VendorInternational Rectifier
CategoryIntegrated Circuits (ICs)
ConfigurationHigh and Low Side, Independent
Voltage - Supply10 V ~ 20 V
Current - Peak2.5A
Delay Time130ns
Package / Case16-SOIC (7.5mm Width)
PackagingTube
Number of Outputs2
Input TypeNon-Inverting
Number of Configurations1
Operating Temperature-40°C ~ 125°C
High Side Voltage - Max (Bootstrap)500V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IRS2110SPBF
IRS2110SPBF

IRS2110STRPBF Parameters

Technical/Catalog InformationIRS2110STRPBF
VendorInternational Rectifier (VA)
CategoryIntegrated Circuits (ICs)
ConfigurationHigh and Low Side, Independent
Voltage - Supply10 V ~ 20 V
Current - Peak2.5A
Delay Time130ns
Package / Case16-SOIC (7.5mm Width)
PackagingCut Tape (CT)
Number of Outputs2
Input TypeNon-Inverting
Number of Configurations1
Operating Temperature-40°C ~ 125°C
High Side Voltage - Max (Bootstrap)500V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IRS2110STRPBF
IRS2110STRPBF
IRS2110STRPBFCT ND
IRS2110STRPBFCTND
IRS2110STRPBFCT
