| Technical/Catalog Information | IRS2168DSPBF |
| Vendor | International Rectifier |
| Category | Integrated Circuits (ICs) |
| Package / Case | 16-SOIC (3.9mm Width) |
| Packaging | Tube |
| Voltage - Supply | 12.5 V ~ 15.6 V |
| Type | PFC/Ballast Controller |
| Current - Supply | 10mA |
| Current - Output | 260mA |
| Frequency | 42.5 ~ 46.5 kHz |
| Operating Temperature | -25°C ~ 125°C |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IRS2168DSPBF IRS2168DSPBF |
The IRS2168D is a fully integrated, fully protected 600 V ballast control IC designed to drive all types of fluorescent lamps. The IRS2168D is based on the popular IR2166 control IC with additional improvements to increase ballast performance. The PFC circuitry operates in critical conduction mode and provides high PF, low THD and DC bus regulation. The IRS2168D features include programmable preheat and run frequencies, programmable preheat time, programmable PFC over-current protection, closed-loop half-bridge ignition current regulation, and programmable end-of-life protection. Comprehensive protection features such as protection from failure of a lamp to strike, filament failures, end-of-life protection, DC bus undervoltage reset as well as an automatic restart function, have been included in the design.
Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. All voltage parameters are absolute voltages referenced to COM, all currents are defned positive into any lead. The thermal resistance and power dissipation ratings are measured under board mounted and still air conditions.
| Symbol | Definition | Min. | Max. | Units | |
| VB | VB pin high-side floating supply voltage | -0.3 | 625 | V | |
| VS | VS pin high-side floating supply offset voltage | VB 25 | VB+0.3 | ||
| VHO | HO pin high-side floating output voltage | VB 0.3 | VB+0.3 | ||
| VLO | LO pin low-side output voltage | -0.3 | VCC+0.3 | ||
| VPFC | PFC gate driver output voltage | ||||
| IO,MAX | Maximum allowable output current (HO, LO, PFC) due to external power transistor miller effect |
-500 | 500 | mA | |
| ICC | VCC current (see Note 1) | -25 | 25 | ||
| VBUS | VBUS pin voltage | -0.3 | VCC+0.3 | V | |
| VCPH | CPH pin voltage | ||||
| VCOMP | COMP pin voltage | ||||
| VZX | ZX pin voltage | ||||
| VOC | OC pin voltage | ||||
| VSD/EOL | SD/EOL pin voltage | ||||
| VCS | CS pin voltage | ||||
| VVCO | VCO pin voltage | -0.3 | 6 | V | |
| ICPH | CPH pin current | -5 | 5 | mA | |
| IVCO | VCO pin current | ||||
| IFMIN | FMIN pin current | ||||
| ICOMP | COMP pin current | ||||
| IZX | ZX pin current | ||||
| IOC | OC pin current | ||||
| ISD/EOL | SD/EOL pin current | ||||
| ICS | CS pin current | ||||
| dV/dt | Allowable VS pin offset voltage slew rate | -50 | 50 | V/ns | |
| PD | Package power dissipation @ TA +25 PD = (TJMAX-TA)/RJA |
(16-Pin DIP) | --- | 1.8 | W |
| (16-Pin SOIC) | --- | 1.4 | |||
| RJA | Thermal resistance, junction to ambient | (16-Pin DIP) | --- | 70 | /W |
| (16-Pin SOIC) | --- | 86 | |||
| TJ | Junction temperature | -55 | 150 | ||
| TS | Storage temperature | -55 | 150 | ||
| TL | Lead temperature (soldering, 10 seconds) | --- | 300 | ||

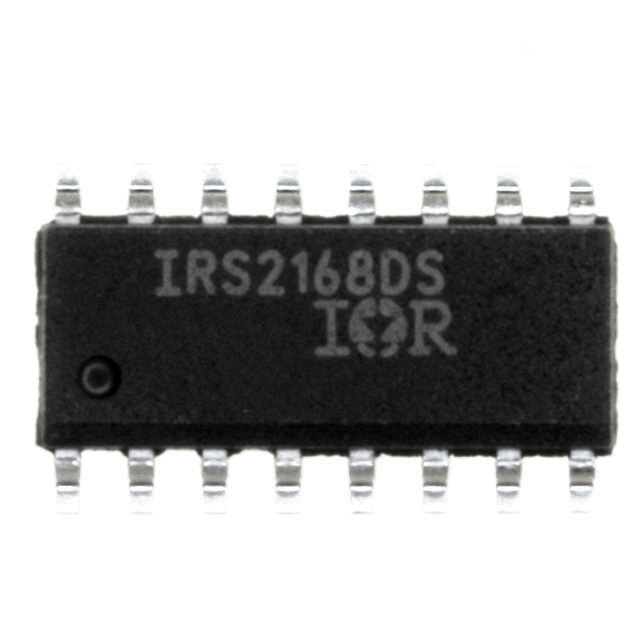

| Technical/Catalog Information | IRS2168DSTRPBF |
| Vendor | International Rectifier (VA) |
| Category | Integrated Circuits (ICs) |
| Package / Case | 16-SOIC (3.9mm Width) |
| Packaging | Digi-Reel? |
| Voltage - Supply | 12.5 V ~ 15.6 V |
| Type | PFC/Ballast Controller |
| Current - Supply | 10mA |
| Current - Output | 260mA |
| Frequency | 42.5 ~ 46.5 kHz |
| Operating Temperature | -25°C ~ 125°C |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IRS2168DSTRPBF IRS2168DSTRPBF IRS2168DSTRPBFDKR ND IRS2168DSTRPBFDKRND IRS2168DSTRPBFDKR |
| Technical/Catalog Information | IRS21814PBF |
| Vendor | International Rectifier |
| Category | Integrated Circuits (ICs) |
| Configuration | High and Low Side, Independent |
| Voltage - Supply | 10 V ~ 20 V |
| Current - Peak | 1.9A |
| Delay Time | 180ns |
| Package / Case | 14-DIP |
| Packaging | Tube |
| Number of Outputs | 2 |
| Input Type | Non-Inverting |
| Number of Configurations | 1 |
| Operating Temperature | -40°C ~ 125°C |
| High Side Voltage - Max (Bootstrap) | 600V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IRS21814PBF IRS21814PBF |
