MFG:Intersil Category:RF and RFID Package Cooled:BGA/121 D/C:dc0540
ISL5216KI, ISL5216KI-1, ISL5216KIZ Datasheet download
Category: RF and RFID
MFG: Intersil
Package Cooled: BGA/121
D/C: dc0540
Description: IC DOWNCONVERTER DGTL 4CH 196BGA
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: ISL5216KI
File Size: 341261 KB
Manufacturer: INTERSIL
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ISL5216KI-1Z
File Size: 1121295 KB
Manufacturer: INTERSIL
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ISL5216KIZ
File Size: 341261 KB
Manufacturer: INTERSIL
Download : Click here to Download
| Technical/Catalog Information | ISL5216KI |
| Vendor | Intersil |
| Category | ICs, Modules, Accessories for RF, RFID |
| Mounting Type | Surface (SMD, SMT) |
| Package Name | 196-BGA 12x12 |
| Typical RF Application | TDMA |
| Typical RF Application | IS-95 |
| Typical RF Application | CDMA |
| Typical RF Application | W-CDMA |
| Typical RF Application | UMTS |
| Type | Cascadable |
| Modulation Type | I/Q |
| Modulation Type | FM |
| Supply Current | 570.000 mA [Typ] |
| Supply Voltage | 2.50 V [Typ] |
| Supply Voltage | 3.30 V [Typ] |
| Packaging | Tray |
| Length | 12.000 mm [Typ] |
| Width | 12.000 mm [Typ] |
| Thickness | 0.9300 mm [Min] |
| Thickness | 1.1100 mm [Max] |
| Operating Temperature | -40 °C [Min] |
| Operating Temperature | 85 °C [Max] |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | ISL5216KI ISL5216KI |
The ISL5216KI is designed as quad programmable digital downconverter (QPDC) for high dynamic range applications such as cellular basestations where multiple channel processing is required in a small physical space. The QPDC combines into a single package a set of four channels which include: digital mixers, a quadrature carrier NCO, digital filters, a resampling filter, a cartesian-to-polar coordinate converter and an AGC loop.
It has twelve features. (1)Up to 95MSPS input. (2)Four independently programmable downconverter channels in a single package. (3)Four parallel 17-bit inputs providing 16-bit fixed or one of several 17-bit floating point formats. (4)32-bit programmable carrier NCO with > 115dB SFDR. (5)110dB FIR out of band attenuation. (6)Decimation from 4 to >65536. (7)24-bit internal data path. (8)Digital AGC with up to 96dB of gain range. (9)Filter functions include 1- to 5-stage CIC filter, halfband decimation and interpolation FIR filtering, programmable FIR filtering and resampling FIR filtering. (10)Its cascadable filtering for additional bandwidth. (11)Four independent serial outputs. (12)2.5V core, 3.3V I/O operation. That are all the main features.
Some absolute maximum ratings have been concluded into several points as follow. (1)Its supply voltage would be 4.6V. (2)Its core supply voltage would be 3.5V. (3)Its input output or I/O voltage would be from GND-0.5V to Vcc+0.5V. (4)Its ESD classification is class I.
Also some operating conditions are concluded as follow. (1)Its voltage range I/O would be from +3.135V to +3.465V. (2)Its voltage range core would be from +2.375V to +2.625V. (3)Its temperature range industrial would be from -40°C to +85°C. (4)Its input low voltage would be from 0V and max 0.8V. (5)Its input high voltage would be 2V to IO Vcc. And so on. If you have any question or suggestion or want to know more information please contact us for details. Thank you!
| Technical/Catalog Information | ISL5216KI-1 |
| Vendor | Intersil |
| Category | ICs, Modules, Accessories for RF, RFID |
| Mounting Type | Surface (SMD, SMT) |
| Package Name | 196-BGA 15x15 |
| Typical RF Application | TDMA |
| Typical RF Application | IS-95 |
| Typical RF Application | CDMA |
| Typical RF Application | W-CDMA |
| Typical RF Application | UMTS |
| Type | Cascadable |
| Modulation Type | I/Q |
| Modulation Type | FM |
| Supply Current | 570.000 mA [Typ] |
| Supply Voltage | 2.50 V [Typ] |
| Supply Voltage | 3.30 V [Typ] |
| Packaging | Tray |
| Length | 15.000 mm [Typ] |
| Width | 15.000 mm [Typ] |
| Thickness | 0.9300 mm [Min] |
| Thickness | 1.1100 mm [Max] |
| Operating Temperature | -40 °C [Min] |
| Operating Temperature | 85 °C [Max] |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | ISL5216KI 1 ISL5216KI1 |

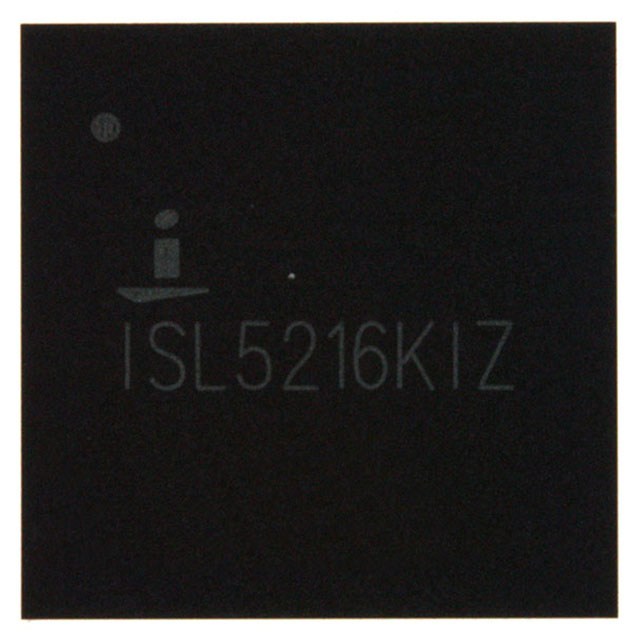

| Technical/Catalog Information | ISL5216KIZ |
| Vendor | Intersil |
| Category | RF and RFID |
| RF Type | Cellular, TDMA, IS-95, CDMA, W-CDMA, UMTS |
| Package / Case | 196-BGA |
| Frequency | - |
| Features | Programmable Downconverter |
| Packaging | Tray |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ISL5216KIZ ISL5216KIZ |
