ISL6840IB, ISL6840IU, ISL6841

Table of contents:
Info of ISL6840IB
Info of ISL6840IU
Info of ISL6841

ISL6840IB, ISL6840IU, ISL6841 Selling Leads, Datasheet

MFG:Intersil Category:Integrated Circuits (ICs) Package Cooled:Original D/C:SOP

ISL6840IB, ISL6840IU, ISL6841 Datasheet download

Five Points

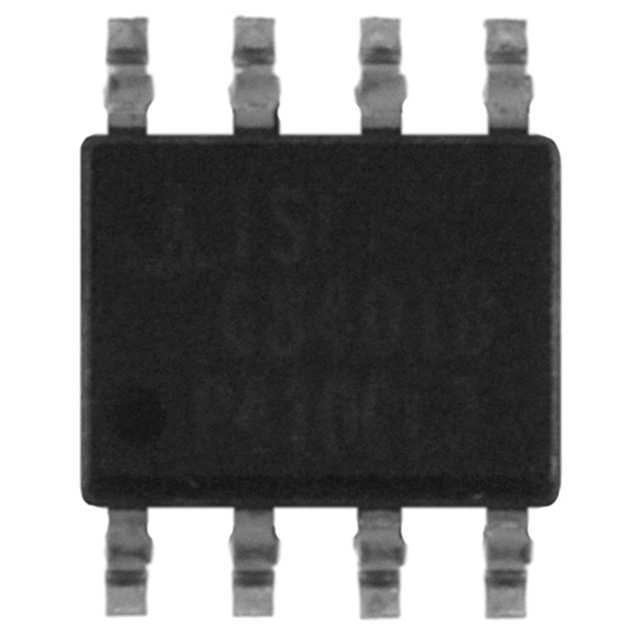

Part Number: ISL6840IB

Category: Integrated Circuits (ICs)

MFG: Intersil

Package Cooled: Original

D/C: SOP

Description: IC CTRLR PWM SGL-ENDED 8-MSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ISL6840IB Parameters

Technical/Catalog Information	ISL6840IB
Vendor	Intersil
Category	Integrated Circuits (ICs)
PWM Type	Voltage/Current Mode
Number of Outputs	1
Package / Case	8-SOIC
Packaging	Tube
Duty Cycle	100%
Voltage - Supply	7.5 V ~ 14 V
Frequency-Max	2MHz
Buck	Yes
Boost	Yes
Flyback	Yes
Inverting	No
Doubler	No
Divider	No
Cuk	No
Isolated	Yes
Drawing Number	*
Operating Temperature	-40°C ~ 105°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	ISL6840IB ISL6840IB

ISL6840IU Parameters

Technical/Catalog Information	ISL6840IU
Vendor	Intersil
Category	Integrated Circuits (ICs)
PWM Type	Voltage/Current Mode
Number of Outputs	1
Package / Case	8-MSOP, Micro8?, 8-uMAX, 8-uSOP,
Packaging	Tube
Duty Cycle	100%
Voltage - Supply	7.5 V ~ 14 V
Frequency-Max	2MHz
Buck	Yes
Boost	Yes
Flyback	Yes
Inverting	No
Doubler	No
Divider	No
Cuk	No
Isolated	Yes
Drawing Number	*
Operating Temperature	-40°C ~ 105°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	ISL6840IU ISL6840IU

ISL6841 General Description

The ISL6840, ISL6841, ISL6842, ISL6843, ISL6844, ISL6845 family of adjustable frequency, low power, pulse width modulating (PWM) current mode controllers is designed for a wide range of power conversion applications including boost, flyback, and isolated output configurations. Peak current mode control effectively handles power transients and provides inherent overcurrent protection. This advanced BiCMOS design is pin compatible with the industry standard 384x family of controllers and offers significantly improved performance. Features include low operating current, 60μA start-up current, adjustable operating frequency to 2MHz, and high peak current drive capability with 20ns rise and fall times.

ISL6841 Maximum Ratings

Supply Voltage, V_DD. . . . . . . . . . . . . . . . . . .   GND - 0.3V to +20.0V
OUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND - 0.3V to V_DD + 0.3V
Signal Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND - 0.3V to 6.0V
Peak GATE Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1A
ESD Classification
Human Body Model (Per MIL-STD-883 Method 3015.7). . .     2000V
Charged Device Model (Per EOS/ESD DS5.3, 4/14/93) . . .     1000V

ISL6841 Features

•1A MOSFET gate driver
•60µA startup current, 100µA maximum
•25ns propagation delay current sense to output
•Fast transient response with peak current mode control
•Adjustable switching frequency to 2MHz
•20ns rise and fall times with 1nF output load
•Trimmed timing capacitor discharge current for accurate deadtime/maximum duty cycle control
•High bandwidth error amplifier
•Tight tolerance voltage reference over line, load, and temperature
•Tight tolerance current limit threshold
•Pb-Free Plus Anneal Available (RoHS Compliant)

ISL6841 Typical Application

•Telecom and Datacom Power
•Wireless Base Station Power
•File Server Power
•Industrial Power Systems
•PC Power Supplies
•Isolated Buck and Flyback Regulators
•Boost Regulators

ISL6841 Connection Diagram
