ISL6841IB, ISL6842, ISL6842IBZ

Table of contents:
Info of ISL6841IB
Info of ISL6842
Info of ISL6842IBZ

ISL6841IB, ISL6842, ISL6842IBZ Selling Leads, Datasheet

MFG:Intersil Category:Integrated Circuits (ICs) Package Cooled:SOP8 D/C:SOP-8

ISL6841IB, ISL6842, ISL6842IBZ Datasheet download

Five Points

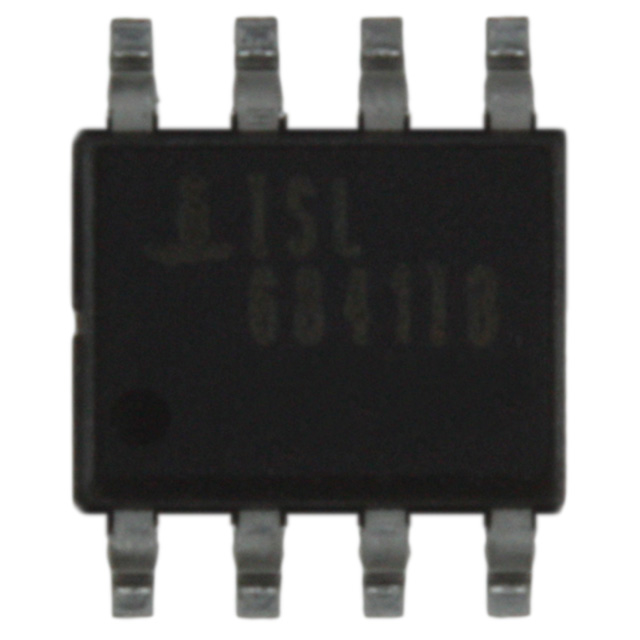

Part Number: ISL6841IB

Category: Integrated Circuits (ICs)

MFG: Intersil

Package Cooled: SOP8

D/C: SOP-8

Description: IC CTRLR PWM SGL-ENDED 8-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ISL6841IB Parameters

Technical/Catalog Information	ISL6841IB
Vendor	Intersil
Category	Integrated Circuits (ICs)
PWM Type	Voltage/Current Mode
Number of Outputs	1
Package / Case	8-SOIC
Packaging	Tube
Duty Cycle	50%
Voltage - Supply	7.5 V ~ 14 V
Frequency-Max	2MHz
Buck	Yes
Boost	Yes
Flyback	Yes
Inverting	No
Doubler	No
Divider	No
Cuk	No
Isolated	Yes
Drawing Number	*
Operating Temperature	-40°C ~ 105°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	ISL6841IB ISL6841IB

ISL6841IB General Description

Single-ended PWM Controller

ISL6841IB Features

1A MOSFET gate driver
60�A startup current, 100�A maximum
30ns propagation delay current sense to output
Fast transient response with peak current mode control
Adjustable switching frequency to 2MHz
20ns rise and fall times with 1nF output load
Trimmed timing capacitor discharge current for accurate deadtime/maximum duty cycle control
High bandwidth error amplifier
Tight tolerance voltage reference over line, load, and temperature
Tight tolerance current limit threshold
Pb-free available

ISL6841IB Typical Application

ISL6842 Datasheet

ISL6842 Parameters

ISL6842 Features

1A MOSFET gate driver
60�A startup current, 100�A maximum
30ns propagation delay current sense to output
Fast transient response with peak current mode control
Adjustable switching frequency to 2MHz
20ns rise and fall times with 1nF output load
Trimmed timing capacitor discharge current for accurate deadtime/maximum duty cycle control
High bandwidth error amplifier
Tight tolerance voltage reference over line, load, and temperature
Tight tolerance current limit threshold
Pb-free available

ISL6842 General Description

Single-ended PWM Controller

ISL6842 Maximum Ratings

Supply Voltage, V_DD. . . . . . . . . . . . . . . . . . .   GND - 0.3V to +20.0V
OUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND - 0.3V to V_DD + 0.3V
Signal Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND - 0.3V to 6.0V
Peak GATE Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1A
ESD Classification
Human Body Model (Per MIL-STD-883 Method 3015.7). . .     2000V
Charged Device Model (Per EOS/ESD DS5.3, 4/14/93) . . .     1000V

ISL6842 Features

1A MOSFET gate driver
60�A startup current, 100�A maximum
30ns propagation delay current sense to output
Fast transient response with peak current mode control
Adjustable switching frequency to 2MHz
20ns rise and fall times with 1nF output load
Trimmed timing capacitor discharge current for accurate deadtime/maximum duty cycle control
High bandwidth error amplifier
Tight tolerance voltage reference over line, load, and temperature
Tight tolerance current limit threshold
Pb-free available

ISL6842 Typical Application

ISL6842 Datasheet

ISL6842 Connection Diagram

ISL6842IBZ Parameters

Technical/Catalog Information	ISL6842IBZ
Vendor	Intersil
Category	Integrated Circuits (ICs)
PWM Type	Voltage/Current Mode
Number of Outputs	1
Package / Case	8-SOIC
Packaging	Tube
Duty Cycle	100%
Voltage - Supply	15 V ~ 18 V
Frequency-Max	2MHz
Buck	Yes
Boost	Yes
Flyback	Yes
Inverting	No
Doubler	No
Divider	No
Cuk	No
Isolated	Yes
Drawing Number	*
Operating Temperature	-40°C ~ 105°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ISL6842IBZ ISL6842IBZ
