ISL8485IP, ISL8487, ISL8487EIB

Table of contents:
Info of ISL8485IP
Info of ISL8487
Info of ISL8487EIB

ISL8485IP, ISL8487, ISL8487EIB Selling Leads, Datasheet

MFG:Intersil Category:Integrated Circuits (ICs) Package Cooled:DIP-8 D/C:08+/09+

ISL8485IP, ISL8487, ISL8487EIB Datasheet download

Five Points

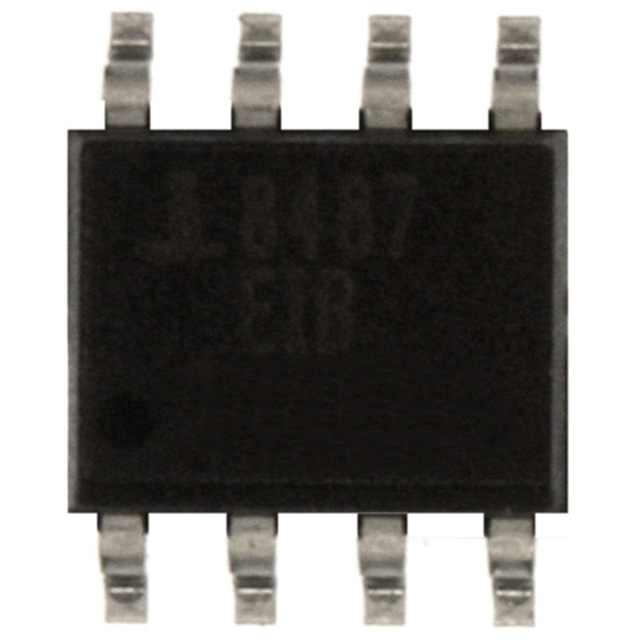

Part Number: ISL8487EIB

Category: Integrated Circuits (ICs)

MFG: Intersil

Package Cooled: DIP-8

D/C: 08+/09+

Description: IC TXRX RS-485/422 ESD 8-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ISL8487 Maximum Ratings

VCC to Ground. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Input Voltages
   DI, DE, RE . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to (VCC +0.5V)
Input/Output Voltages
   A/Y, B/Z . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -8V to +12.5V
RO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to (VCC +0.5V)
Short Circuit Duration
   Y, Z. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
ESD Rating
   HBM (Per MIL-STD-883, Method 3015.7) . . . . . . . . . . . . . . . >7kV

ISL8487 Typical Application

• High Node Count Networks
• Automated Utility Meter Reading Systems
• Factory Automation
• Security Networks
• Building Environmental Control Systems
• Industrial/Process Control Networks

ISL8487 Connection Diagram

ISL8487EIB Parameters

Technical/Catalog Information	ISL8487EIB
Vendor	Intersil
Category	Integrated Circuits (ICs)
Number of Drivers/Receivers	1/1
Type	Transceiver
Voltage - Supply	4.5 V ~ 5.5 V
Package / Case	8-SOIC (3.9mm Width)
Packaging	Tube
Protocol	RS422, RS485
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	ISL8487EIB ISL8487EIB
