MFG:IXYS Category:Integrated Circuits (ICs) Package Cooled:DIP-8 D/C:06+
IXDD408YI, IXDD409PI, IXDD409Y Datasheet download
Category: Integrated Circuits (ICs)
MFG: IXYS
Package Cooled: DIP-8
D/C: 06+
Description: IC MOSFET DRVR 9A LOSIDE 8-DIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IXDD408YI
File Size: 277691 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IXDD409PI
File Size: 265572 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IXDD404
File Size: 682023 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download

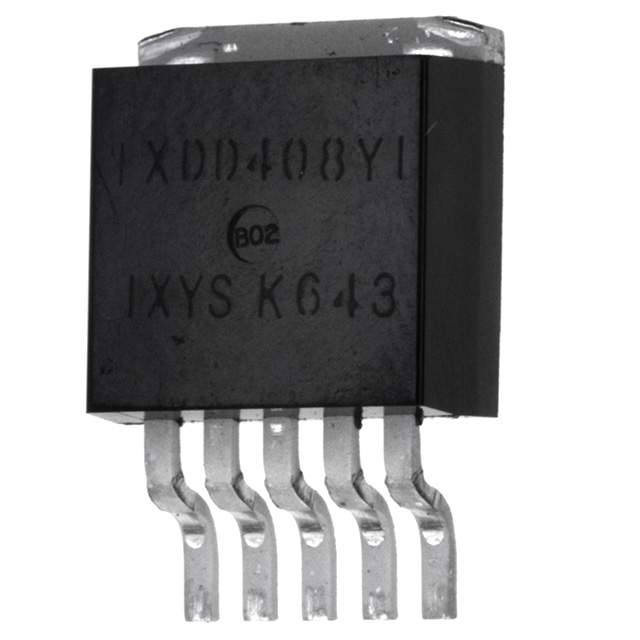

| Technical/Catalog Information | IXDD408YI |
| Vendor | IXYS |
| Category | Integrated Circuits (ICs) |
| Configuration | Low-Side |
| Voltage - Supply | 4.5 V ~ 25 V |
| Current - Peak | 8A |
| Delay Time | 38ns |
| Package / Case | D²Pak, SMD-220, TO-263 (5 leads + tab) |
| Packaging | Tube |
| Number of Outputs | 1 |
| Input Type | Non-Inverting |
| Number of Configurations | 1 |
| Operating Temperature | -40°C ~ 85°C |
| High Side Voltage - Max (Bootstrap) | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IXDD408YI IXDD408YI |
The IXDD408 is a high speed high current gate driver specifically designed to drive the largest MOSFETs and IGBTs to their minimum switching time and maximum practical frequency limits. The IXDD480 can source and sink 8A of peak current while producing voltage rise and fall times of less than 30ns. The input of the driver is compatible with TTL or CMOS and is fully immune to latch up over the entire operating range. Designed with small internal delays, cross conduction/current shootthrough is virtually eliminated in the IXDD408. Its features and wide safety margin in operating voltage and power make the IXDD408 unmatched in performance and value.
The IXDD408 incorporates a unique ability to disable the output under fault conditions. When a logical low is forced into the Enable input, both final output stage MOSFETs (NMOS and PMOS) are turned off. As a result, the output of the IXDD408 enters a tristate mode and achieves a Soft Turn-Off of the MOSFET/IGBT when a short circuit is detected. This helps prevent damage that could occur to the MOSFET/IGBT if it were to be switched off abruptly due to a dv/dt over-voltage transient.
The IXDD408 is available in the standard 8-pin P-DIP (PI), SOP-8 (SI), 5-pin TO-220 (CI) and in the TO-263 (YI) surface-mount package.
| Parameter | Value |
| Supply Voltage | 25 V |
| All Other Pins | -0.3V to VCC + 0.3V |
| Power Dissipation, TAMBIENT 25 8 Pin PDIP (PI) 8 Pin SOIC (SI) TO220 (CI), TO263 (YI) |
975mW 1055mW 17W |
| Derating Factors (to Ambient) 8 Pin PDIP (PI) 8 Pin SOIC (SI) TO220 (CI), TO263 (YI) |
7.6mW/ 8.2mW/ 0.14W/ |
| Storage Temperature | -65 to 150 |
| Soldering Lead Temperature (10 seconds maximum) |
300 |
| Technical/Catalog Information | IXDD409PI |
| Vendor | IXYS |
| Category | Integrated Circuits (ICs) |
| Configuration | Low-Side |
| Voltage - Supply | 4.5 V ~ 35 V |
| Current - Peak | 9A |
| Delay Time | 36ns |
| Package / Case | 8-DIP |
| Packaging | Tube |
| Number of Outputs | 1 |
| Input Type | Non-Inverting |
| Number of Configurations | 1 |
| Operating Temperature | -55°C ~ 125°C |
| High Side Voltage - Max (Bootstrap) | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IXDD409PI IXDD409PI |
The IXDD409/IXDI409/IXDN409 are high speed high current gate drivers specifically designed to drive the largest MOSFETs and IGBTs to their minimum switching time and maximum practical frequency limits. The IXDD409/IXDI409/IXDN409 can source and sink 9A of peak current while producing voltage rise and fall times of less than 30ns. The input of the drivers are compatible with TTL or CMOS and are fully immune to latch up over the entire operating range. Designed with small internal delays, cross conduction/ current shoot-through is virtually eliminated in the IXDD409/ IXDI409/IXDN409. Their features and wide safety margin in operating voltage and power make the drivers unmatched in performance and value.
The IXDD409 incorporates a unique ability to disable the output under fault conditions. When a logical low is forced into the Enable input, both final output stage MOSFETs (NMOS and PMOS) are turned off. As a result, the output of the IXDD409 enters a tristate mode and achieves a Soft Turn- Off of the MOSFET/IGBT when a short circuit is detected.
This helps prevent damage that could occur to the MOSFET/ IGBT if it were to be switched off abruptly due to a dv/dt overvoltage transient.
The IXDN409 is configured as a non-inverting gate driver, and the IXDI409 is an inverting gate driver. The IXDD409/IXDI409/IXDN409 are available in the standard 8-pin P-DIP (PI), SOP-8 (SI), 5-pin TO-220 (CI) and in the TO-263 (YI) surface-mount packages.
| Parameter | Value |
| Supply Voltage | 25V |
| All Other Pins | -0.3V to VCC + 0.3V |
| Power Dissipation TCASE 85: TO220 (CI), TO263 (YI) TCASE 125: TO220 (CM), TO263 (YM) |
975mW 1055mW 17W |
| Power Dissipation, TAMBIENT 25 8 Pin PDIP (PI) TO220 (CI, CM), TO263 (YI, YM) |
975mW 2W |
| Derating Factors (to Ambient) 8 Pin PDIP (PI) 8 Pin SOIC (SI) TO220 (CI), TO263 (YI) |
7.6mW/ 8.2mW/ 0.14W/ |
| Power Dissipation, TAMBIENT 25 8 Pin PDIP (PI) TO220 (CI, CM), TO263 (YI, YM) |
-65 to 150 |
| Soldering Lead Temperature (10 seconds maximum) |
300 |
