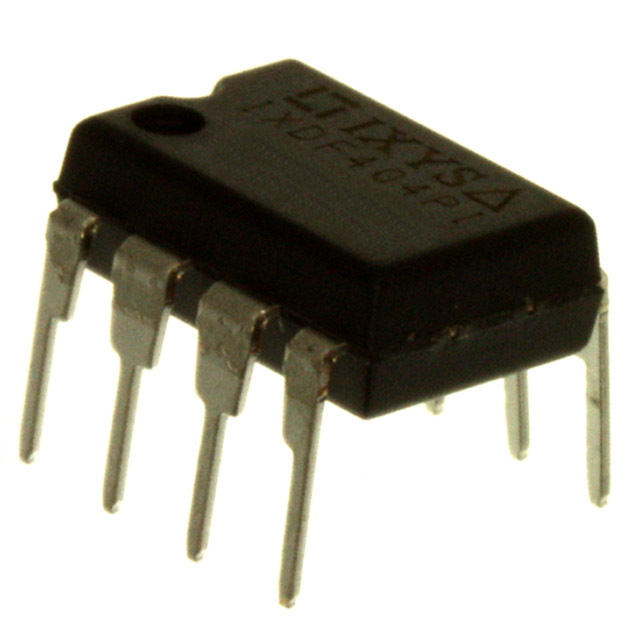

The IXDN404/IXDI404/IXDF404 is comprised of two 4 Ampere CMOS high speed MOSFET drivers. Each output can source and sink 4A of peak current while producing voltage rise and fall times of less than 15ns to drive the latest IXYS MOSFETs & IGBT's. The input of the driver is compatible with TTL or CMOS and is fully immune to latch up over the entire operating range. A patent-pending circuit virtually eliminates CMOS power supply cross conduction and current shoot-through. Improved speed and drive capabilities are further enhanced by very low, matched rise and fall times.
The IXDN404 is configured as a dual non-inverting gate driver, the IXDI404 is a dual inverting gate driver, and the IXDF404 is a dual inverting + non-inverting gate driver.
The IXDN404/IXDI404/IXDF404 family are available in the standard 8 pin P-DIP (PI), SOP-8 (SI) and SOP-16 (SI-16) packages.
IXDF404PI Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . ..25V All Other Pins . . . . . . -0.3V to VCC + 0.3V Junction Temperature . . . . . . . . . . .150 Storage Temperature . . . . -65 to 150 Soldering Lead Temperature . . . . . 300
IXDF404PI Features
• Built using the advantages and compatibility of CMOS and IXYS HDMOSTM processes • Latch-Up Protected Over Entire Operating Range • High Peak Output Current: 4A Peak • Wide Operating Range: 4.5V to 25V • High Capacitive Load Drive Capability: 1800pF in <15ns • Matched Rise And Fall Times • Low Propagation Delay Time • Low Output Impedance • Low Supply Current • Two Drivers in Single Chip
IXDF404PI Typical Application
• Driving MOSFETs and IGBTs • Motor Controls • Line Drivers • Pulse Generators • Local Power ON/OFF Switch • Switch Mode Power Supplies (SMPS) • DC to DC Converters • Pulse Transformer Driver • Class D Switching Amplifiers • Limiting di/dt Under Short Circuit
IXDF404PI Connection Diagram
IXDH20N120 Parameters
Technical/Catalog Information
IXDH20N120
Vendor
IXYS
Category
Discrete Semiconductor Products
Input Type
Standard
Voltage - Collector Emitter Breakdown (Max)
1200V
Current - Collector (Ic) (Max)
38A
Vce(on) (Max) @ Vge, Ic
3V @ 15V, 20A
Power - Max
200W
Mounting Type
Through Hole
Package / Case
TO-247AD
Packaging
*
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
IXDH20N120 IXDH20N120
IXDH20N120 Maximum Ratings
Symbol
Conditions
Maximum
Ratings
VCES
TJ = 25 to 150
1200
v
VCGR
TJ = 25 to 150; RGE = 20K
1200
v
VGES
Continuous
±20
V
VGEM
Transient
±30
V
IC25
TC = 25,
38
A
IC90
TC = 90
25
A
ICM
TC = 25°C,tp= 1 ms
50
A
RBSOA
VGE= 15 V, TVJ = 125, RG = 47 VCE = 0.8•VCES Clamped inductive load, L = 30 H
Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s
300
Md
Mounting torque
0.8 - 1.2
Nm
Weight
TO-247
6
g
IXDH20N120 Features
· NPT IGBT technology · low saturation voltage · low switching losses · square RBSOA, no latch up · high short circuit capability · positive temperature coefficient for easy paralleling · MOS input, voltage controlled · optional ultra fast diode · International standard package
IXDH20N120 Typical Application
· AC motor speed control · DC servo and robot drives · DC choppers · Uninteruptible power supplies (UPS) · Switch-mode and resonant-mode power supplies
IXDH20N120D1 Parameters
Technical/Catalog Information
IXDH20N120D1
Vendor
IXYS
Category
Discrete Semiconductor Products
Input Type
Standard
Voltage - Collector Emitter Breakdown (Max)
1200V
Current - Collector (Ic) (Max)
38A
Vce(on) (Max) @ Vge, Ic
3V @ 15V, 20A
Power - Max
200W
Mounting Type
Through Hole
Package / Case
TO-247AD
Packaging
Tube
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
IXDH20N120D1 IXDH20N120D1
IXDH20N120D1 Maximum Ratings
Symbol
Conditions
Maximum
Ratings
VCES
TJ = 25 to 150
1200
v
VCGR
TJ = 25 to 150; RGE = 20K
1200
v
VGES
Continuous
±20
V
VGEM
Transient
±30
V
IC25
TC = 25,
38
A
IC90
TC = 90
25
A
ICM
TC = 25°C,tp= 1 ms
50
A
RBSOA
VGE= 15 V, TVJ = 125, RG = 47 VCE = 0.8•VCES Clamped inductive load, L = 30 H
Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s
300
Md
Mounting torque
0.8 - 1.2
Nm
Weight
TO-247
6
g
IXDH20N120D1 Features
· NPT IGBT technology · low saturation voltage · low switching losses · square RBSOA, no latch up · high short circuit capability · positive temperature coefficient for easy paralleling · MOS input, voltage controlled · optional ultra fast diode · International standard package
IXDH20N120D1 Typical Application
· AC motor speed control · DC servo and robot drives · DC choppers · Uninteruptible power supplies (UPS) · Switch-mode and resonant-mode power supplies
