IXDP610PI, IXDP630P1, IXDP630PI

Table of contents:
Info of IXDP610PI
Info of IXDP630P1
Info of IXDP630PI

IXDP610PI, IXDP630P1, IXDP630PI Selling Leads, Datasheet

MFG:IXYS Category:Integrated Circuits (ICs) Package Cooled:DIP18 D/C:2006+

IXDP610PI, IXDP630P1, IXDP630PI Datasheet download

Five Points

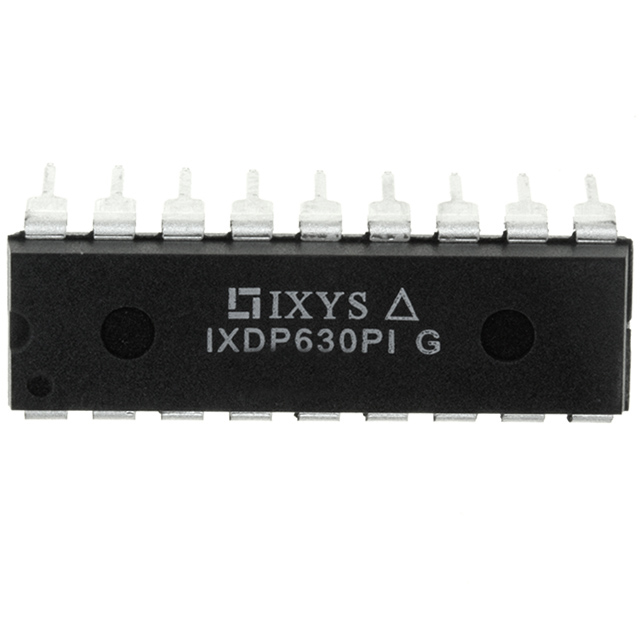

Part Number: IXDP630PI

Category: Integrated Circuits (ICs)

MFG: IXYS

Package Cooled: DIP18

D/C: 2006+

Description: IC INVERTER INTERFACE 18-DIP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IXDP610PI Parameters

Technical/Catalog Information	IXDP610PI
Vendor	IXYS
Category	Integrated Circuits (ICs)
Applications	PWM Motor Controller
Interface	Microprocessor
Voltage - Supply	4.5 V ~ 5.5 V
Package / Case	18-DIP
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXDP610PI IXDP610PI

IXDP630PI Parameters

Technical/Catalog Information	IXDP630PI
Vendor	IXYS
Category	Integrated Circuits (ICs)
Applications	PWM Motor Controller
Interface	Microprocessor
Voltage - Supply	4.5 V ~ 5.5 V
Package / Case	18-DIP
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXDP630PI IXDP630PI

IXDP630PI General Description

This 5 V HCMOS integrated circuit is intended primarily for application in three-phase, sinusoidally commutated brushless motor, induction motor, AC servomotor or UPS PWM modulator control systems. It injects the required deadtime to convert a single phase leg PWM command into the two separate logic signals required to drive the upper and lower semiconductor switches in a PWM inverter. It also provides facilities for output disable and fast overcurrent and fault condition shutdown.

In the IXDP630, deadtime programming is achieved by an internal RC oscillator. In the IXDP631, programming is achieved by use of a crystal oscillator. An alternative for both the IXDP630/631 is with an external clock signal. Because of its flexibility, the IXDP630/631 is easily utilized in a variety of brushed DC, trapezoidally commutated brushless DC, hybrid and variable reluctance step and other more exotic PWM motor drive power and control circuit designs.

IXDP630PI Maximum Ratings

Symbol	Definition	min.	max.
V_CC	Supply Voltage	-0.5	7	V
V_IN	DC Input Voltage	-0.5	V_CC + 0.5	V
I_IN	DC Input Current	-1	1	mA
V₀	DC Output Voltage	0.5	V_CC + 0.5	V
I₀	DC Output Current	-25	25	mA
T_stg	Storage Temperature	-55	150	°C
T_L	Lead Soldering (max. 10 s)		300	°C

IXDP630PI Features

·5 V HCMOS logic implementation maintains low power at high speed
·Schmitt trigger inputs and CMOS logic levels improve noise immunity
·Simultaneously injects equal deadtime in up to three output phases
·Replaces 10-12 standard SSI/MSI logic devices
·Allows a wide range of PWM modulation strategies
·Directly drives high speed optocouplers

IXDP630PI Typical Application

·1- and 3- Phase Motion Controls
·1- and 3- Phase UPS Systems
·General Power Conversion Circuits
·Pulse Timing and Waveform Generation
·General Purpose Delay and Filter
·General Purpose Three Channel "One Shot"

IXDP630PI Connection Diagram
