IXGH30N100, IXGH30N120B3D1, IXGH30N30

Table of contents:
Info of IXGH30N100
Info of IXGH30N120B3D1
Info of IXGH30N30

IXGH30N100, IXGH30N120B3D1, IXGH30N30 Selling Leads, Datasheet

MFG:IXYS Category:Discrete Semiconductor Products Package Cooled:TO-3P D/C:TO

IXGH30N100, IXGH30N120B3D1, IXGH30N30 Datasheet download

Five Points

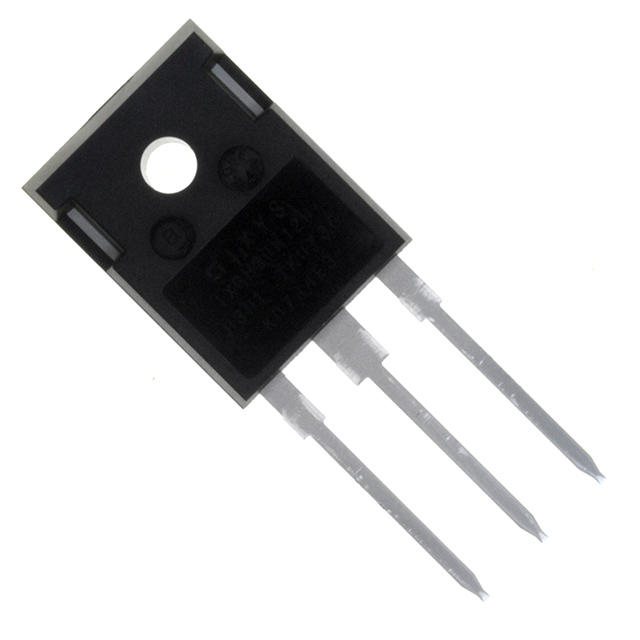

Part Number: IXGH30N120B3D1

Category: Discrete Semiconductor Products

MFG: IXYS

Package Cooled: TO-3P

D/C: TO

Description: IGBT PT 1200V 30A W/DIO TO247AD

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IXGH30N120B3D1 Parameters

Technical/Catalog Information	IXGH30N120B3D1
Vendor	IXYS
Category	Discrete Semiconductor Products
Input Type	Standard
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	30A
Vce(on) (Max) @ Vge, Ic	3.5V @ 15V, 30A
Power - Max	300W
Mounting Type	Through Hole
Package / Case	TO-247AD
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXGH30N120B3D1 IXGH30N120B3D1

IXGH30N30 Maximum Ratings

Symbol	Test Conditions	Maximum	Ratings
V_DSSV_DGR	T_J= 25°C to 150°C T_J = 25°C to 150°C; R_GS = 1 M	600 600	V V
V_GS V_GSM	Continuous Transient	±20 ±30	V V
I_c25 I_c90I_CM	T_C= 25°C T_C= 90°C T_C = 25°C 1 ms	60 30 120	A A A
SSOA (RBSOA)	V_GE= 15 V, T_VJ = 125°C, R_G = 10 Clamped inductive load, L = 100 H	A	V/ns
Pc	T_C= 25°C	200	W
T_J T_JM T_stg		-55 ... +150 150 -55 ... +150	°C °C °C
Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Maximum Tab temperature for soldering SMD devices for 10 s		300 260	°C °C
M_d	Mounting torque Terminal connection torque (M4)	0.45/4 0.55/5	Nm/lb.in. Nm/lb.in.
Weight	TO-247 AD	6	g

IXGH30N30 Features

· International standard package JEDEC TO-247 AD
· High current handling capability
· Newest generation HDMOSTM process
· MOS Gate turn-on
- drive simplicity

IXGH30N30 Typical Application

· AC motor speed control
· DC servo and robot drives
· DC choppers
· Uninterruptible power supplies (UPS)
· Switched-mode and resonant-mode power supplies
