L14N2, L14P1, L14P2

Table of contents:
Info of L14N2
Info of L14P1
Info of L14P2

L14N2, L14P1, L14P2 Selling Leads, Datasheet

MFG:Fairchild Optoelectronics Group Category:Sensors, Transducers Package Cooled:N/A D/C:03+

L14N2, L14P1, L14P2 Datasheet download

Five Points

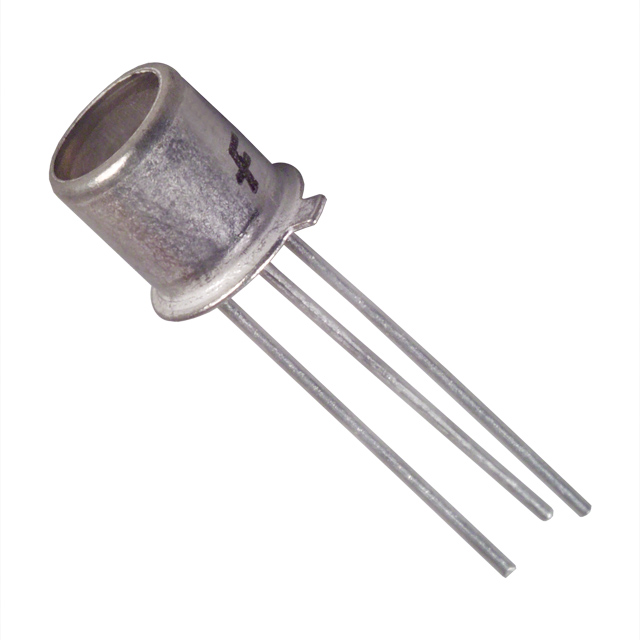

Part Number: L14N2

Category: Sensors, Transducers

MFG: Fairchild Optoelectronics Group

Package Cooled: N/A

D/C: 03+

Description: DETECTOR/TRANSISTOR PHOTO TO-18

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

L14N2 Parameters

Technical/Catalog Information	L14N2
Vendor	Fairchild Optoelectronics Group
Category	Sensors, Transducers
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	-
Current - Dark (Id) (Max)	100nA
Power - Max	300mW
Orientation	Top View
Mounting Type	Through Hole
Package / Case	TO-18
Wavelength	880nm
Viewing Angle	80°
Other Names	L14N2 L14N2

L14P1 Parameters

Technical/Catalog Information	L14P1
Vendor	Fairchild Optoelectronics Group
Category	Sensors, Transducers
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	-
Current - Dark (Id) (Max)	100nA
Power - Max	300mW
Orientation	Top View
Mounting Type	Through Hole
Package / Case	TO-18
Wavelength	880nm
Viewing Angle	16°
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L14P1 L14P1

L14P2 Parameters

Technical/Catalog Information	L14P2
Vendor	Fairchild Optoelectronics Group
Category	Sensors, Transducers
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	-
Current - Dark (Id) (Max)	100nA
Power - Max	300mW
Orientation	Top View
Mounting Type	Through Hole
Package / Case	TO-18
Wavelength	880nm
Viewing Angle	16°
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L14P2 L14P2

L14P2 General Description

The L14P1/L14P2 are silicon phototransistors mounted in a narrow angle, TO-18 package.

L14P2 Maximum Ratings

_Parameter	Symbol	Rating	Unit
Operating Temperature	T_OPR	-65 to +125
Storage Temperature	T_STG	-65 to +15
Soldering Temperature (Iron)^{(3,4,5 and 6)}	T_SOL-I	240 for 5 sec
Soldering Temperature (Flow)^{(3,4 and 6)}	T _SOL-F	260 for 10 sec
Collector to Emitter Breakdown Voltage	V _CEO	30	V
Collector to Base Breakdown Voltage	V_CBO	40	V
Emitter to Base Breakdwon Voltage	V_EBO	5	V
Power Dissipation(TA = 25_⁽¹⁾	P_D	300	mW
Power Dissipation(TC = 25⁽²⁾	P_D	600	mW

L14P2 Features

· Hermetically sealed package
· Narrow reception angle
· Devices can be used as a photodiode by wiring the collector and base leads.
