L5973AD, L5973ADTR, L5973D

Table of contents:
Info of L5973AD
Info of L5973ADTR
Info of L5973D

L5973AD, L5973ADTR, L5973D Selling Leads, Datasheet

MFG:STMicroelectronics Category:Integrated Circuits (ICs) Package Cooled:SOP8 D/C:07+

L5973AD, L5973ADTR, L5973D Datasheet download

Five Points

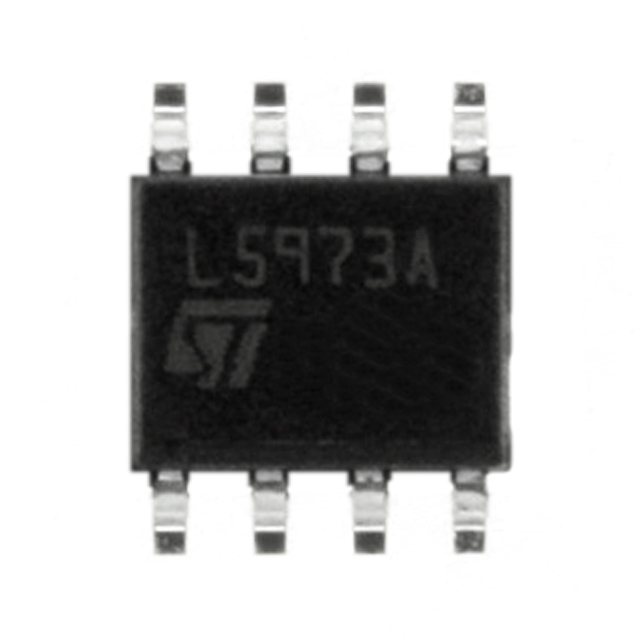

Part Number: L5973AD

Category: Integrated Circuits (ICs)

MFG: STMicroelectronics

Package Cooled: SOP8

D/C: 07+

Description: IC REG SWITCHING STEPDOWN SOIC-8

Price Break

1
10
100
250
500
1000
2500

Unit Price

3.92000
3.64500
2.83500
2.29500
1.95750
1.82250
1.72800

Extended Price

3.92
36.45
283.50
573.75
978.75
1822.50
4320.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

L5973AD Parameters

Technical/Catalog Information	L5973AD
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Type	Step-Down (Buck)
Number of Outputs	1
Voltage - Input	4 ~ 36 V
Voltage - Output	1.24 ~ 35 V
Current - Output	2A
Power - Output	2.25W
Package / Case	8-SOIC (3.9mm Width) Exposed Pad, 8-eSOIC. 8-HSOIC
Packaging	Tube
Internal Switch(s)	Yes
Synchronous	Yes
Rds (On)	250 mOhm
Operating Temperature	-40°C ~ 150°C
Frequency - Switching	500kHz
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L5973AD L5973AD 497 4565 5 ND 49745655ND 497-4565-5

L5973ADTR Parameters

Technical/Catalog Information	L5973ADTR
Vendor	STMicroelectronics (VA)
Category	Integrated Circuits (ICs)
Type	Step-Down (Buck)
Number of Outputs	1
Voltage - Input	4 ~ 36 V
Voltage - Output	1.24 ~ 35 V
Current - Output	2A
Power - Output	2.25W
Package / Case	8-SOIC (3.9mm Width) Exposed Pad, 8-eSOIC. 8-HSOIC
Packaging	Digi-Reel?
Internal Switch(s)	Yes
Synchronous	Yes
Rds (On)	250 mOhm
Operating Temperature	-40°C ~ 150°C
Frequency - Switching	500kHz
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L5973ADTR L5973ADTR 497 5328 6 ND 49753286ND 497-5328-6

L5973D Parameters

Technical/Catalog Information	L5973D
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Type	Step-Down (Buck)
Number of Outputs	1
Voltage - Input	4 ~ 36 V
Voltage - Output	1.24 ~ 35 V
Current - Output	2.5A
Power - Output	2.25W
Package / Case	8-SOIC (3.9mm Width) Exposed Pad, 8-eSOIC. 8-HSOIC
Packaging	Tube
Internal Switch(s)	Yes
Synchronous	Yes
Rds (On)	250 mOhm
Operating Temperature	-40°C ~ 150°C
Frequency - Switching	250kHz
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L5973D L5973D

L5973D General Description

The L5973D is a step down monolithic power switch- ng regulator with a minimum switch current limit of .5A so it is able to deliver more than 2A DC current o the load depending on the application conditions. he output voltage can be set from 1.235V to 35V. The high current level is also achieved thanks to an O8 package with exposed frame, that allows to re- uce the down to approximately 40 / h(R_j-amb)

The device uses an internal P-Channel D-MOS tran- s switching istor (with a typical Rdson of 250m) element to minimize the size of the external compo- ents. n internal oscillator fixes the switching frequency at 50KHz.

Having a minimum input voltage of 4.4V only, it is articularly suitable for 5V bus, available in all com- uter related applications.

Pulse by pulse current limit with the internal frequen- y modulation offers an effective constant current hort circuit protection.

L5973D Maximum Ratings

Symbol	Parameter	Value	Unit
V₈	Input Voltage	40	V
V₁	Output DC voltage Output peak voltage at t = 0.1s	-1 to 40 -5 to 40	V V
I₁	Maximum output current	int. limit.
V₄,V₅	Analog pins	4	V
V₃	INH	-0.3V to V_CC
V₂	SYNC	-0.3 to 4	V
P_tot	Power dissipation at Tamb 60	2.25	W
T_j	Operating junction temperature range	-40 to 150
T_stg	Storage temperature range	-55 to 150

L5973D Features

·2.5A INTERNAL SWITCH
·OPERATING INPUT VOLTAGE FROM 4.4V TO 36V
·3.3V / (± 2%) REFERENCE VOLTAGE
·OUTPUT VOLTAGE ADJUSTABLE FROM 1.2 5V TO 35V
· LOW DROPOUT OPERATION: 100% DUTY CYCLE
·250KHz INTERNALLY FIXED FREQUENCY
·VOLTAGE FEEDFORWARD
·ZERO LOAD CURRENT OPERATION
·INTERNAL CURRENT LIMITING
·INHIBIT FOR ZERO CURRENT CONSUMPTION
·SYNCHRONIZATION
·PROTECTION AGAINST FEEDBACK DISCONNECTION
·THERMAL SHUTDOWN

L5973D Typical Application

·CONSUMER: STB, DVD, TV, VCR,CAR RADIO, LCD MONITORS
·NETWORKING: XDSL, MODEMS,DC-DC MODULES
·COMPUTER: PRINTERS, AUDIO/GRAPHIC ARDS, OPTICAL STORAGE, HARD DISK DRIVE
·INDUSTRIAL: CHARGERS, CAR BATTERY DC-DC CONVERTERS

L5973D Connection Diagram
