L6235, L6235N, L6235PD

Table of contents:
Info of L6235
Info of L6235N
Info of L6235PD

L6235, L6235N, L6235PD Selling Leads, Datasheet

MFG:STMicroelectronics Category:Integrated Circuits (ICs) Package Cooled:DIP24 D/C:08+

L6235, L6235N, L6235PD Datasheet download

Five Points

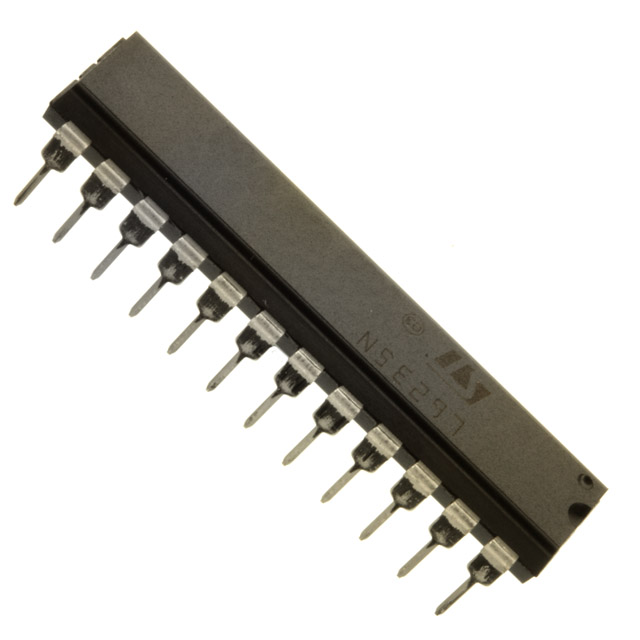

Part Number: L6235N

Category: Integrated Circuits (ICs)

MFG: STMicroelectronics

Package Cooled: DIP24

D/C: 08+

Description: IC DRIVER 3PHASE MOTOR 36PWRSOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

L6235 General Description

The L6235 is a DMOS Fully Integrated Three-Phase Motor Driver with Overcurrent Protection.

Realized in MultiPower-BCD technology, the device combines isolated DMOS Power Transistors with CMOS and bipolar circuits on the same chip.

The device includes all the circuitry needed to drive a three-phase BLDC motor including: a three-phase DMOS Bridge, a constant off time PWM Current Controller and the decoding logic for single ended hall sensors that generates the required sequence for the power stage.

Available in PowerDIP24 (20+2+2), PowerSO36 and SO24 (20+2+2) packages, the L6235 features a nondissipative overcurrent protection on the high side Power MOSFETs and thermal shutdown

L6235 Maximum Ratings

Symbol	Parameter	Test conditions	Value	Unit
V_S	Supply Voltage	V_SA = V_SB= V_S	60	V
V_OD	Differential Voltage between: VS_A, OUT₁, OUT₂, SENSE_A and VS_B, OUT₃, SENSE_B	V_SA= V_SB= V_S= 60V; V_SENSEA = V_SENSEB = G_ND	60	V
V_BOOT	Bootstrap Peak Voltage	V_SA = V_SB= V_S		V
V_IN, V_EN	Logic Inputs Voltage Range		0.3 to 7	V
V_REF	Voltage Range at pin VREF		0.3 to 7	V
V_RCOFF	Voltage Range at pin RCOFF		0.3 to 7	V
V_RCPULSE	Voltage Range at pin RCPULSE		0.3 to 7	V
V_SENSE	Voltage Range at pins SENSE_A and SENSE_B		-1 to 4	V
I_S(peak)	Pulsed Supply Current (for each VS_A and VS_Bpin)	V_SA = V_SB= V_S; T_PULSE < 1ms	7.1	A
I_S	DC Supply Current (for each VS_Aand VS_B pin)	V_SA= V_SB = V_S	2.8	A
T_stg, T_OP	Storage and Operating Temperature Range		-40 to 150	°C

L6235 Connection Diagram

L6235N Parameters

Technical/Catalog Information	L6235N
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Applications	DC Motor Driver, Brushless (BLDC), 3 Phase
Number of Outputs	1
Voltage - Supply	12 V ~ 52 V
Voltage - Load	-
Current - Output	5.6A
Operating Temperature	-25°C ~ 125°C
Package / Case	24-DIP (300 mil)
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L6235N L6235N 497 5353 5 ND 49753535ND 497-5353-5

L6235PD Parameters

Technical/Catalog Information	L6235PD
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Applications	DC Motor Driver, Brushless (BLDC), 3 Phase
Number of Outputs	1
Voltage - Supply	12 V ~ 52 V
Voltage - Load	-
Current - Output	5.6A
Operating Temperature	-25°C ~ 125°C
Package / Case	36-PowerSOIC
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L6235PD L6235PD 497 5354 5 ND 49753545ND 497-5354-5
