L6599, L6599ADTR, L6599D-PB FREE

Table of contents:
Info of L6599
Info of L6599ADTR
Info of L6599D-PB FREE

L6599, L6599ADTR, L6599D-PB FREE Selling Leads, Datasheet

MFG:STMicroelectronics (VA) Category:Integrated Circuits (ICs) Package Cooled:SOP-16 D/C:09+

L6599, L6599ADTR, L6599D-PB FREE Datasheet download

Five Points

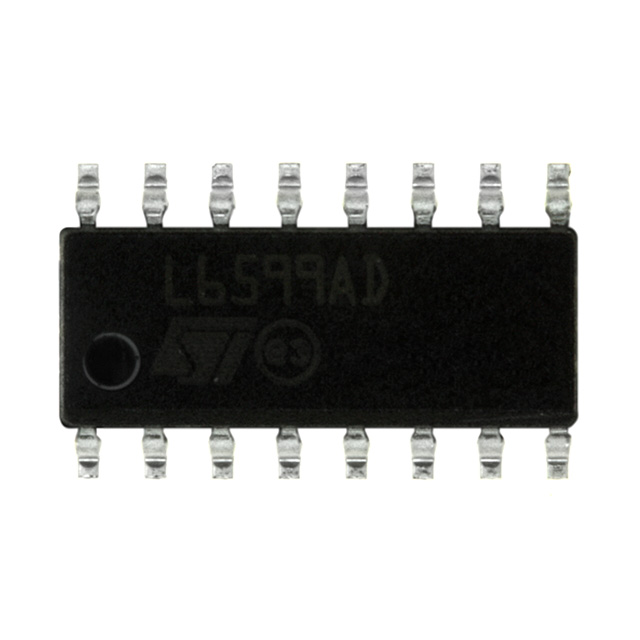

Part Number: L6599ADTR

Category: Integrated Circuits (ICs)

MFG: STMicroelectronics (VA)

Package Cooled: SOP-16

D/C: 09+

Description: IC RESONANT CONVRTR CTRLR 16SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

L6599 Maximum Ratings

Symbol	Pin	Parameter	Value	Unit
V_BOOT	16	Floating supply voltage	-1 to 618	V
V_OUT	14	Floating ground voltage	-3 to VBOOT -18	V
d_VOUT/dt	14	Floating ground max. slew rate	50	V/ns
V_CC	12	IC Supply voltage (ICC 25 mA)	Self-limited	V
V_PFC_S_TOP	9	Maximum voltage (pin open)	-0.3 to VCC	V
I_PFC_S_TOP	9	Maximum sink current (pin low)	Self-limited	A
V_LINEmax	7	Maximum pin voltage (Ipin 1mA)	Self-limited	V
I_RFmin	4	Maximum source current	2	mA
	1 to 6, 8	Analog inputs & outputs	-0.3 to 5	V

Note: ESD immunity for pins 14, 15 and 16 is guaranteed up to 900V

L6599 Features

· 50% duty cycle, variable frequency control of resonant half-bridge
· High-accuracy oscillator
· Up to 500kHz operating frequency
· Two-level OCP: frequency-shift and latched shutdown
· Interface with PFC controller
· Latched disable input
· Burst-mode operation at light load
· Input for power-ON/OFF sequencing or brownout protection
· Non-linear soft-start for monotonic output voltage rise
· 600V-rail compatible high-side gate driver with integrated bootstrap diode and high dV/dt immunity
· -300/800mA high-side and low-side gate drivers with UVLO pull-down
· DIP-16, SO-16N packages

L6599 Typical Application

· LCD & PDP TV
· Desktop PC, entry-level server
· Telecom SMPS
· AC-DC adapter, open frame SMPS

L6599 Connection Diagram

L6599ADTR Parameters

Technical/Catalog Information	L6599ADTR
Vendor	STMicroelectronics (VA)
Category	Integrated Circuits (ICs)
Type	-
Voltage - Supply	8.85 V ~ 16 V
Current - Supply	3.5mA
Voltage - Input	-
Package / Case	16-SOIC (3.9mm Width)
Packaging	Digi-Reel?
Applications	Resonant Converter Controller
Operating Temperature	0°C ~ 105°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L6599ADTR L6599ADTR 497 8519 6 ND 49785196ND 497-8519-6
