LH7500, LH75400, LH75400N0M100C0

Table of contents:
Info of LH7500
Info of LH75400
Info of LH75400N0M100C0

LH7500, LH75400, LH75400N0M100C0 Selling Leads, Datasheet

MFG:Sharp Microelectronics Category:Integrated Circuits (ICs) Package Cooled:6000 D/C:06+

LH7500, LH75400, LH75400N0M100C0 Datasheet download

Five Points

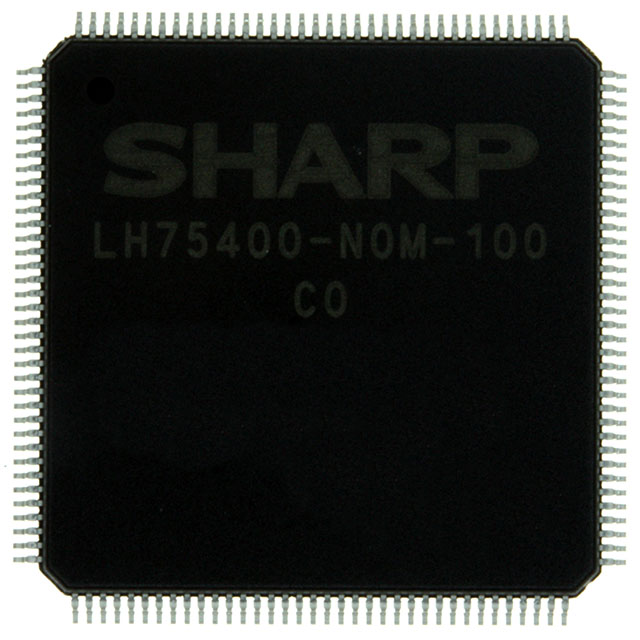

Part Number: LH75400N0M100C0

Category: Integrated Circuits (ICs)

MFG: Sharp Microelectronics

Package Cooled: 6000

D/C: 06+

Description: IC ARM7 BLUESTREAK MCU 144TQFP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

LH75400 General Description

The SHARP BlueStreak LH75400/01/10/11 family consists of four low-cost 16/32-bit System-on-Chip (SoC) devices.
• LH75401 - contains the superset of features.
• LH75411 - similar to LH75401, without CAN 2.0B.
• LH75400 - similar to LH75401, but with a Grayscale LCDC only.
• LH75410 - similar to LH75400, without CAN 2.0B.

LH75400 Maximum Ratings

PARAMETER	MINIMUM	MAXIMUM
DC Core Supply Voltage (VDDC)	-0.3 V	2.4 V
DC I/O Supply Voltage (VDD)	-0.3 V	4.6 V
DC Analog Supply Voltage for ADC (VDDA0)	-0.3 V	4.6 V
DC Analog Supply Voltage for PLL (VDDA1)	-0.3 V	2.4 V
Storage Temperature (TSTG)	-55°C	125°C

LH75400 Features

• Highly Integrated System-on-Chip
• ARM7TDMI-S™ Core
• High Performance (70 MHz CPU Speed)
Internal PLL Driven or External Clock Driven
Crystal Oscillator/Internal PLL Can Operate with Input Frequency Range of 14 MHz to 20 MHz
• 32KB On-chip SRAM
16KB Tightly Coupled Memory (TCM) SRAM
16KB Internal SRAM
• Clock and Power Management
Low Power Modes: Standby, Sleep, Stop
• Eight Channel, 10-bit Analog-to-Digital Converter
• Integrated Touch Screen Controller
• Serial interfaces
Two 16C550-type UARTs supporting baud rates up to 921,600 baud (requires crystal frequency of 14.756 MHz).
One 82510-type UART supporting baud rates up to 3,225,600 baud (requires a system clock of 70 MHz).
• Synchronous Serial Port
Motorola SPI™
National Semiconductor Microwire™
Texas Instruments SSI
• Real-Time Clock (RTC)
• Three Counter/Timers
Capture/Compare/PWM Compatibility
Watchdog Timer (WDT)
• Low-Voltage Detector
• JTAG Debug Interface and Boundary Scan
• Single 3.3 V Supply
• 5 V Tolerant Inputs
• 144-pin LQFP Package
• -40°C to +85°C Operating Temperature

LH75400 Connection Diagram

LH75400N0M100C0 Parameters

Technical/Catalog Information	LH75400N0M100C0
Vendor	Sharp Microelectronics
Category	Integrated Circuits (ICs)
Program Memory Size	-
RAM Size	32K x 8
Number of I /O	76
Package / Case	144-LQFP
Speed	84MHz
Controller Series	LH7
Oscillator Type	Internal
Packaging	Tray
Program Memory Type	ROMless
EEPROM Size	-
Core Processor	ARM7
Data Converters	A/D 8x10b
Core Size	16/32-Bit
Operating Temperature	-40°C ~ 85°C
Connectivity	CAN, EBI/EMI, Microwire, SPI, SSI, SSP, UART/USART
Peripherals	Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)	1.7 V ~ 1.98 V
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	LH75400N0M100C0 LH75400N0M100C0 425 1860 ND 4251860ND 425-1860
