MFG:Texas Instruments (VA) Category:Integrated Circuits (ICs) Package Cooled:SOP14 D/C:06+
LM224DG, LM224DR, LM224DR2 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Texas Instruments (VA)
Package Cooled: SOP14
D/C: 06+
Description: IC OPAMP GP 1.2MHZ QUAD 14SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: LM20
File Size: 223381 KB
Manufacturer: NSC [National Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LM224DR
File Size: 538774 KB
Manufacturer: TI [Texas Instruments]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LM224DR2
File Size: 132019 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download

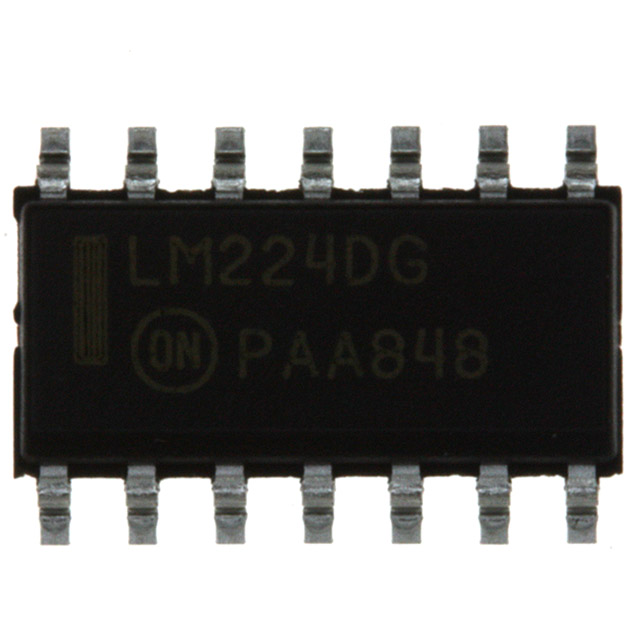

| Technical/Catalog Information | LM224DG |
| Vendor | ON Semiconductor |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | General Purpose |
| Number of Circuits | 4 - Quad |
| Package / Case | 14-SOIC (3.9mm Width), 14-SOL |
| Slew Rate | 0.6 V/s |
| Gain Bandwidth Product | 1MHz |
| Current - Supply | 1.4mA |
| Current - Output / Channel | 40mA |
| Voltage - Supply, Single/Dual (±) | 3 V ~ 32 V, ±1.5 V ~ 16 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 90nA |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Input Offset | 2000V |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | LM224DG LM224DG LM224DGOS ND LM224DGOSND LM224DGOS |
| Technical/Catalog Information | LM224DR |
| Vendor | Texas Instruments (VA) |
| Category | Integrated Circuits (ICs) |
| Packaging | Digi-Reel? |
| Amplifier Type | General Purpose |
| Number of Circuits | 4 - Quad |
| Package / Case | 14-SOIC (3.9mm Width), 14-SOL |
| Slew Rate | 0.5 V/s |
| Gain Bandwidth Product | 1.2MHz |
| Current - Supply | 1.4mA |
| Current - Output / Channel | 60mA |
| Voltage - Supply, Single/Dual (±) | 3 V ~ 32 V, ±1.5 V ~ 16 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 20nA |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Input Offset | 3000V |
| Drawing Number | 296; 4040047-3; D; 14 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | LM224DR LM224DR 296 12847 6 ND 296128476ND 296-12847-6 |
