LM27341SD/NOPB, LM27342MY/NOPB, LM27342SD/NOPB

Table of contents:
Info of LM27341SD/NOPB
Info of LM27342MY/NOPB
Info of LM27342SD/NOPB

LM27341SD/NOPB, LM27342MY/NOPB, LM27342SD/NOPB Selling Leads, Datasheet

MFG:National Semiconductor (VA) Category:Integrated Circuits (ICs) D/C:09+

LM27341SD/NOPB, LM27342MY/NOPB, LM27342SD/NOPB Datasheet download

Five Points

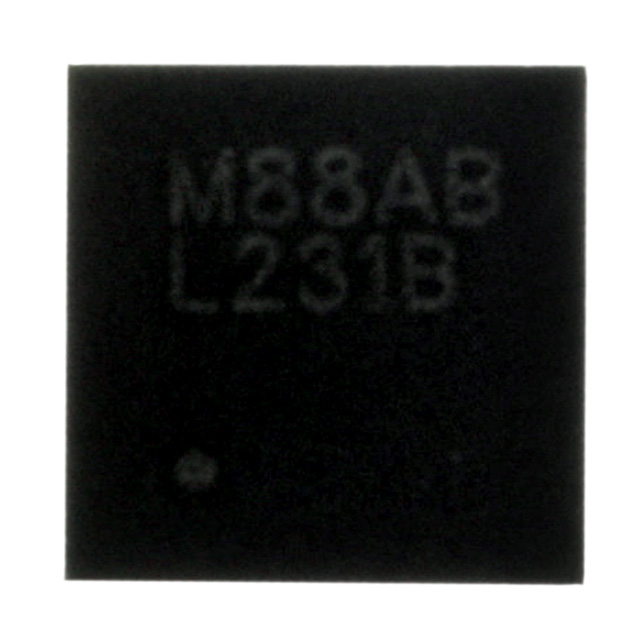

Part Number: LM27341SD/NOPB

Category: Integrated Circuits (ICs)

MFG: National Semiconductor (VA)

Package Cooled:

D/C: 09+

Description: IC REG DC/DC STP-DWN 2A 10-LLP

Price Break

1
25
100
250
500

Unit Price

3.65000
2.77400
2.11700
1.94180
1.86150

Extended Price

3.65
69.35
211.70
485.45
930.75

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

LM27341SD/NOPB Parameters

Technical/Catalog Information	LM27341SD/NOPB
Vendor	National Semiconductor (VA)
Category	Integrated Circuits (ICs)
Type	Step-Down (Buck)
Number of Outputs	1
Voltage - Input	3 ~ 20 V
Voltage - Output	1 ~ 18 V
Current - Output	1.5A
Power - Output	-
Package / Case	10-LLP
Packaging	Digi-Reel?
Internal Switch(s)	Yes
Synchronous	Yes
Rds (On)	150 mOhm
Operating Temperature	-40°C ~ 125°C
Frequency - Switching	2MHz
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LM27341SD NOPB LM27341SDNOPB LM27341SDDKR ND LM27341SDDKRND LM27341SDDKR

LM27342MY/NOPB Parameters

Technical/Catalog Information	LM27342MY/NOPB
Vendor	National Semiconductor
Category	Integrated Circuits (ICs)
Type	Step-Down (Buck)
Number of Outputs	1
Voltage - Input	3 ~ 20 V
Voltage - Output	1 ~ 18 V
Current - Output	2A
Power - Output	-
Package / Case	10-MSOP Exposed Pad, 10-HMSOP, 10-eMSOP
Packaging	Tape & Reel (TR)
Internal Switch(s)	Yes
Synchronous	Yes
Rds (On)	150 mOhm
Operating Temperature	-40°C ~ 125°C
Frequency - Switching	2MHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LM27342MY NOPB LM27342MYNOPB LM27342MYTR ND LM27342MYTRND LM27342MYTR

LM27342SD/NOPB Parameters

Technical/Catalog Information	LM27342SD/NOPB
Vendor	National Semiconductor (VA)
Category	Integrated Circuits (ICs)
Type	Step-Down (Buck)
Number of Outputs	1
Voltage - Input	3 ~ 20 V
Voltage - Output	1 ~ 18 V
Current - Output	2A
Power - Output	-
Package / Case	10-LLP
Packaging	Digi-Reel?
Internal Switch(s)	Yes
Synchronous	Yes
Rds (On)	150 mOhm
Operating Temperature	-40°C ~ 125°C
Frequency - Switching	2MHz
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LM27342SD NOPB LM27342SDNOPB LM27342SDDKR ND LM27342SDDKRND LM27342SDDKR
