LM301A, LM301ACDR2, LM301AD

LM301A, LM301ACDR2, LM301AD Selling Leads, Datasheet

MFG:ST  Package Cooled:NS  D/C:N/A

LM301A, LM301ACDR2, LM301AD Picture

LM301A, LM301ACDR2, LM301AD Datasheet download

Five Points

Part Number: LM301A



MFG: ST

Package Cooled: NS

D/C: N/A








Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

LM301A Suppliers

More LM301A Suppliers

Select All

  • LM301AH

  • Qty: 2610 Note: original part  Adddate: 2020-03-30
  • Inquire Now
  • Forever Elec Co.Ltd   China
    Contact: Ms.Caroline   MSN:yjzy-2008@homtmail.com
    Tel: 86-10-82117278
    Fax: 86-10-82111860
    (13)
  • LM301AH

  • Note: NSC  Adddate: 2020-03-30
  • Inquire Now
  • JAD Tech, Inc.   United
    Contact: Mr.James D.
    Tel: 01-352-6865108
    Fax: 01-352-6865115
    (7)
  • LM301AH

  • Pack: CAN D/C: 01+& Qty: 6851  Adddate: 2020-03-30
  • Inquire Now
  • TOPIA TECHNOLOGY CO. LTD   China
    Contact: Ms.Mandy   MSN:mandyxi2006@hotmail.com
    Tel: 0086-755-83001125
    Fax: 0086-755-83001175
    (13)

About LM301A

PDF/DataSheet Download

Datasheet: LM301A

File Size: 397624 KB

Manufacturer: STMICROELECTRONICS [STMicroelectronics]

Download : Click here to Download

Related PDF Download

Related Part Number

LM301ACDR2 Suppliers

More LM301ACDR2 Suppliers

Select All

  • LM301

  • D/C: 97+& Qty: 1203  Adddate: 2020-03-30
  • Inquire Now
  • Moko Technology Limited   China
    Contact: Mr.Tom   MSN:tom-ic@hotmail.com
    Tel: 0086-0755-23956700
    Fax: 0086-0755-23956710
    (22)
  • LM301

  • D/C: 09+& Qty: DIP  Adddate: 2020-03-30
  • Inquire Now
  • Capital Components   Hong
    Contact: Mr.Yolanda
    Tel: 00-852-30776880
    Fax:
    (12)

About LM301

PDF/DataSheet Download

Datasheet: LM301

File Size: 521472 KB

Manufacturer: STMICROELECTRONICS [STMicroelectronics]

Download : Click here to Download

Related PDF Download

Related Part Number

LM301AD Suppliers

More LM301AD Suppliers

Select All

About LM301AD

PDF/DataSheet Download

Datasheet: LM301AD

File Size: 132599 KB

Manufacturer: STMICROELECTRONICS [STMicroelectronics]

Download : Click here to Download

Related PDF Download

Related Part Number

LM301A General Description

The LM101A series are general purpose operational amplifiers which feature improved performance over industry standards like the LM709. Advanced processing techniques make possible an order of magnitude reduction in input currents, and a redesign of the biasing circuitry reduces the temperature drift of input current. Improved specifications include:

  • Offset voltage 3 mV maximum over temperature (LM101A/LM201A)
  • Input current 100 nA maximum over temperature (LM101A/LM201A)
  • Offset current 20 nA maximum over temperature (LM101A/LM201A)
  • Guaranteed drift characteristics
  • Offsets guaranteed over entire common mode and supply voltage ranges
  • Slew rate of 10V/µs as a summing amplifier This amplifier offers many features which make its application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, and freedom from oscillations and compensation with a single 30 pF capacitor. It has advantages over internally compensated amplifiers in that the frequency compensation can be tailored to the particular application. For example, in low frequency circuits it can be overcompensated for increased stability margin. Or the compensation can be optimized to give more than a factor of ten improvement in high frequency performance for most applications. In addition, the device provides better accuracy and lower noise in high impedance circuitry. The low input currents also make it particularly well suited for long interval integrators or timers, sample and hold circuits and low frequency waveform generators. Further, replacing circuits where matched transistor pairs buffer the inputs of conventional IC op amps, it can give lower offset voltage and a drift at a lower cost. The LM101A is guaranteed over a temperature range of -55°C to +125°C, the LM201A from -25°C to +85°C, and the LM301A from 0°C to +70°C.

Reliability Metrics


Part NumberProcessEFR RejectEFR Sample SizePPMLTA RejectsLTA Device HoursFITSMTTF (Hours)
LM301ANSLM0427860033525002951281028

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.


Application Notes


TitleSize in KbytesDate
AN-181: Application Note 181 3-Terminal Regulator Is Adjustable 165 Kbytes 1-May-04 Download
AN-222: Application Note 222 Super Matched Bipolar Transistor Pair Sets New Standards for Drift and Noise 399 Kbytes 1-Oct-02 Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.

More Application Notes


TitleSize in KbytesDate
AN-184: Application Note 184 References for A/D Converters64 Kbytes3-Oct-02Download
AN-184 (Japanese): Application Note 184 References for A/D Converters
124 Kbytes

If you have trouble printing or viewing PDF file(s), see Printing Problems.

LM301A Maximum Ratings

Gain Bandwidth1 MHz
Channels1 Channels
Input OutputTypeVcm to V+, Not R-R Out
Slew Rate0.5 Volts/usec
Supply Min10 Volt
Supply Max36 Volt
Offset Voltage max, 25C7.5 mV
Supply Current Per Channel1.8 mA
PowerWise Rating 21800 uA/MHz
Max Input Bias Current300 nA
Output Current25 mA
Voltage Noise15 nV/root(Hz)
Shut downNo
Special FeaturesVos Adj, ExtCompCap
FunctionOp Amp
Temperature Min0 deg C
Temperature Max70 deg C
View Using Catalog

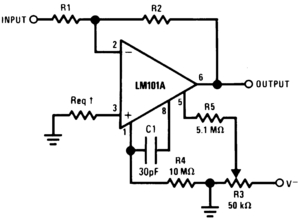

LM301A Connection Diagram
