LM317 Parameters
- Guaranteed 1% output voltage tolerance (LM317A)
- Guaranteed max. 0.01%/V line regulation (LM317A)
- Guaranteed max. 0.3% load regulation (LM117)
- Guaranteed 1.5A output current
- Adjustable output down to 1.2V
- Current limit constant with temperature
- P+ Product Enhancement tested
- 80 dB ripple rejection
- Output is short-circuit protected
LM317 General Description
3-Terminal Adjustable Regulator
LM317 Maximum Ratings
| Output Current | 1500, 1000, 500 mA |
| Input Min Voltage | 4.2 Volt |
| Input Max Voltage | 40, 37 Volt |
| Adjustable Output | Yes |
| On/Off Pin | No |
| Error Flag | No |
| Temperature Min | -40, 0 deg C |
| Temperature Max | 125 deg C |
| RegType | Linear Regulator |
| View Using Catalog | |
LM317 Features
- Guaranteed 1% output voltage tolerance (LM317A)
- Guaranteed max. 0.01%/V line regulation (LM317A)
- Guaranteed max. 0.3% load regulation (LM117)
- Guaranteed 1.5A output current
- Adjustable output down to 1.2V
- Current limit constant with temperature
- P+ Product Enhancement tested
- 80 dB ripple rejection
- Output is short-circuit protected

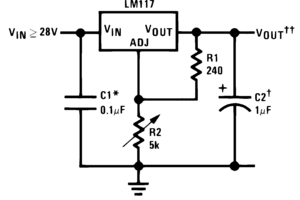

LM317 Typical Application
LM317 Datasheet
LM317 Connection Diagram
