LP2902, LP2902D, LP2902DR

Table of contents:
Info of LP2902
Info of LP2902D
Info of LP2902DR

LP2902, LP2902D, LP2902DR Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:NS D/C:N/A

LP2902, LP2902D, LP2902DR Datasheet download

Five Points

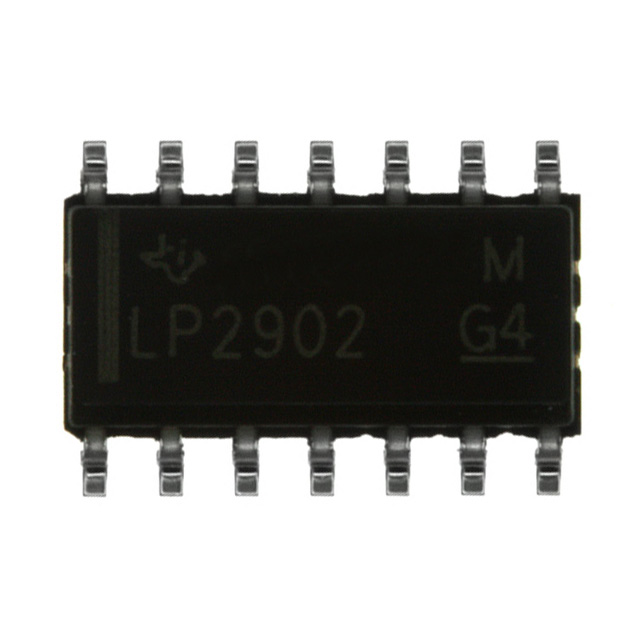

Part Number: LP2902DR

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: NS

D/C: N/A

Description: IC OPAMP GP 100KHZ QUAD 14SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

LP2902 General Description

The LP324 series consists of four independent, high gain internally compensated micropower operational amplifiers. These amplifiers are specially suited for operation in battery systems while maintaining good input specifications, and extremely low supply current drain. In addition, the LP324 has an input common mode range, and output source range which includes ground, making it ideal in single supply applications.

These amplifiers are ideal in applications which include portable instrumentation, battery backup equipment, and other circuits which require good DC performance and low supply current.

Reliability Metrics

Part Number	Process	EFR Reject	EFR Sample Size	PPM	LTA Rejects	LTA Device Hours	FITS	MTTF (Hours)
LP2902M	SLM	0	42786	0	0	3352500	2	951281028
LP2902MX	SLM	0	42786	0	0	3352500	2	951281028
LP2902N	SLM	0	42786	0	0	3352500	2	951281028

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.

Design Tools

Title	Size in Kbytes	Date
Amplifiers Selection Guide software for Windows	8 Kbytes	6-Mar-2007	View

If you have trouble printing or viewing PDF file(s), see Printing Problems.

LP2902 Maximum Ratings

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.
Supply Voltage                      32V or g 16V
LP2902                                 26V or g 13V
Differential Input Voltage                   32V
LP2902                                               26V
Input Voltage (Note 1) b0.3V to        32V
LP2902 b0.3V to                                 26V
Output Short-Circuit to GND    Continuous
(One Amplifier) (Note 2)
V+ 15V and T_A = 25
ESD Susceptibility (Note 9)             ±500V

LP2902 Features

` Low supply current              125 A (max)
` Low offset voltage                 2 mV (max)
` Low input bias current            4 nA (max)
` Input common mode to GND
` Interfaces to CMOS logic
` Wide supply range               3V k Va k 32V
` Small Outline Package available
` Pin-for-pin compatible with LM124

LP2902 Connection Diagram

LP2902D Parameters

Technical/Catalog Information	LP2902D
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	General Purpose
Number of Circuits	4 - Quad
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Slew Rate	0.05 V/s
Gain Bandwidth Product	100kHz
Current - Supply	85A
Current - Output / Channel	10mA
Voltage - Supply, Single/Dual (±)	3 V ~ 32 V, ±1.5 V ~ 16 V
Output Type	-
-3db Bandwidth	-
Current - Input Bias	2nA
Operating Temperature	-40°C ~ 85°C
Voltage - Input Offset	2000V
Drawing Number	296; 4040047-3; D; 14
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LP2902D LP2902D

LP2902DR Parameters

Technical/Catalog Information	LP2902DR
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Packaging	Tape & Reel (TR)
Amplifier Type	General Purpose
Number of Circuits	4 - Quad
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Slew Rate	0.05 V/s
Gain Bandwidth Product	100kHz
Current - Supply	85A
Current - Output / Channel	10mA
Voltage - Supply, Single/Dual (±)	3 V ~ 32 V, ±1.5 V ~ 16 V
Output Type	-
-3db Bandwidth	-
Current - Input Bias	2nA
Operating Temperature	-40°C ~ 85°C
Voltage - Input Offset	2000V
Drawing Number	296; 4040047-3; D; 14
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LP2902DR LP2902DR 296 17950 2 ND 296179502ND 296-17950-2
