LP2902M, LP2902MX, LP2902MX/NOPB

Table of contents:
Info of LP2902M
Info of LP2902MX
Info of LP2902MX/NOPB

LP2902M, LP2902MX, LP2902MX/NOPB Selling Leads, Datasheet

MFG:National Semiconductor (VA) Category:Integrated Circuits (ICs) Package Cooled:SMD14 D/C:06+

LP2902M, LP2902MX, LP2902MX/NOPB Datasheet download

Five Points

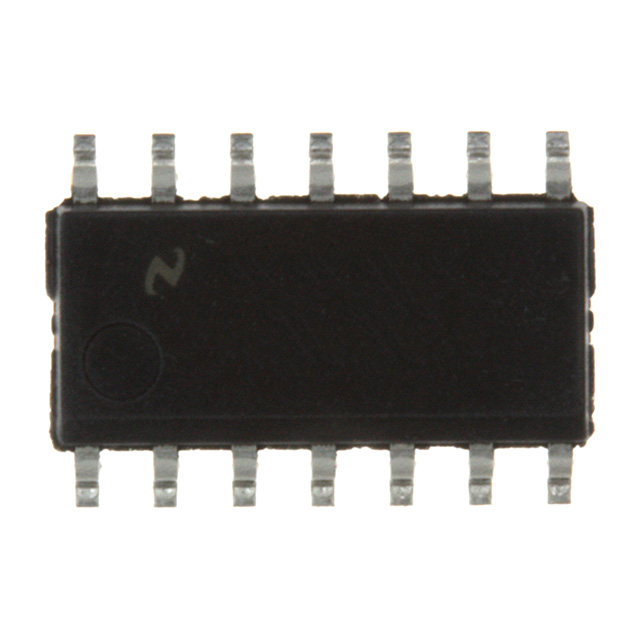

Part Number: LP2902MX

Category: Integrated Circuits (ICs)

MFG: National Semiconductor (VA)

Package Cooled: SMD14

D/C: 06+

Description: IC OP AMP QUAD MICRPWR 14-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

LP2902M General Description

·The LP324 series consists of four independent, high gain internally compensated micropower operational amplifiers.

·These amplifiers are specially suited for operation in battery systems while maintaining good input specifications, and extremely low supply current drain. In addition, the LP324 has an input common mode range, and output source range which includes ground, making it ideal in single supply applications.

·These amplifiers are ideal in applications which include portable instrumentation, battery backup equipment, and other circuits which require good DC performance and low supply current.

LP2902M Maximum Ratings

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage
LP324                         32V or ± 16V
LP2902                       26V or ± 13V
Differential Input Voltage
LP324                                       32V
LP2902                                     26V
Input Voltage (Note 2)
LP324                                               −0.3V to 32V
LP2902                                             −0.3V to 26V
Output Short-Circuit to GND                 Continuous
(One Amplifier) (Note 3)
V⁺ 15V and TA = 25°C
ESD Susceptibility (Note 10)                      ±500V
Operating Conditions
T_JMAX150
q_JA(Note 4)
MT Package                                            154 /W
N Package                                                 90 /W
M Package                                               140 /W
Operating Temp. Range                           (Note 5)
Storage Temp. Range              −65 T_J 150
Soldering Information
Wave Soldering(10sec)             260 (lead temp.)
Convection or Infrared(20sec)                      235

LP2902M Features

` Low supply current: 85A (typ)
` Low offset voltage: 2mV (typ)
` Low input bias current: 2nA (typ)
` Input common mode to GND
` Interfaces to CMOS logic
` Wide supply range: 3V < V⁺ < 32V
` Small Outline Package available
` Pin-for-pin compatible with LM324

LP2902MX Parameters

Technical/Catalog Information	LP2902MX
Vendor	National Semiconductor (VA)
Category	Integrated Circuits (ICs)
Packaging	Cut Tape (CT)
Amplifier Type	General Purpose
Number of Circuits	4 - Quad
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Slew Rate	0.05 V/s
Gain Bandwidth Product	100kHz
Current - Supply	85A
Current - Output / Channel	10mA
Voltage - Supply, Single/Dual (±)	3 V ~ 26 V, ±1.5 V ~ 13 V
Output Type	-
-3db Bandwidth	-
Current - Input Bias	2nA
Operating Temperature	-40°C ~ 85°C
Voltage - Input Offset	2000V
Drawing Number	14; M14A; ; 14
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	LP2902MX LP2902MX LP2902MXCT ND LP2902MXCTND LP2902MXCT
