M1MA151KT, M1MA151KT1, M1MA151KT1G Datasheet download
Category: Discrete Semiconductor Products
MFG: ON Semiconductor
Package Cooled: SOT346
D/C: 53103

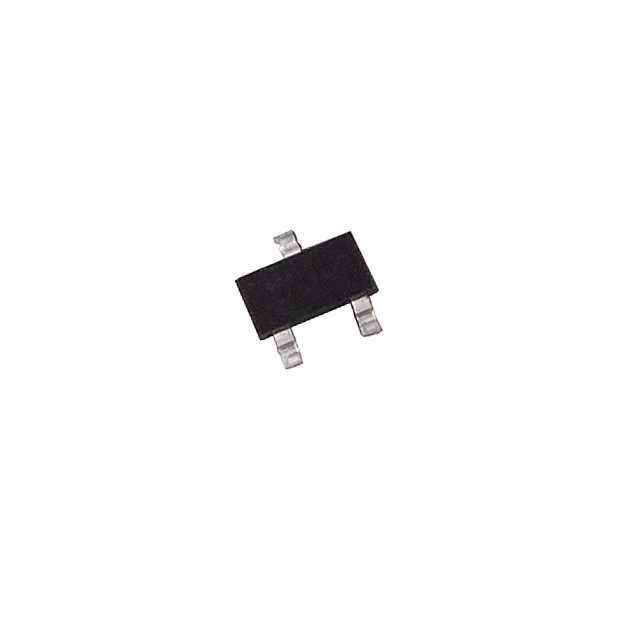

Description: DIODE SW SS 100MA 40V SC-59
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: M1MA151KT1
File Size: 59730 KB
Manufacturer: MOTOROLA [Motorola, Inc]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: M1MA151KT1
File Size: 59730 KB
Manufacturer: MOTOROLA [Motorola, Inc]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: M1M1
File Size: 183622 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
These Silicon Epitaxial Planar Diodes are designed for use in ultra high speed switching applications. These devices are housed in the SC-59 package which is designed for low power surface mount applications.
|
Rating |
Symbol | Value | Unit | |
| Reverse Voltage |
M1MA151WAT1 |
VR |
40 |
Vdc |
|
M1MA152WAT1 |
80 | |||
| Peak Reverse Voltage |
M1MA151WAT1 |
VRM |
40 |
Vdc |
|
M1MA152WAT1 |
80 | |||
| Forward Current |
IF |
100
|
mAdc | |
| Peak Forward Current |
IFM |
225
|
mAdc | |
| Peak Forward Surge Current |
IFSM(1) |
500
|
mAdc | |
• Fast t rr , < 3.0 ns
• Low C D , < 2.0 pF
• Available in 8 mm Tape and Reel
Use M1MA151/2AT1 to order the 7 inch/3000 unit reel.
Use M1MA151/2AT3 to order the 13 inch/10,000 unit reel.
| Technical/Catalog Information | M1MA151KT1G |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 40V |
| Current - Average Rectified (Io) | 100mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 100mA |
| Reverse Recovery Time (trr) | 3ns |
| Current - Reverse Leakage @ Vr | 100nA @ 35V |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |
| Package / Case | SC-59 |
| Packaging | Tape & Reel (TR) |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | M1MA151KT1G M1MA151KT1G |
