MFG:Freescale Semiconductor Category:Programmers, Development Systems D/C:912
M68ICS08KX, M68KIT912D60A, M68KIT912DG128A Datasheet download
Category: Programmers, Development Systems
MFG: Freescale Semiconductor
Package Cooled:
D/C: 912
Description: KIT EVALUATION FOR HC912DG128A
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: M68ICS08KX
File Size: 699286 KB
Manufacturer: MOTOROLA [Motorola, Inc]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: M68000
File Size: 255214 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: M68000
File Size: 255214 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
• Editing with WinIDE
• Assembling with CASM08W
• Programming FLASH memory with PROG08SZ
• Simulating in-circuit and stand-alone MC68HC908KX8 MCU with ICS08KXW software, providing:
Simulation of all instructions, memory, and peripherals
Simulation of pin inputs from the target system
Installation of conditional breakpoints, script files, and logfiles
• Debugging and emulation (limited real-time) with ICD08SZ, including:
Loading code into RAM
Executing real-time in RAM or FLASH
Placing one hardware breakpoint in FLASH
Placing multiple breakpoints in RAM
• On-line help documentation for all software
• Software integrated into the WinIDE environment, allowing function
key access to all applications
• MON08 emulation connection to the target system allowing:
In-circuit emulation
In-circuit simulation
In-circuit programming
• Four modes of operation:
Standalone - using the KXICS as a standalone system without a target board
Simulation - using the KXICS as an in-circuit simulator/emulator with a target cable
Evaluation - using the KXICS for real-time evaluation of the MCU and to debug user developed hardware and software
Programming - using the KXICS as a programmer
• With the ICD08SZ debugging software, code can be run directly out of the MCU's internal FLASH at real-time speeds.
• With the WinIDE, CASM08Z, editor, simulator, and assembler software,the function is as a limited real-time emulator.
• With the PROG08SZ software, the function is to program MCU FLASH memory.
• With the ICS08KXZ simulation software, the MCU provides the required input/output information that lets the host computer simulate code, performing all functions except for maintaining port values. (The internal FLASH memory on the device is downloaded with a program that generates the appropriate port values.) The ICS08KXZ software on the host computer lets the host computer become a simulator.
• With using the ICD08SZ debugging software, code can be run directly out of the MCU's internal FLASH at real-time speeds.
• Timing is accomplished with a 9.8304 MHz crystal
| Technical/Catalog Information | M68KIT912D60A |
| Vendor | Freescale Semiconductor |
| Category | Programmers, Development Systems |
| Type | Microcontroller |
| Contents | Module and Misc Hardware |
| For Use With/Related Products | MC912D60A |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | M68KIT912D60A M68KIT912D60A |

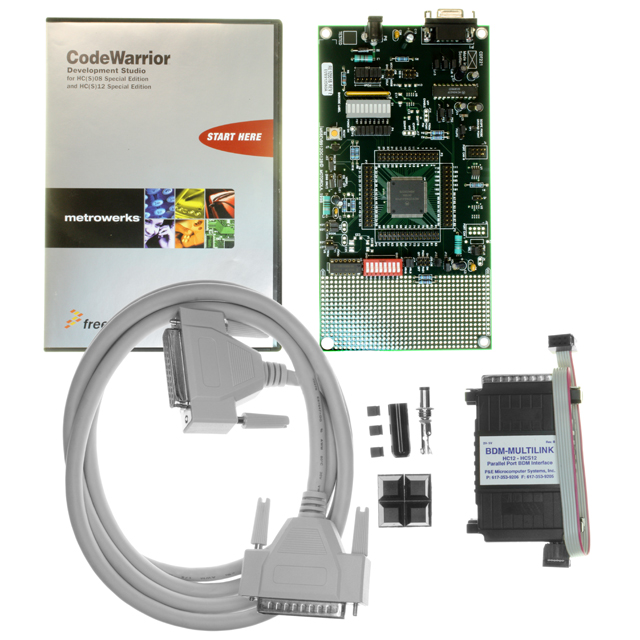

| Technical/Catalog Information | M68KIT912DG128A |
| Vendor | Freescale Semiconductor |
| Category | Programmers, Development Systems |
| Type | Microcontroller |
| Contents | Module and Misc Hardware |
| For Use With/Related Products | HC912DG128A |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | M68KIT912DG128A M68KIT912DG128A |
