MFG:Panasonic - SSG Category:Discrete Semiconductor Products Package Cooled:06+ D/C:09+

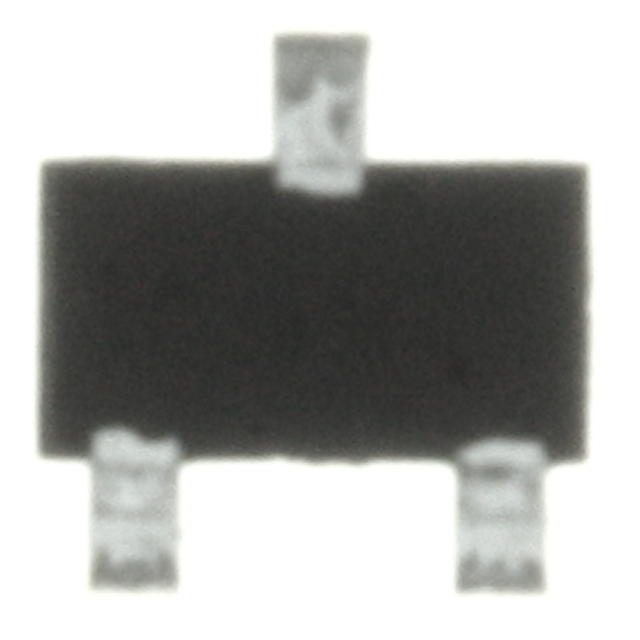

MA3SD29F, MA3SD29F0L, MA3SD29FOL Datasheet download
Category: Discrete Semiconductor Products
MFG: Panasonic - SSG
Package Cooled: 06+
D/C: 09+
Description: DIODE SCHOTTKY 30V 100MA SSMINI
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MA3SD29F
File Size: 110592 KB
Manufacturer: PANASONIC
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MA30
File Size: 24131 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MA30
File Size: 24131 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | MA3SD29F0L |
| Vendor | Panasonic - SSG |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Diode Configuration | 1 Pair Series Connection |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Current - Average Rectified (Io) (per Diode) | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 420mV @ 100mA |
| Current - Reverse Leakage @ Vr | 120A @ 30V |
| Reverse Recovery Time (trr) | 1ns |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |
| Package / Case | SS Mini 3P |
| Packaging | Tape & Reel (TR) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MA3SD29F0L MA3SD29F0L MA3SD29F0LTR ND MA3SD29F0LTRND MA3SD29F0LTR |
