MFG:Avago Technologies US, Inc. (VA) Category:RF and RFID Package Cooled:Original Package D/C:03+
MGA87563, MGA-87563, MGA-87563-TR1 Datasheet download
Category: RF and RFID
MFG: Avago Technologies US, Inc. (VA)
Package Cooled: Original Package
D/C: 03+

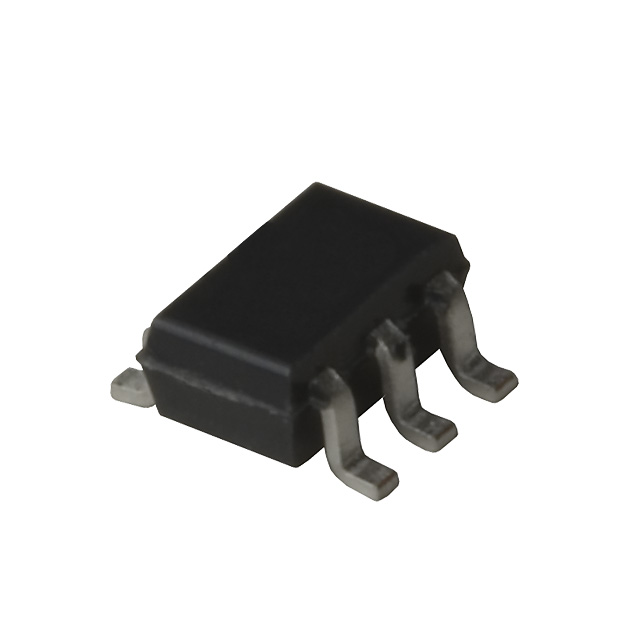

Description: IC AMP MMIC GAAS LNA 3/5V SOT363
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MGA87563
File Size: 121856 KB
Manufacturer: HP [Agilent(Hewlett-Packard)]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MGA-87563
File Size: 98481 KB
Manufacturer: HP [Agilent(Hewlett-Packard)]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MGA-87563-TR1
File Size: 98481 KB
Manufacturer: HP [Agilent(Hewlett-Packard)]
Download : Click here to Download
Agilent's MGA-87563 is an economical, easy-to-use GaAs MMIC amplifier that offers low noise and excellent gain for applications from 0.5 to 4 GHz. Packaged in an ultra-miniature SOT-363 package, it requires half the board space of a SOT-143 package.
With the addition of a simple shunt-series inductor at the input, the device is easily matched to achieve a noise of 1.6 dB at 2.4 GHz. For 2.4 GHz applications and above, the output is well matched to 50 Ohms. Below 2 GHz, gain can be increased by using conjugate matching.
| Symbol | Parameter | Units | Absolute Maximum |
| Vdd | Device Voltage, RF Output to Ground |
V | 6 |
| Vin Vout |
Range of RF Input Voltageto Ground | V | +0.5 -1.0 |
| Pin | CW RF Input Power | dBm | +13 |
| Tj | Junction Temperature | °C | 150 |
| TSTG | Storage Temperature | °C | -65 to 150 |
| Technical/Catalog Information | MGA-87563-TR1 |
| Vendor | Avago Technologies US, Inc. (VA) |
| Category | RF and RFID |
| Package / Case | SC-70-6, SC-88, SOT-323-6, SOT-363 |
| Voltage - Supply | 3V, 5V |
| Current - Supply | 4.5mA |
| Gain | 14dB |
| Frequency | 500MHz ~ 4GHz |
| RF Type | Cellular, GPS, ISM, PCS |
| Packaging | Cut Tape (CT) |
| Noise Figure | 1.6dB |
| P1db | -2dBm |
| Test Frequency | 2GHz |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MGA 87563 TR1 MGA87563TR1 516 1512 1 ND 51615121ND 516-1512-1 |
