MGA-52543

Features: • Lead-free Option Available• Operating frequency: 0.4 GHz ~ 6.0 GHz• Minimum noise figure: 1.61 dB at 1.9 GHz• Associated gain : 15 dB at 1.9 GHz• 1.9 GHz performance tuned for VSWR < 2:1 Noise figure: 1.9 dB Gain: 14 dB P1dB: +17.5 dBm Input IP3: +17.5 ...

product image

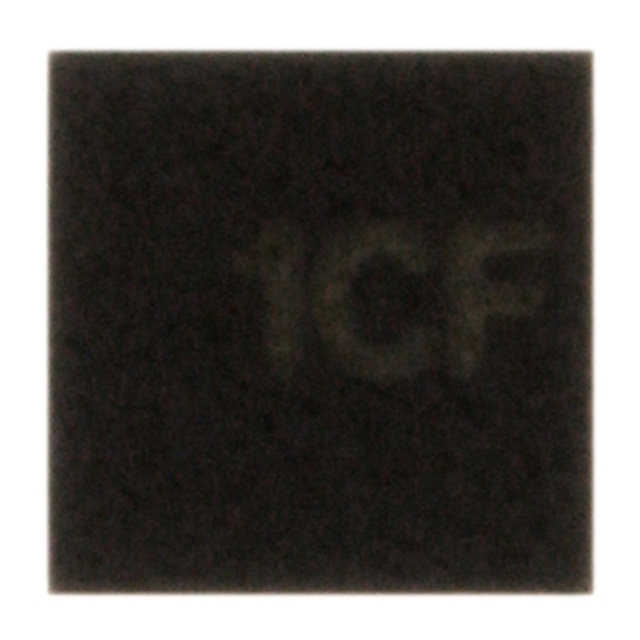

MGA-52543 Picture
See larger image
SeekIC No. : 004419670 Detail

MGA-52543: Features: • Lead-free Option Available• Operating frequency: 0.4 GHz ~ 6.0 GHz• Minimum noise figure: 1.61 dB at 1.9 GHz• Associated gain : 15 dB at 1.9 GHz• 1.9 GHz pe...

MGA-52543 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MGA-52543
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Lead-free Option Available
• Operating frequency: 0.4 GHz ~ 6.0 GHz
• Minimum noise figure: 1.61 dB at 1.9 GHz
• Associated gain : 15 dB at 1.9 GHz
• 1.9 GHz performance tuned for VSWR < 2:1 Noise figure: 1.9 dB Gain: 14 dB P1dB: +17.5 dBm Input IP3: +17.5 dBm
• Single supply 5.0 V operation




Application

• Cellular/PCS base station radio card LNA
• High dynamic range amplifier for base stations, WLL, WLAN, and other applications




Specifications

Symbol Parameter Units Absolute
Maximum
Vd Maximum Input Voltage V ±0.5
Vd Supply Voltage V 7.0
Pd Power Dissipation[2,3] mW 425
Pin CW RF Input Power dBm +20
Tj Junction Temperature °C 160
TSTG Storage Temperature °C -65 to 150
1. Operation of this device above any one of these parameters may cause permanent damage.
2. Bias is assumed at DC quiescent conditions.





Description

Agilent Technologies' MGA-52543 is an economical, easy-to-use GaAs MMIC Low Noise Amplifier (LNA), which is designed for use in LNA and driver stages. While a capable RF/microwave amplifier for any low noise and high linearity 0.4 to 6 GHz application, the LNA focus is Cellular/PCS base stations.

To attain NFmin condition, some simple external matching is required. The MGA-52543 features a calculated NFmin of 1.61 dB and 15 dB associated gain at 1.9 GHz froma cascode stage, feedback FET amplifier. The input and output are partially matched to be near 50 .

For base station radio card unit LNA application where better than 2:1 VSWR is required, a series inductor on the input and another series inductor on the output can be added externally. The resulting Noise Figure of MGA-52543 is typically 1.9 dB with 14 dB Gain at 1.9 GHz. With a single 5.0V supply, the LNA.
