MMG3012NT1, MMG3013NT1, MMG3014NT1

MMG3012NT1, MMG3013NT1, MMG3014NT1 Selling Leads, Datasheet

MFG:Freescale Semiconductor  Category:RF and RFID  Package Cooled:09+  D/C:912

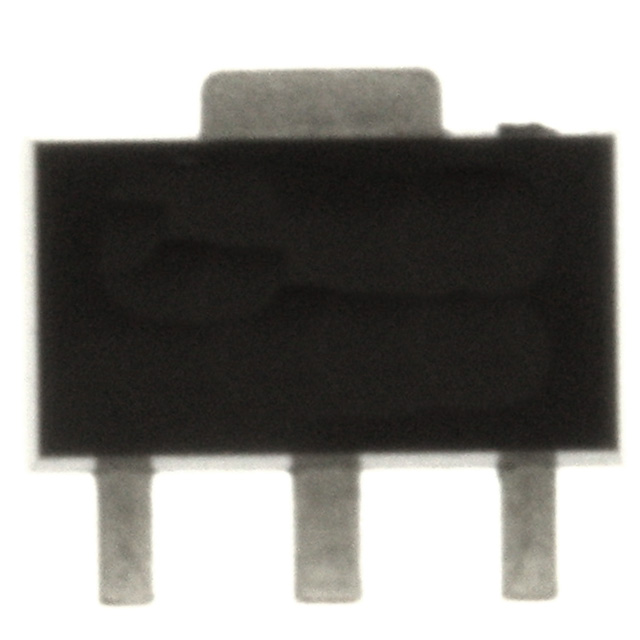

MMG3012NT1 Picture

MMG3012NT1, MMG3013NT1, MMG3014NT1 Datasheet download

Five Points

Part Number: MMG3012NT1

Category: RF and RFID

MFG: Freescale Semiconductor

Package Cooled: 09+

D/C: 912

Description: IC AMP RF GP 4000MHZ 5V SOT-89

Price Break

1000

Unit Price

1.25490

Extended Price

1254.90

(All prices are in USD) Prices for reference only
Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

MMG3012NT1 Suppliers

More MMG3012NT1 Suppliers

Select All

  • MMG3003NT1

  • Vendor: FREESCALE Pack: SOT89 D/C: 10+& Qty: 100 Note: new and original,in stock  Adddate: 2024-03-28
  • Inquire Now
  • QS ELECTRONIC TECHNOLOGY LIMITED   China
    Contact: Ms.snow   MSN:sales-qs@hotmail.com
    Tel: 0086-755-82584996
    Fax: 0086-755-82541116
    (268)

About MMG3012NT1

PDF/DataSheet Download

Datasheet: MMG3012NT1

File Size: 224301 KB

Manufacturer: FREESCALE

Download : Click here to Download

Related PDF Download

Related Part Number

MMG3013NT1 Suppliers

More MMG3013NT1 Suppliers

Select All

  • MMG3003NT1

  • Vendor: FREESCALE Pack: SOT89 D/C: 10+& Qty: 100 Note: new and original,in stock  Adddate: 2024-03-28
  • Inquire Now
  • QS ELECTRONIC TECHNOLOGY LIMITED   China
    Contact: Ms.snow   MSN:sales-qs@hotmail.com
    Tel: 0086-755-82584996
    Fax: 0086-755-82541116
    (268)

About MMG3013NT1

PDF/DataSheet Download

Datasheet: MMG3013NT1

File Size: 443350 KB

Manufacturer: FREESCALE

Download : Click here to Download

Related PDF Download

Related Part Number

MMG3014NT1 Suppliers

More MMG3014NT1 Suppliers

Select All

  • MMG3003NT1

  • Vendor: FREESCALE Pack: SOT89 D/C: 10+& Qty: 100 Note: new and original,in stock  Adddate: 2024-03-28
  • Inquire Now
  • QS ELECTRONIC TECHNOLOGY LIMITED   China
    Contact: Ms.snow   MSN:sales-qs@hotmail.com
    Tel: 0086-755-82584996
    Fax: 0086-755-82541116
    (268)

About MMG05N60D

PDF/DataSheet Download

Datasheet: MMG05N60D

File Size: 138271 KB

Manufacturer: ONSEMI [ON Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

MMG3012NT1 Parameters

Technical/Catalog InformationMMG3012NT1
VendorFreescale Semiconductor
CategoryRF and RFID
Package / CaseSOT-89-3, TO-243-3
Voltage - Supply5V
Current - Supply82mA
Gain19dB
Frequency0Hz ~ 6GHz
RF TypeCellular, PCS, PHS, WLL
PackagingTape & Reel (TR)
Noise Figure3.8dB
P1db18.5dBm
Test Frequency900MHz
Drawing Number375; 1514-02; ; 4
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MMG3012NT1
MMG3012NT1
MMG3012NT1TR ND
MMG3012NT1TRND
MMG3012NT1TR

MMG3012NT1 Maximum Ratings

Rating Symbol Value Unit
Supply Voltage (2) VCC 7 v
Supply Current (2) ICC 300 mA
RF Input Power Pin 10 dBm
Storage Temperature Range Tstg -65 to +150 °C
Junction Temperature (3) TJ 150 °C

MMG3012NT1 Features

• Frequency: 0 - 6000 MHz
• P1dB: 18.5 dBm @ 900 MHz
• Small-Signal Gain: 19 dB @ 900 MHz
• Third Order Output Intercept Point: 34 dBm @ 900 MHz
• Single 5 Volt Supply
• Internally Matched to 50 Ohms
• Low Cost SOT-89 Surface Mount Package
• Pb-Free and RoHS Compliant
• In Tape and Reel. T1 Suffix = 1000 Units per 12 mm, 7 inch Reel

MMG3013NT1 Parameters

Technical/Catalog InformationMMG3013NT1
VendorFreescale Semiconductor
CategoryRF and RFID
Package / CaseSOT-89-3, TO-243-3
Voltage - Supply5V
Current - Supply90mA
Gain20dB
Frequency0Hz ~ 6GHz
RF TypeCellular, PCS, PHS, WLL
PackagingTape & Reel (TR)
Noise Figure-
P1db-
Test Frequency-
Drawing Number375; 1514-02; ; 4
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MMG3013NT1
MMG3013NT1

MMG3014NT1 Parameters

Technical/Catalog InformationMMG3014NT1
VendorFreescale Semiconductor
CategoryRF and RFID
Package / CaseSOT-89-3, TO-243-3
Voltage - Supply5V
Current - Supply135mA
Gain19.5dB
Frequency4GHz
RF Type-
PackagingTape & Reel (TR)
Noise Figure5.7dB
P1db25dBm
Test Frequency900MHz
Drawing Number375; 1514-02; ; 4
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MMG3014NT1
MMG3014NT1
MMG3014NT1TR ND
MMG3014NT1TRND
MMG3014NT1TR
