MOC70P1, MOC-70P2, MOC70P3 Datasheet download
Category: Sensors, Transducers
MFG: Fairchild Optoelectronics Group
Package Cooled: N/A
D/C: O9+
Description: SWITCH INTERRUPTER PHOTOTRANS
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MOC70P1
File Size: 82722 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MOC119
File Size: 91095 KB
Manufacturer: MOTOROLA [Motorola, Inc]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MOC70P3
File Size: 82722 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | MOC70P1 |
| Vendor | Fairchild Optoelectronics Group |
| Category | Sensors, Transducers |
| Sensing Distance | 0.2" (5.08mm) |
| Sensing Method | Transmissive |
| Package / Case | PCB Mount |
| Output Type | Phototransistor |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MOC70P1 MOC70P1 |

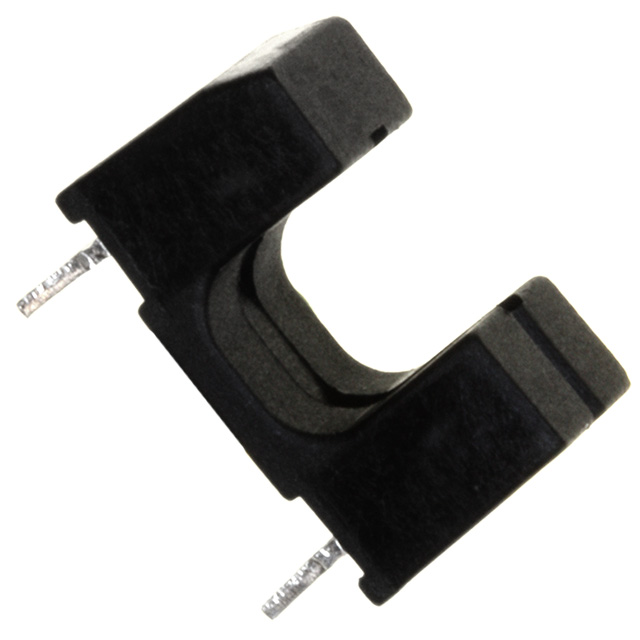

The MOC70PX consists of an infrared light emitting diode coupled to an NPN silicon phototransistor packaged into an injection molded housing. The housing is designed for wide gap, non contact sensing.
|
