MFG:ON Semiconductor Category:Discrete Semiconductor Products Package Cooled:N/A D/C:09+
MPS45WGW, MPS5172, MPS5179 Datasheet download
Category: Discrete Semiconductor Products
MFG: ON Semiconductor
Package Cooled: N/A
D/C: 09+
Description: TRANS NPN RF SS 12V TO92
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MPS06
File Size: 87865 KB
Manufacturer: ROHM
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MPS5172
File Size: 31116 KB
Manufacturer: SAMSUNG [Samsung semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MPS5179
File Size: 98471 KB
Manufacturer: SAMSUNG [Samsung semiconductor]
Download : Click here to Download

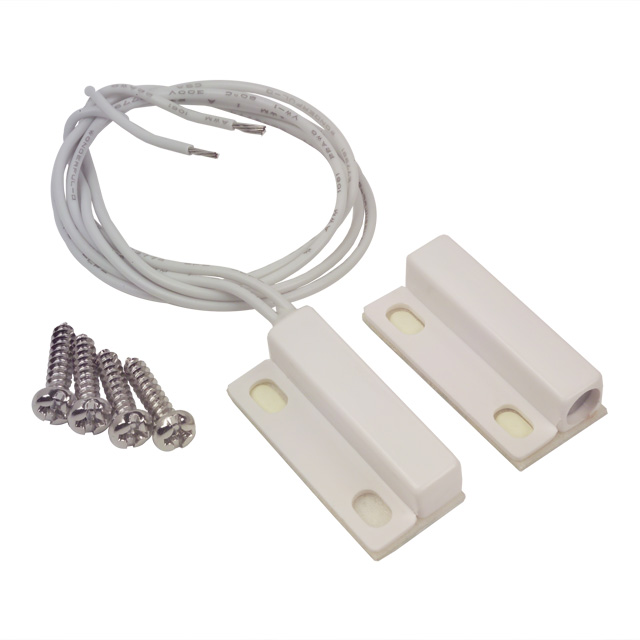

| Technical/Catalog Information | MPS45WGW |
| Vendor | C&K Components |
| Category | Switches |
| Type | Molded Body |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Circuit | SPST-NO |
| Switching Power (Max) | 3W |
| Switching Voltage (DC) (Max) | 30V |
| Switching Current (DC) (Max) | 300mA |
| Magnet | Included |
| Must Operate | 25.40mm |
| Must Release | 33.02mm |
| Packaging | Bulk |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MPS45WGW MPS45WGW CKN6004 ND CKN6004ND CKN6004 |
| Technical/Catalog Information | MPS5172 |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 25V |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 625mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 1mA, 10mA |
| Frequency - Transition | - |
| Current - Collector Cutoff (Max) | 100nA |
| Mounting Type | Through Hole |
| Package / Case | TO-92-3, TO-226AA (Straight Leads) |
| Packaging | Bulk |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MPS5172 MPS5172 MPS5172OS ND MPS5172OSND MPS5172OS |
| Technical/Catalog Information | MPS5179 |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Frequency - Transition | 2GHz |
| Noise Figure (dB Typ @ f) | 5dB @ 200MHz |
| Current - Collector (Ic) (Max) | 50mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25 @ 3mA, 10V |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| Gain | 15dB |
| Power - Max | 500mW |
| Compression Point (P1dB) | - |
| Package / Case | TO-92-3, TO-226AA (Straight Leads) |
| Packaging | Bulk |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MPS5179 MPS5179 MPS5179OS ND MPS5179OSND MPS5179OS |
| Rating | Symbol | Value | Unit |
| Collector−Emitter Voltage | VCEO | 12 | Vdc |
| Collector−Base Voltage | VCBO | 20 | Vdc |
| Emitter −Base Voltage | VEBO | 2.5 | Vdc |
| Collector Current − Continuous | IC | 50 | mAdc |
| Total Device Dissipation @ TA = 25°C Derate above 25°C |
PD | 200 1.14 |
W mW/°C |
| Total Device Dissipation @ TC = 25°C Derate above 25°C |
PD | 300 1.71 |
W mW/°C |
| Storage Temperature Range | Tstg | −55 to +150 | °C |
