MSA-3111-TR1G, MSA-3135, MSA-3135-TR1 Datasheet download
Category: RF and RFID
MFG: Avago Technologies US, Inc. (VA)
Package Cooled: Original Package
D/C: 08+/09+

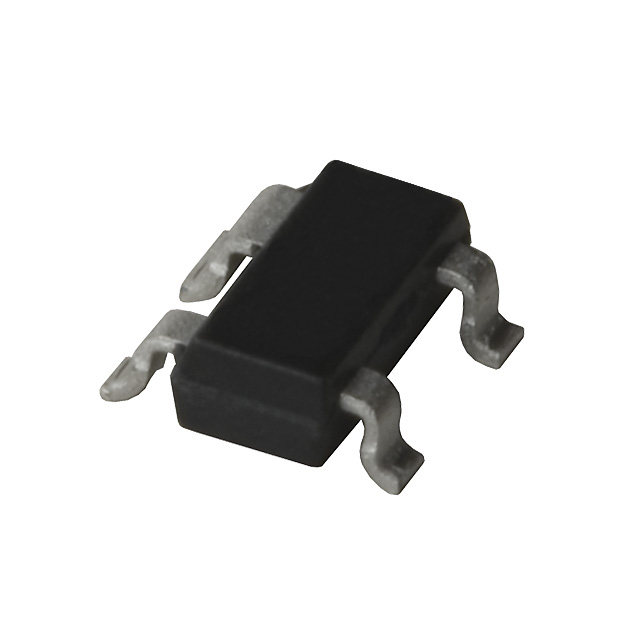

Description: IC AMP RFIC BIPOLAR 50MA SOT-143
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MSA002
File Size: 537342 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MSA-3135
File Size: 107032 KB
Manufacturer: HP [Agilent(Hewlett-Packard)]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MSA002
File Size: 537342 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
| Technical/Catalog Information | MSA-3111-TR1G |
| Vendor | Avago Technologies US, Inc. (VA) |
| Category | RF and RFID |
| Package / Case | SOT-143 |
| Voltage - Supply | 4V ~ 6V |
| Current - Supply | 29mA |
| Gain | 18.4dB |
| Frequency | 0Hz ~ 500MHz |
| RF Type | ISM, PCS, WLL, 802.16/WiMax |
| Packaging | Cut Tape (CT) |
| Noise Figure | 3.5dB |
| P1db | 9dBm |
| Test Frequency | 1GHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MSA 3111 TR1G MSA3111TR1G 516 1595 1 ND 51615951ND 516-1595-1 |
The MSA-31XX series are highperformance silicon bipolar RFIC amplifiers designed to be cascadable in 50 systems. he stability factor of K > 1 contributes to easy cascading in numerous narrow and broadband IF and RF commercial and industrial applications.
The MODAMP MSA series is fabricated using a 10 GHz fT, 25 GHz FMAX, silicon bipolar RFIC process which utilizes nitride selfalignment, ion implantation, and gold metallization to achieve excellent uniformity, performance, and reliability. The use of an external bias resistor for temperature and current stability also allows bias flexibility.
Package options include, theindustry standard plastic surface mount SOT-143 package, the 100 mil surface mountable hermetic ceramic package, the 85 mil plastic microstripline package, and the 85 mil surface mountable plastic microstripline package.
|
MSAParameter |
MSA- 3111 |
MSA- 3135 |
MSA-3185, -3186 |
|
Device Current |
50 mA |
60 mA |
60 mA |
|
Power Dissipation[2,3] |
250 mW[3a] |
325 mW[3b] |
325 mW[3c] |
|
RF Input Power |
+13 dBm |
+13 dBm |
+13 dBm |
|
Junction Temperature |
150°C |
200°C |
150°C |
| Storage Temperature |
-65 to 150°C |
-65 to 200°C |
-65 to 150°C |
|
Thermal Resistance: jc |
500°C/W |
155°C/W |
115°C/W |
