MFG:ON Semiconductor Category:Discrete Semiconductor Products Package Cooled:TO-220 2 LEAD STANDARD D/C:08+/09+

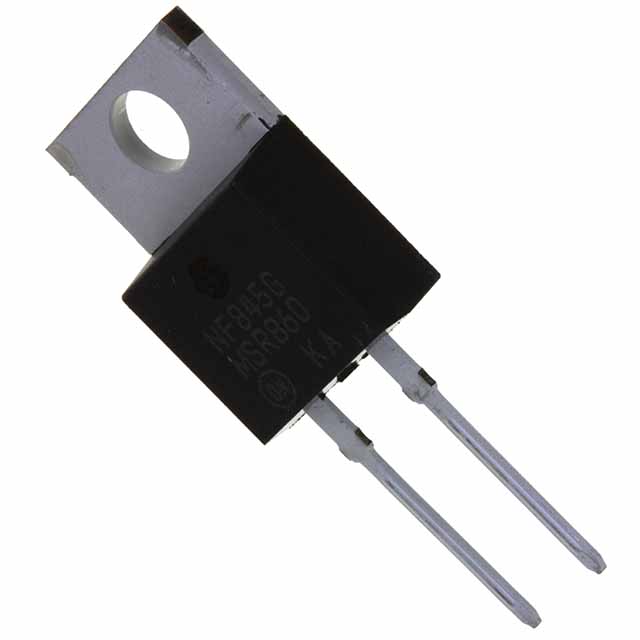

MSR-52N, MSR860, MSR860G Datasheet download
Category: Discrete Semiconductor Products
MFG: ON Semiconductor
Package Cooled: TO-220 2 LEAD STANDARD
D/C: 08+/09+
Description: DIODE STD REC 8A 600V TO220AC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MSR003
File Size: 69558 KB
Manufacturer: FILTRONIC [Filtronic Compound Semiconductors]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MSR860
File Size: 137569 KB
Manufacturer: MOTOROLA [Motorola, Inc]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MSR003
File Size: 69558 KB
Manufacturer: FILTRONIC [Filtronic Compound Semiconductors]
Download : Click here to Download
|
Rating |
Symbol |
Value |
Unit |
| Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage |
VRRM VRWM VR |
600 |
V |
| Average Rectified Forward Current (At Rated VR, TC = 125°C) |
IO |
8.0 |
A |
| Peak Repetitive Forward Current (At Rated VR, Square Wave, 20 kHz, TC = 125°C) |
IFRM |
16 |
A |
| NonRepetitive Peak Surge Current (Surge applied at rated load conditions, halfwave, single phase, 60 Hz) |
IFSM |
100 |
A |
| Storage / Operating Case Temperature |
Tstg, TC |
65 to 150 |
°C |
| Operating Junction Temperature |
TJ |
65 to 150 |
°C |
| Technical/Catalog Information | MSR860G |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 1.7V @ 8A |
| Reverse Recovery Time (trr) | 120ns |
| Current - Reverse Leakage @ Vr | 10A @ 600V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | TO-220-2 (Straight Leads) |
| Packaging | Tube |
| Capacitance @ Vr, F | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MSR860G MSR860G MSR860GOS ND MSR860GOSND MSR860GOS |
